Toyota CAMRY 后门板和后门玻璃 — Figure 6705

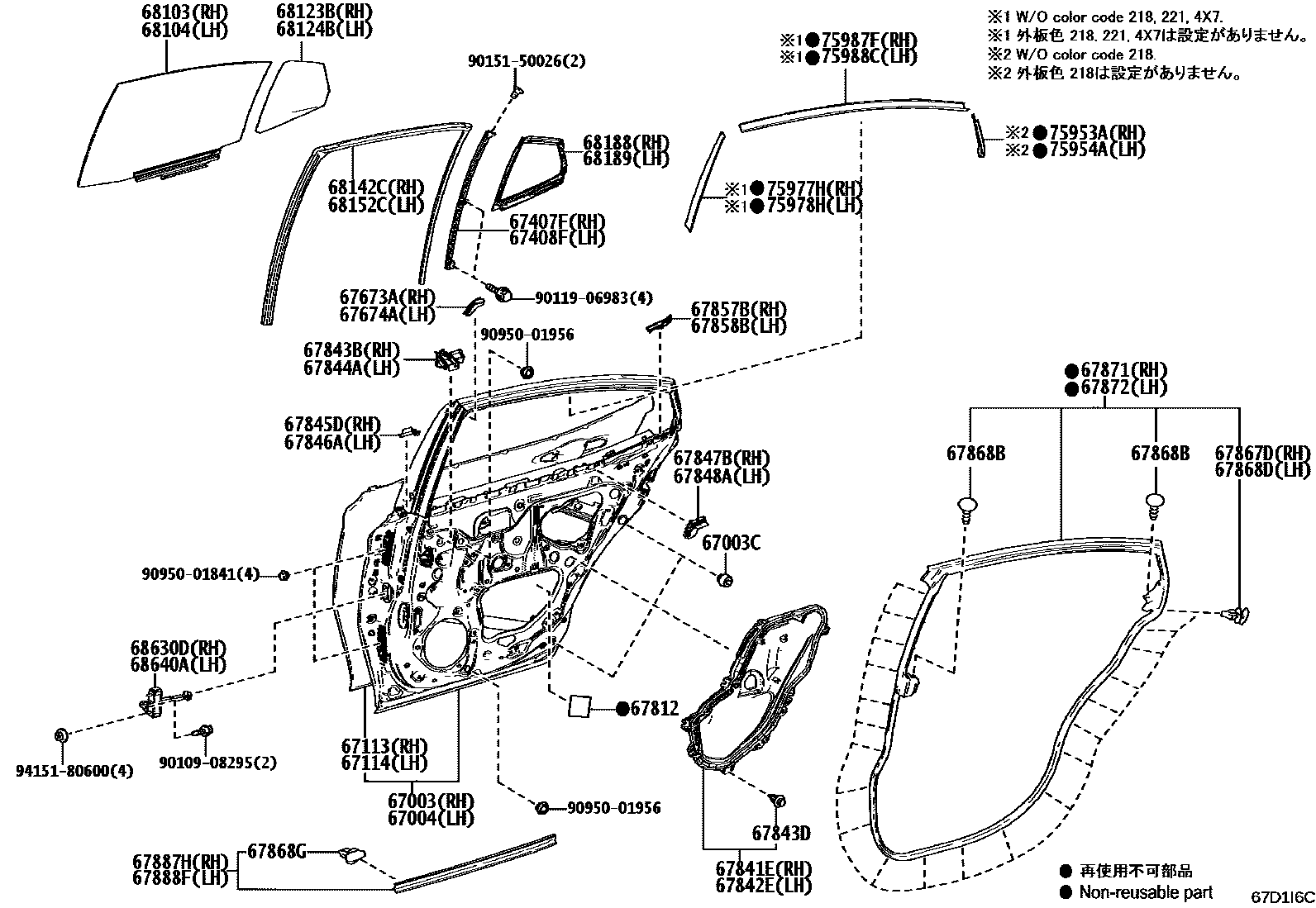

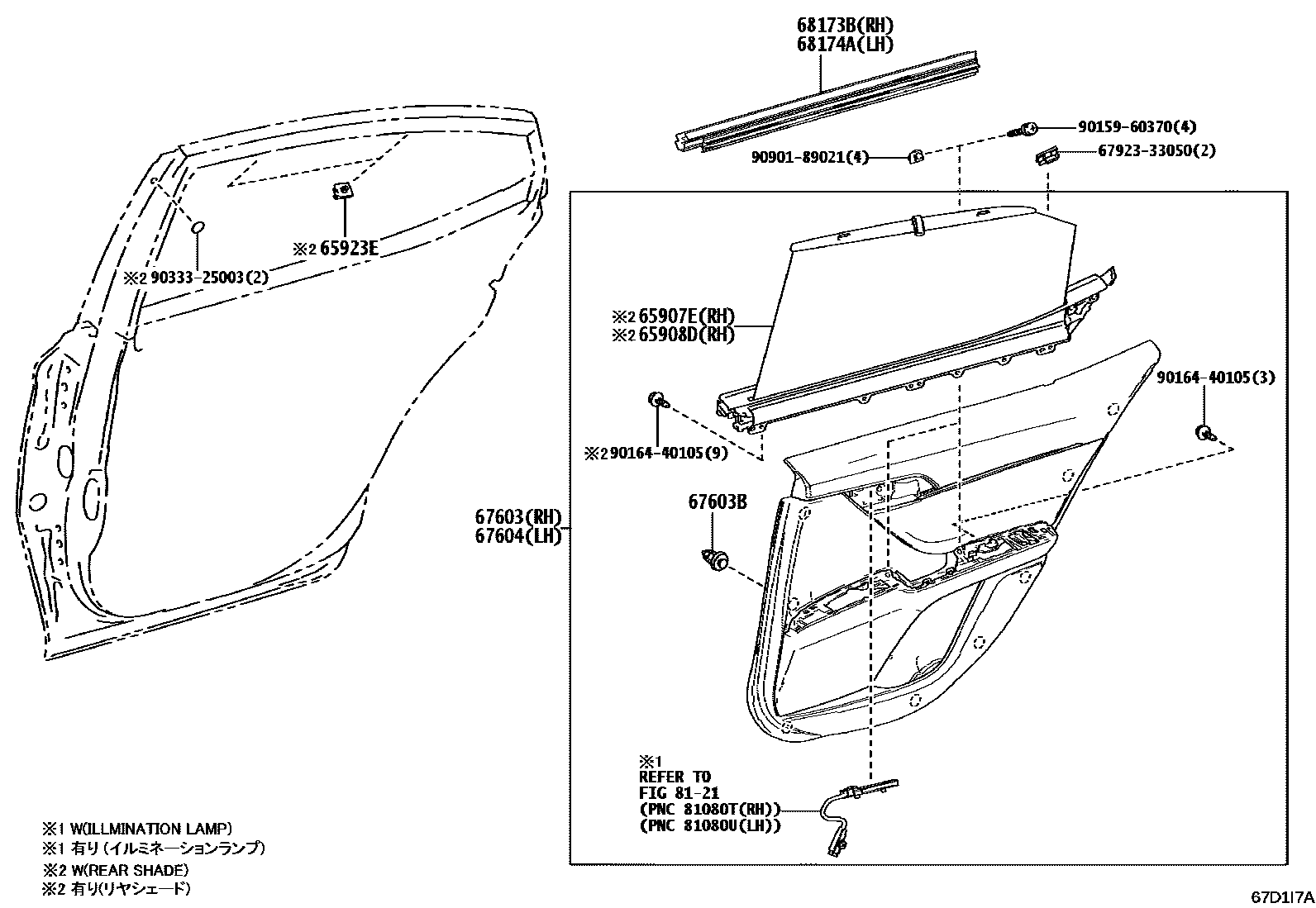

Toyota CAMRY EPC diagram 6705, 后门板和后门玻璃, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65923E | curtain hooks | 65923-33040 |
| 67003 | Right rear door panel sub-assembly | 67003-33260 · 67003-33320 |
| 67003C | Rear door panel cushion | 90541-09143 |
| 67004 | Left rear door panel sub-assembly | 67004-33290 · 67004-33320 |
| 67113 | Right rear door outer panel | 67113-33160 |
| 67114 | Left rear door outer panel | 67114-33160 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-33170 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-33180 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67673A | Right rear door frame decorative strip | 67673-33150 |
| 67674A | Left rear door frame decorative strip | 67674-33150 |
| 67812 | Rear door silencer pad | 67811-12180 |
| 67841E | Right rear door access hole cover | 67841-33140 |
| 67842E | Left rear door access hole cover | 67842-33140 |
| 67843B | Right rear door No. 2 access hole cover | 67843-33051 |
| 67843D | Rear door access hole clip | 90467-09206 |
| 67844A | Left rear door No. 2 access hole cover | 67844-33051 |
| 67845D | Right rear door front outer seal | 67845-33020 |
| 67846A | Left rear door front outer seal | 67846-33030 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-33030 |
| 67848A | No. 1 left rear door ventilator seal | 67848-33020 |
| 67857B | Right rear door panel protector | 67857-33070 |
| 67858B | Left rear door panel protector | 67858-33070 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868B | Door glass seal strip clip (for rear door) | 67868-30030 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67868G | door seal fixings | 67867-52030 |
| 67871 | Right rear door sealing strip | 67871-33160 |
| 67872 | Left rear door sealing strip | 67872-33160 |
| 67887H | Right rear door seal No. 2 | 67887-33050 |
| 67888F | Left rear door seal No. 2 | 67887-33050 |
| 68103 | Right rear door glass sub-assembly | 68103-33300 · 68103-33310 |
| 68104 | Left rear door glass sub-assembly | 68104-33300 · 68104-33310 |
| 68123B | Right rear door corner window glass | 68123-33290 · 68123-33300 |
| 68124B | Left rear door corner window glass | 68124-33290 · 68124-33300 |
| 68142C | Right rear door glass lift slot | 68142-33160 |
| 68152C | Left rear door glass lift slot | 68152-33160 |
| 68173B | Right rear door glass inner sealing strip | 68173-33101 |
| 68174A | Left rear door glass inner sealing strip | 68174-33101 |
| 68188 | Right rear door corner window seal | 68188-33110 |
| 68189 | Left rear door corner window seal | 68189-33110 |
| 68630D | Right rear door opening limiter assembly | 68630-33112 |
| 68640A | Left rear door opening limiter assembly | 68630-33112 |
| 75953A | Inner right rear light-shielding film | 75953-33030 |
| 75954A | Inner left rear light-shielding film | 75954-33030 |
| 75977H | Right rear door outer lower trim strip | 75977-33040 |
| 75978H | Left rear door outer lower trim strip | 75978-33040 |
| 75987F | Right rear door outer trim | 75987-33130 · 75987-33140 |
| 75988C | Left rear door outer trim | 75988-33130 · 75988-33140 |
