Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105

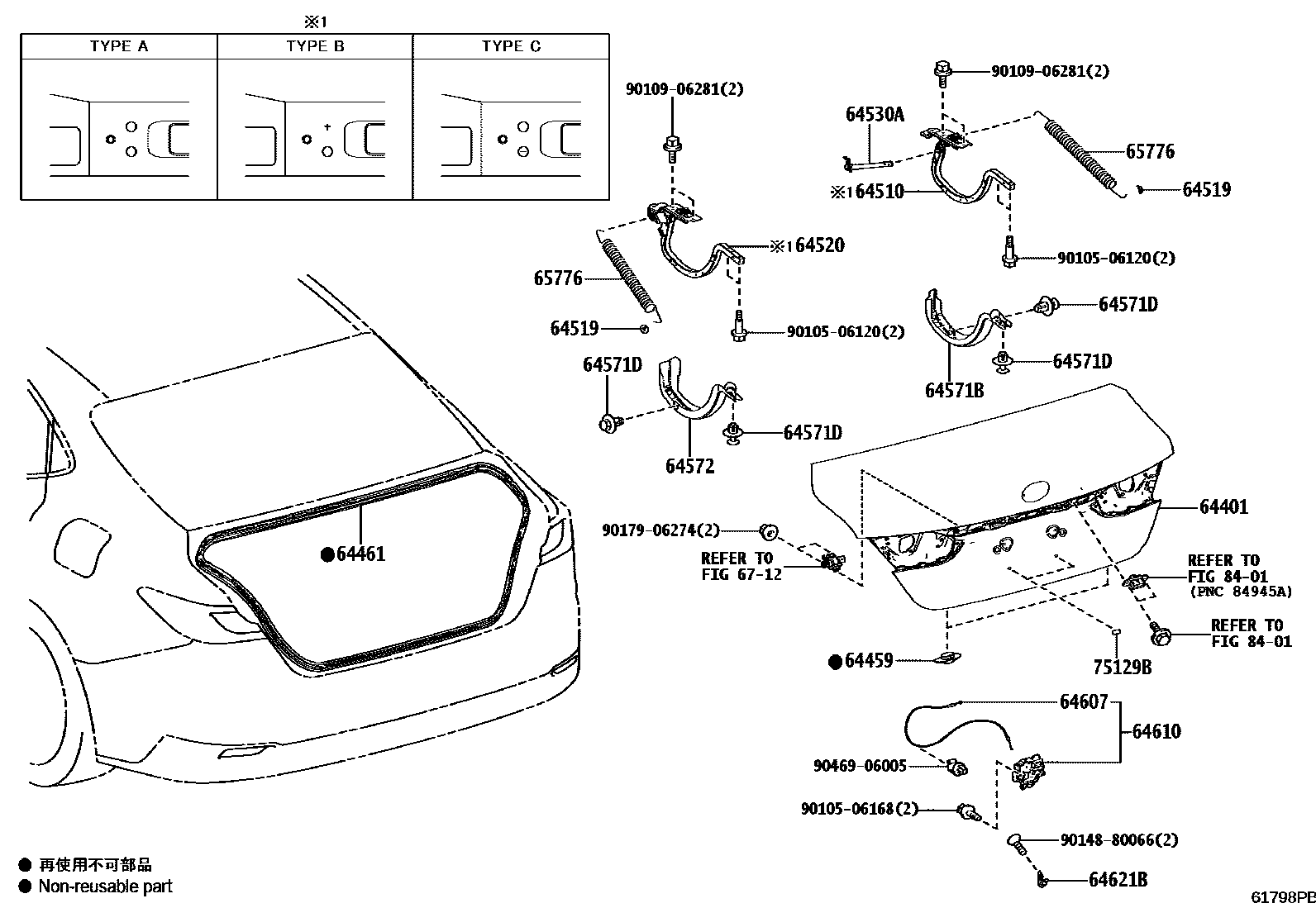

Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64401 | Trunk door panel sub-assembly | 64401-33A40 |
| 64459 | Trunk door cushion | 64459-33030 |
| 64461 | Trunk door seal | 64461-33120 |
| 64510 | Trunk door right hinge assembly | 64510-33181 · 64510-33191 · 64510-33201 |
| 64519 | Trunk door hinge bracket bushing | 69358-24010 |
| 64520 | Trunk door left hinge assembly | 64520-33071 · 64520-33081 · 64520-33091 |
| 64530A | Trunk door bracket assembly | 64530-0W320 |
| 64571B | Trunk door right hinge cover | 64571-33160 |
| 64571D | Catch (for trunk door hinge cover) | 90467-07215 |
| 64572 | Trunk door left hinge cover | 64572-33050 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-33210 |
| 64610 | Trunk door lock assembly | 64600-33240 |
| 64621B | Trunk door latch | 64621-33030 |
| 65776 | Rear door support rod spring | 65776-33050 |
| 75129B | rear license plate cushion | 75129-13020 |
