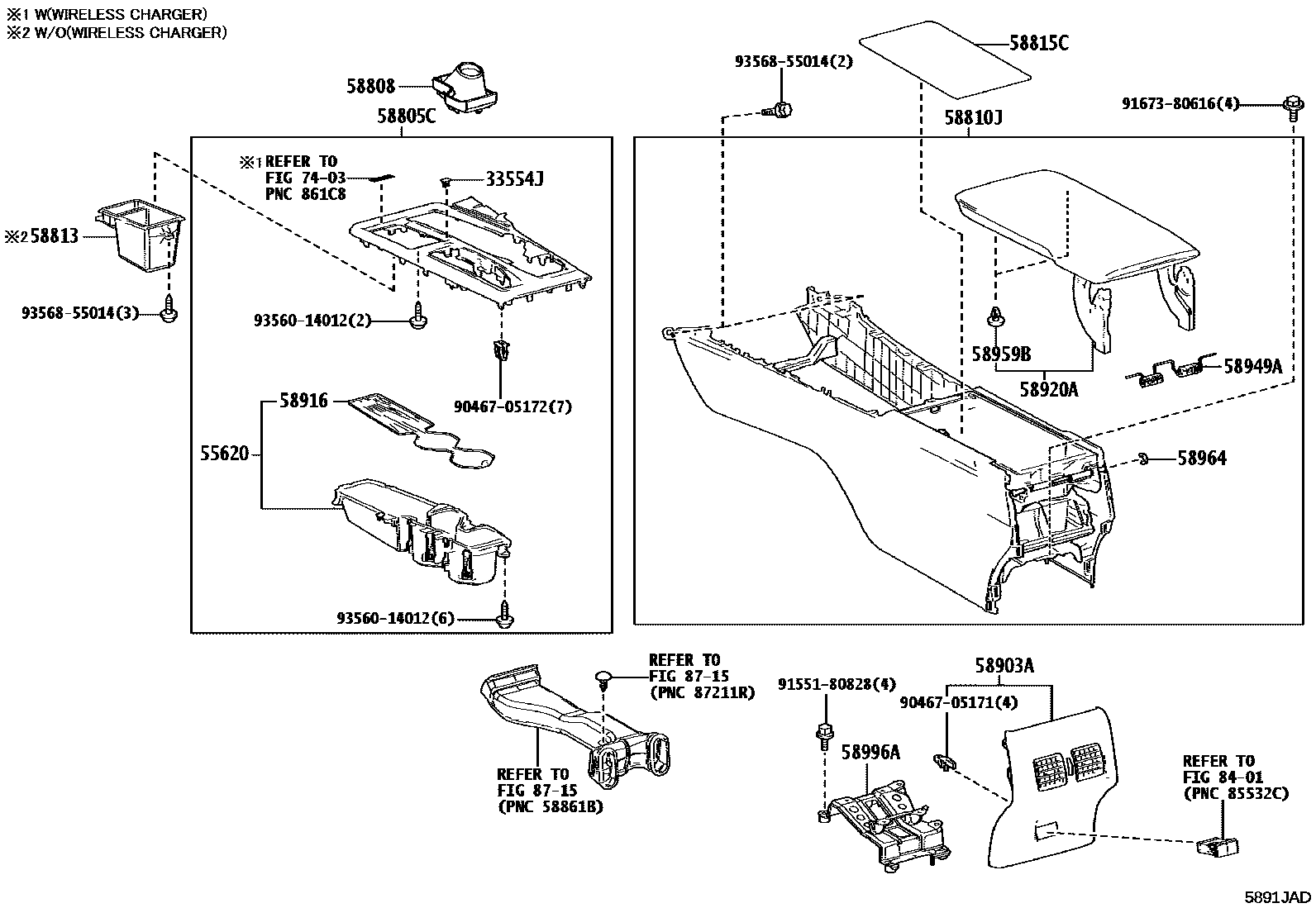

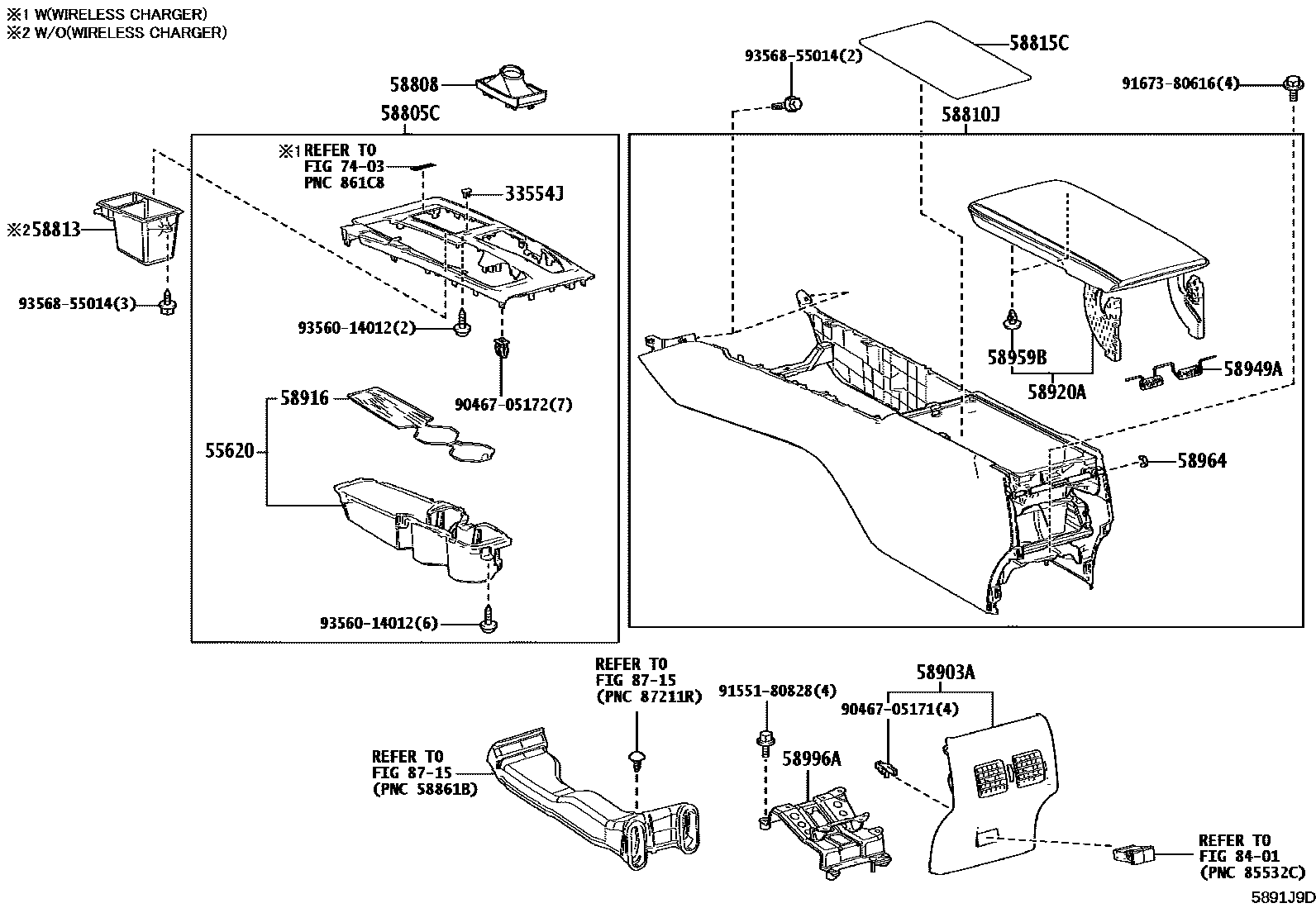

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554J | Shift lock release button cover | 33554-48090 |
| 55620 | Dashboard cup holder assembly | 55620-33420 · 55620-33520 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-33E30 · 58805-33E40 · 58805-33E50 · 58805-33E60 · 58805-33E70 |
| 58813 | Upper armrest box | 58813-33090 |
| 58815C | Armrest box felt pad | 58815-33230 |
| 58916 | Armrest box bottom pad | 58916-33180 · 58916-33190 |
| 58949A | Armrest box mounting bracket spring | 58949-33080 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58964 | Armrest box cover No. 1 stop | 58964-33040 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-33101 |
