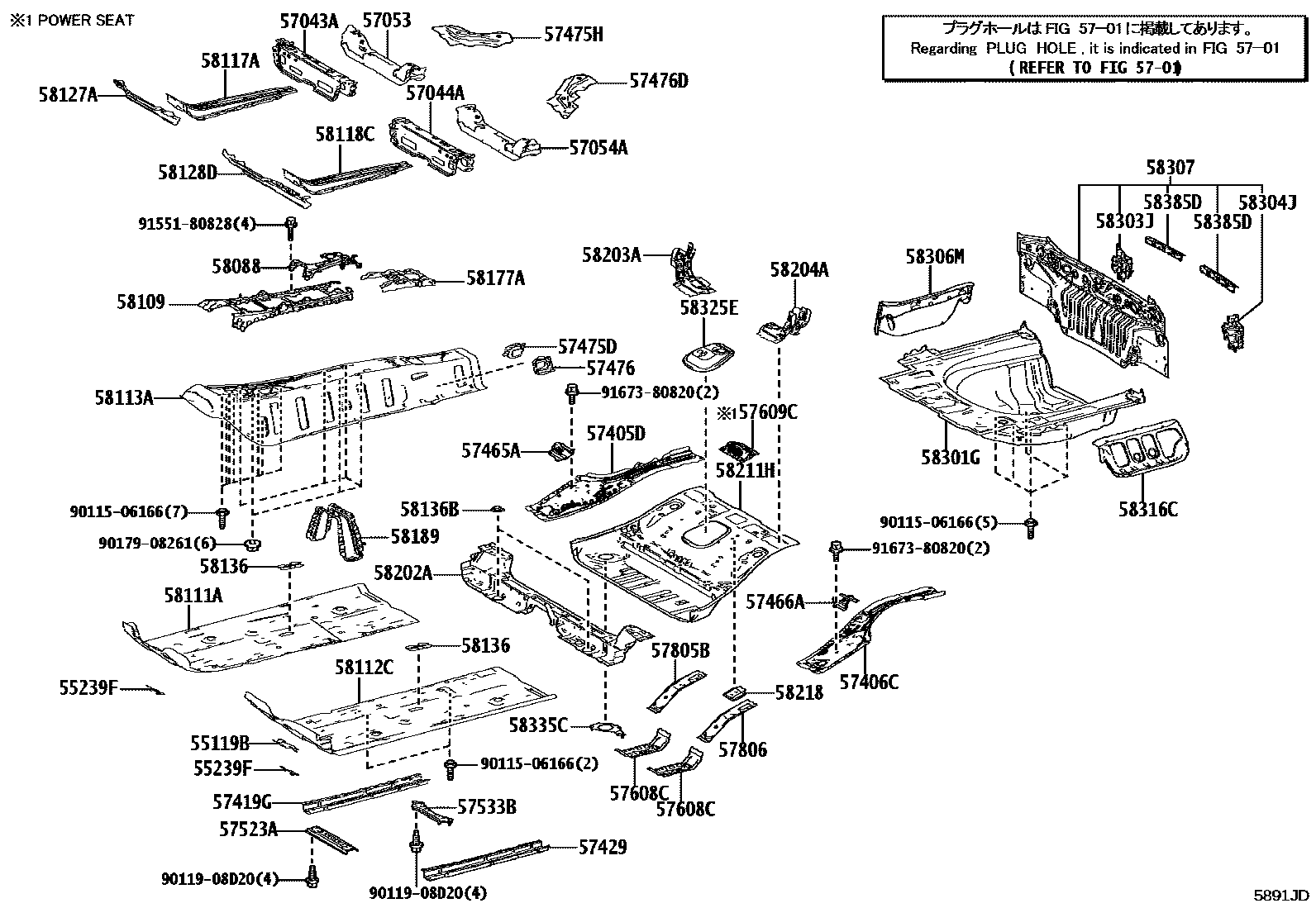

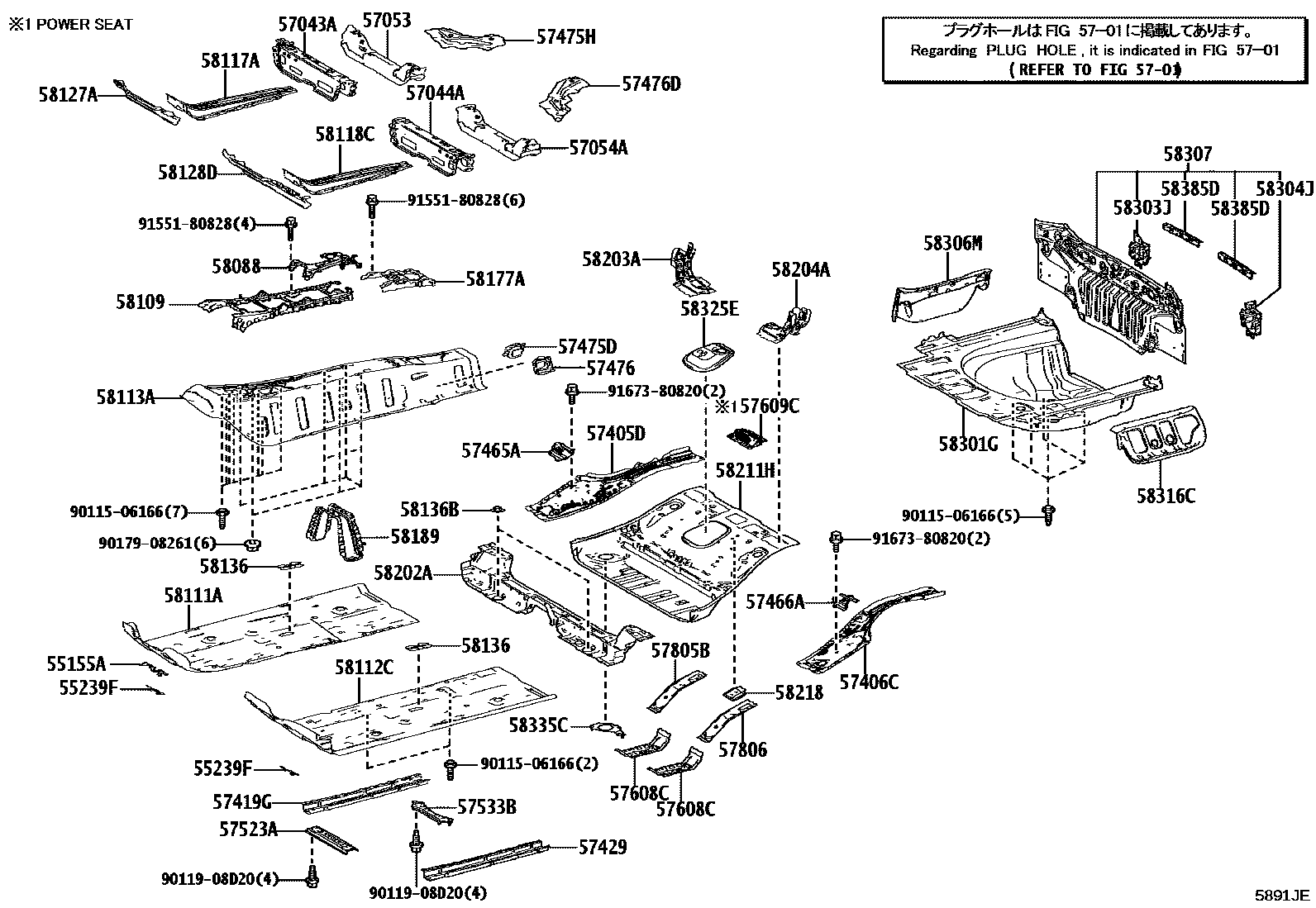

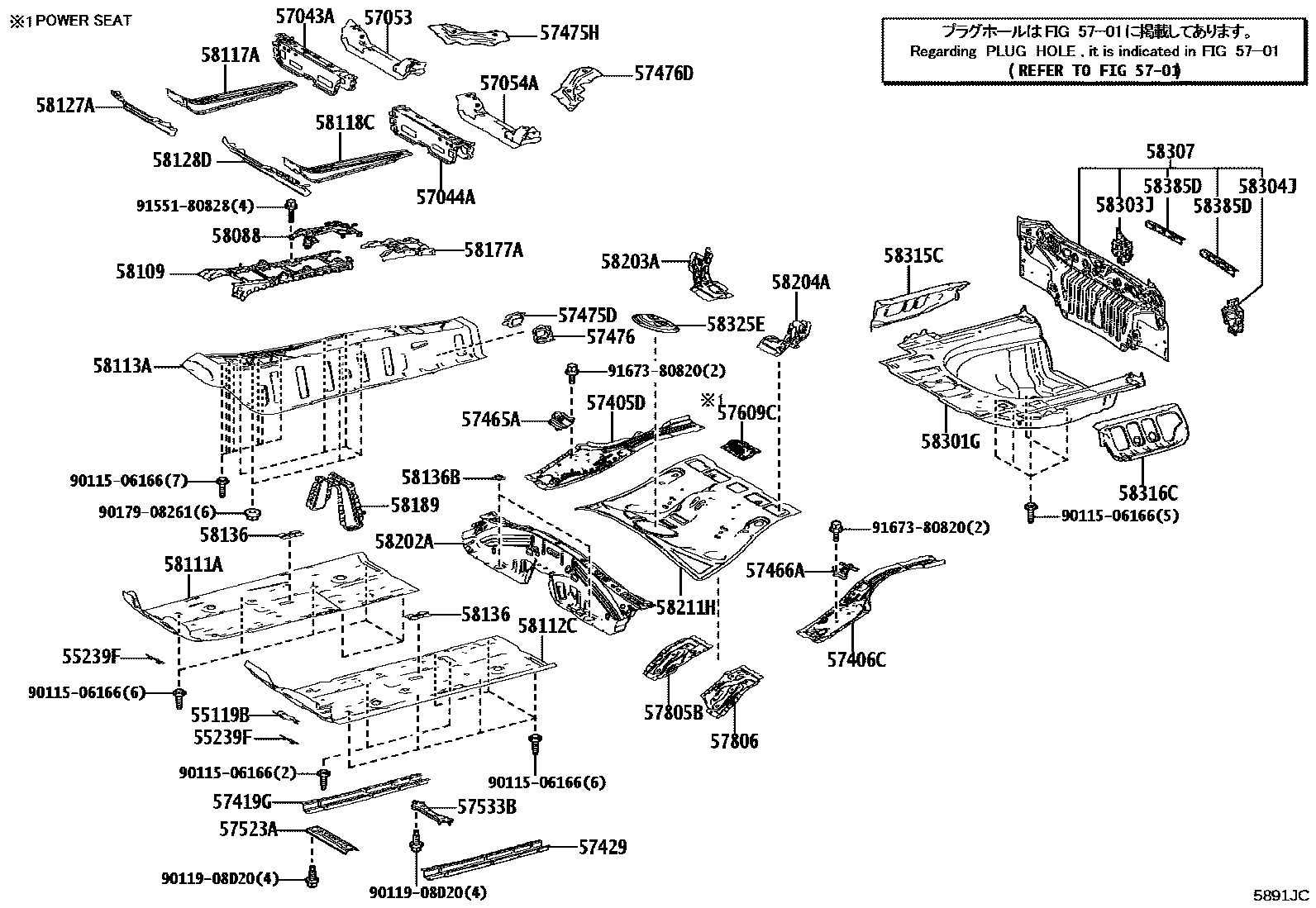

Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801
Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55119B | Left front apron extension | 55119-33030 |
| 55155A | accelerator pedal bracket | 55155-33030 |
| 55239F | No. 3 insulation pad for front wall panel | 55239-33030 |
| 57043A | Right front longitudinal beam rear reinforcement sub-assembly | 57043-33080 |
| 57044A | Left front longitudinal beam rear reinforcement sub-assembly | 57044-33080 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-33080 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-33120 |
| 57405D | Center floor right longitudinal beam sub-assembly | 57405-33040 |
| 57406C | Center floor left longitudinal beam sub-assembly | 57406-33040 |
| 57419G | Front floor right rear lower reinforcement | 57419-33080 |
| 57429 | Left rear reinforcement under front floor | 57419-33080 |
| 57465A | Center floor right beam corner panel | 57465-33021 |
| 57466A | Center floor left transom corner panel | 57466-33010 |
| 57475D | Front floor right cross member panel | 57475-33020 |
| 57475H | PLAQUE DE TRAVERSE DROITE NO.2 DE PLANCHER AVANT | 57457-33040 |
| 57476 | Front floor left cross member panel | 57476-33020 |
| 57476D | PLAQUE DE TRAVERSE GAUCHE NO.2 DE PLANCHER AVANT | 57458-33030 |
| 57523A | Central floor beam bracket | 57523-33010 |
| 57533B | Front floor center bracket | 57533-33040 |
| 57608C | Fuel tank mounting bracket sub-assembly | 57608-33060 |
| 57609C | Rear floor No. 5 cross member sub-assembly | 57609-33040 |
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-33020 · 57805-33030 |
| 57806 | Left seat belt anchor reinforcement sub-assembly | 57805-33030 · 57806-33020 |
| 58088 | Floor-mounted shift link bracket sub-assembly | 58088-33030 · 58088-33040 |
| 58109 | Instrument panel bracket mounting bracket sub-assembly | 58109-33011 |
| 58111A | Front floor right bottom panel | 58111-33130 |
| 58112C | Front floor left bottom panel | 58112-33070 |
| 58113A | front floor center panel | 58113-33050 |
| 58117A | Front floor right reinforcement | 58117-33040 |
| 58118C | Front floor left reinforcement | 58117-33010 |
| 58127A | Front cross member to front panel beam right reinforcement | 58127-33070 |
| 58128D | Front cross member to front panel beam left reinforcement | 58128-33060 |
| 58136 | Front floor hole cover | 58136-33010 |
| 58136B | Center floor hole cover | 58136-33020 |
| 58177A | Front floor right extension | 58177-33011 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33080 |
| 58202A | Center floor front floor sub-assembly | 58202-33030 · 58202-33040 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-33040 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-33040 |
| 58211H | central floor base | 58211-33191 · 58211-33201 |
| 58218 | seat floor | 58218-33040 |
| 58301G | Rear floor sub-assembly | 58301-33907 · 58301-33912 |
| 58303J | Rear bumper arm right side bracket reinforcement sub-assembly | 58303-33040 |
| 58304J | Rear bumper arm left bracket reinforcement sub-assembly | 58304-33030 |
| 58306M | Rear floor side panel sub-assembly | 58306-33040 |
| 58307 | Body lower back panel sub-assembly | 58307-33180 |
| 58315C | Rear floor right side panel extension | 58315-33010 |
| 58316C | Rear floor left side panel extension | 58316-33030 |
| 58325E | Rear floor access hole cover | 58325-33080 · 58325-33090 |
| 58335C | Front floor right panel | 58335-33030 |
| 58385D | Rear bumper cover bracket | 58385-33060 |
