Toyota CAMRY 仪表板和手套箱 — Figure 5501

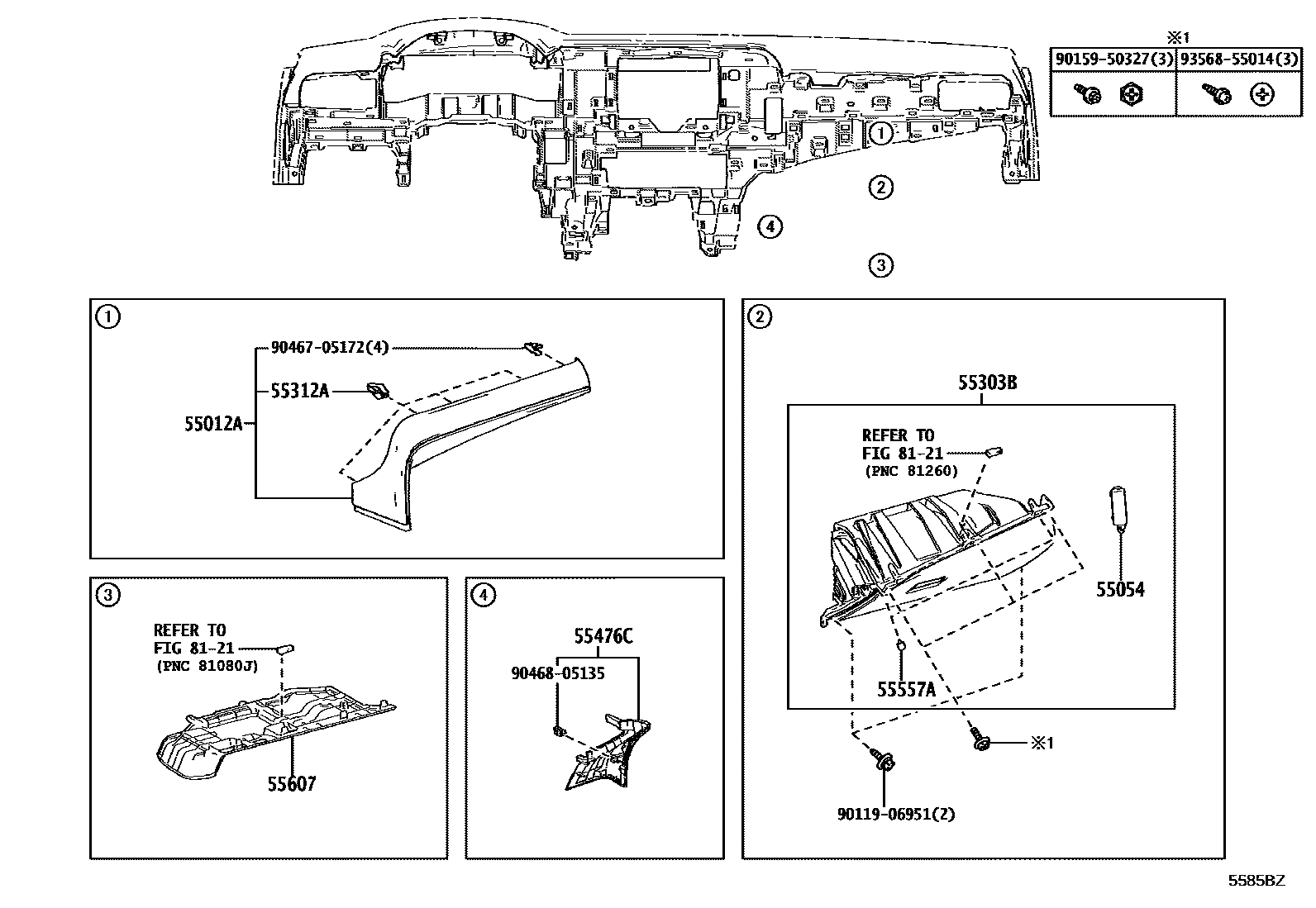

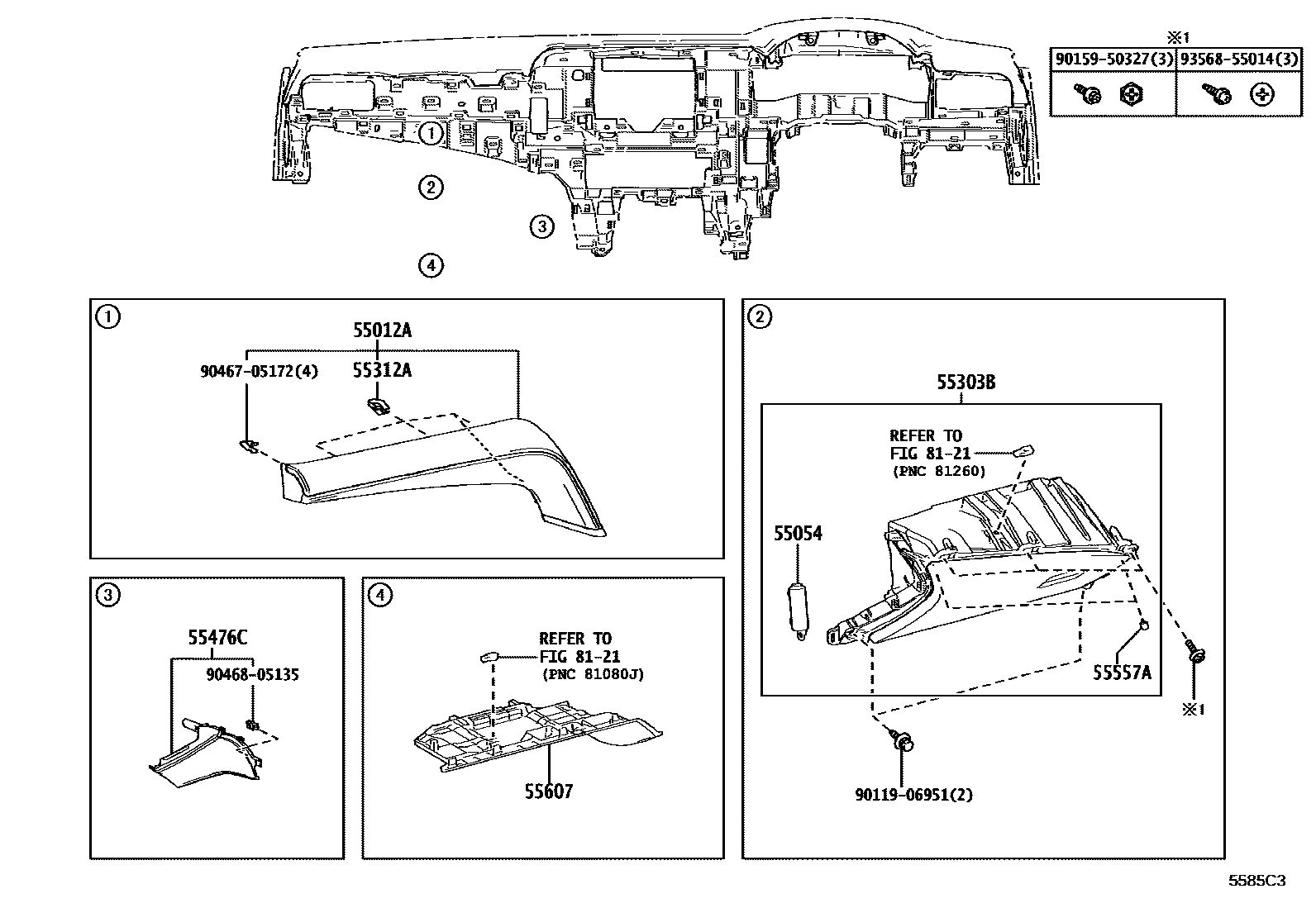

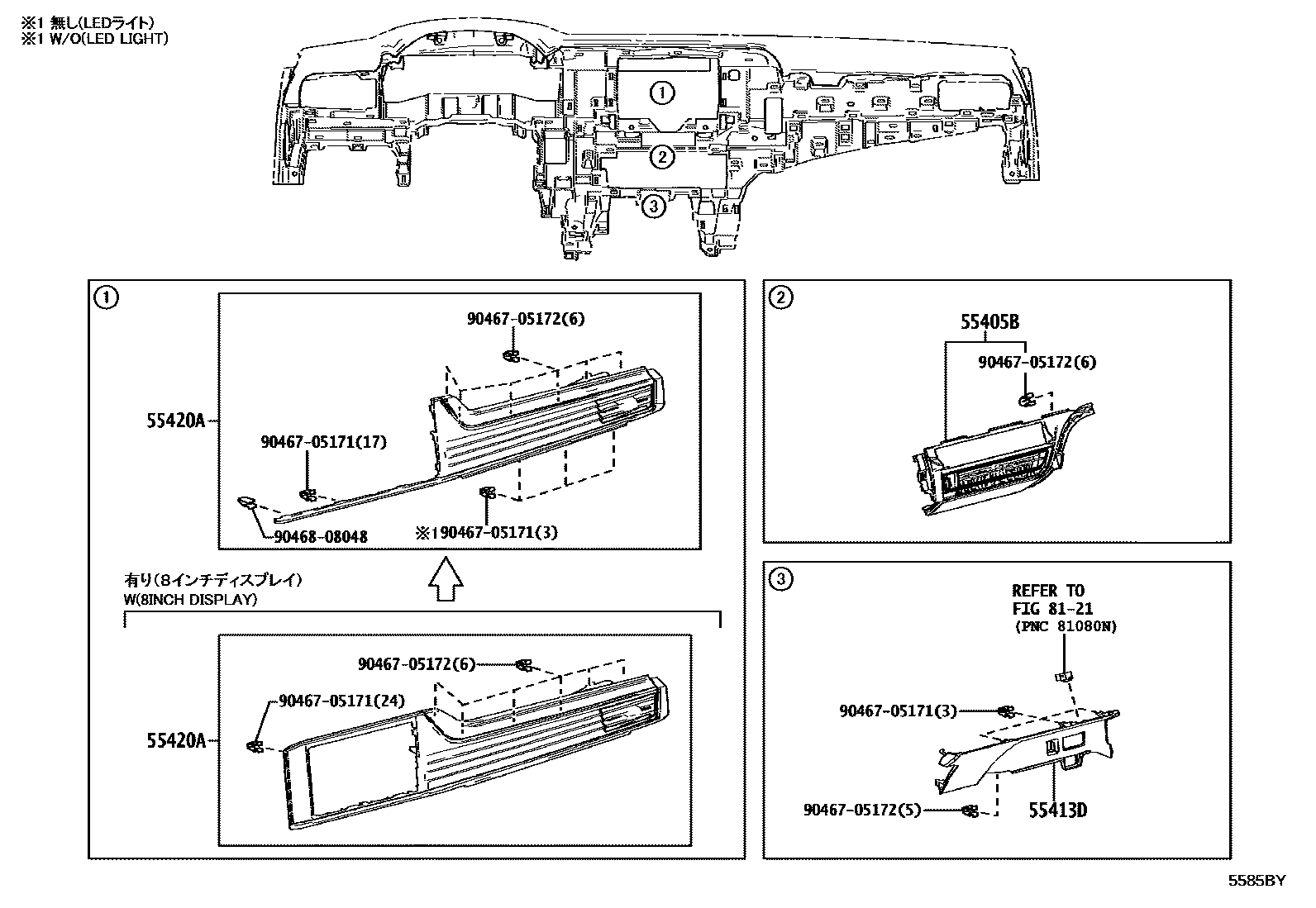

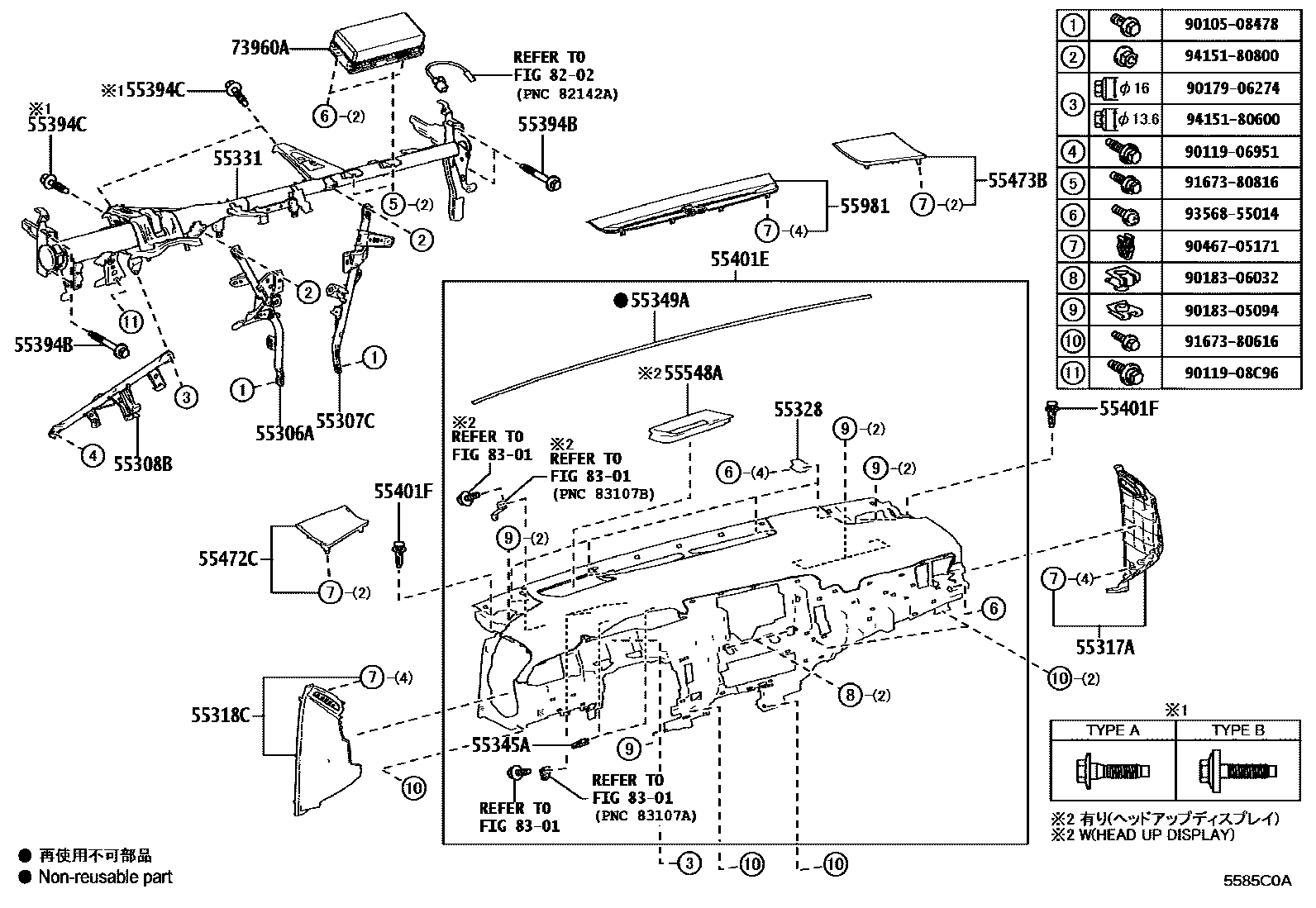

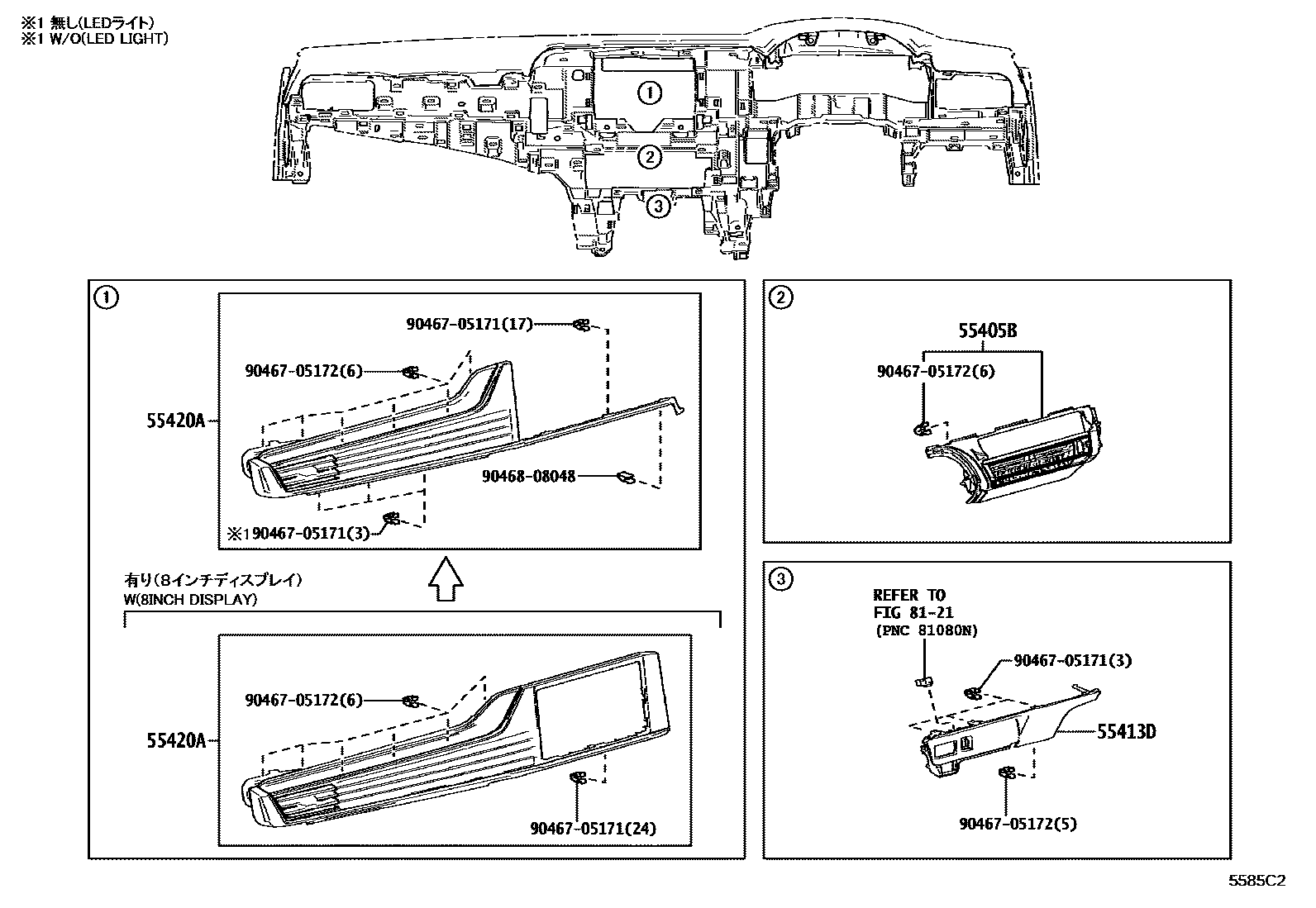

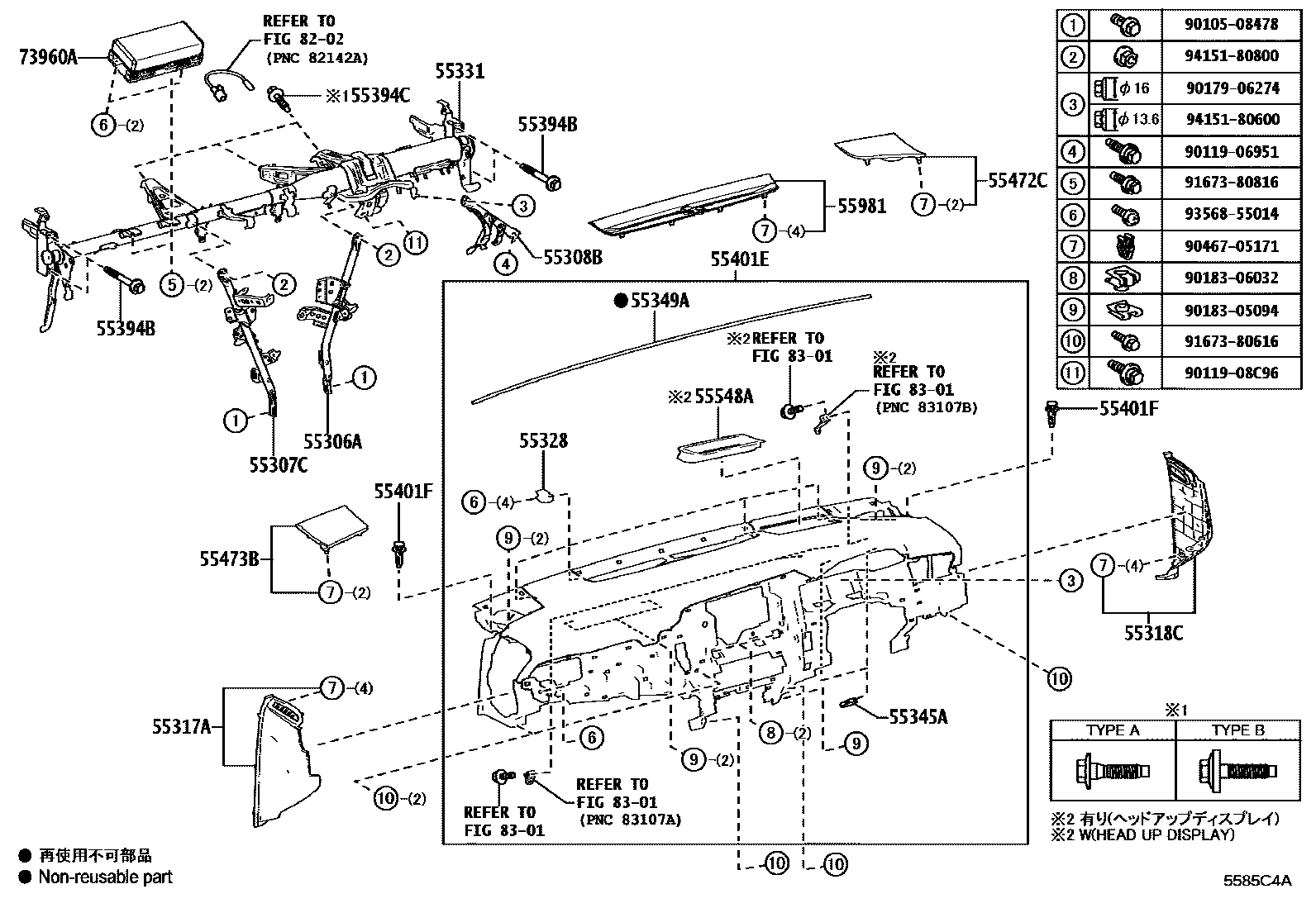

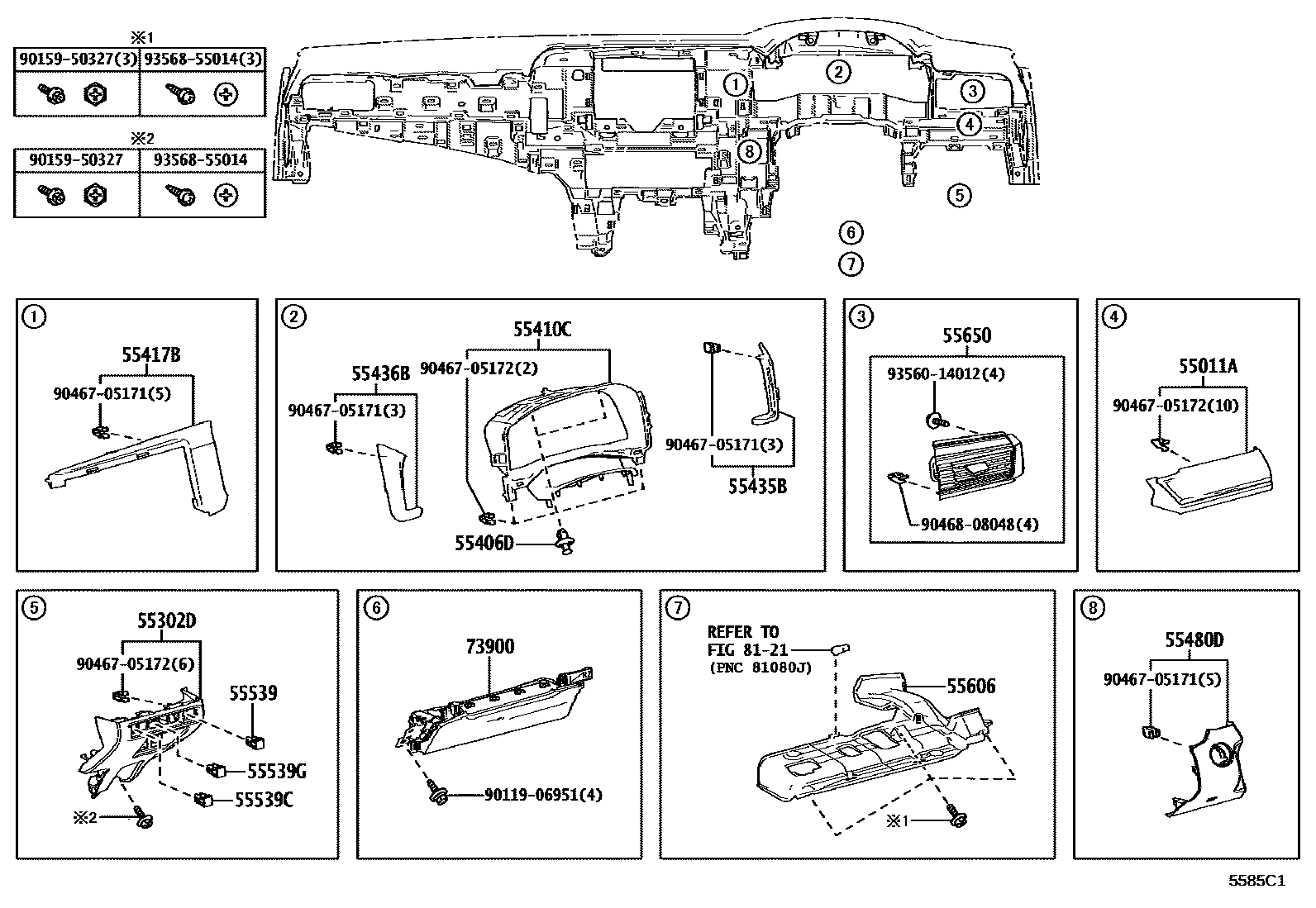

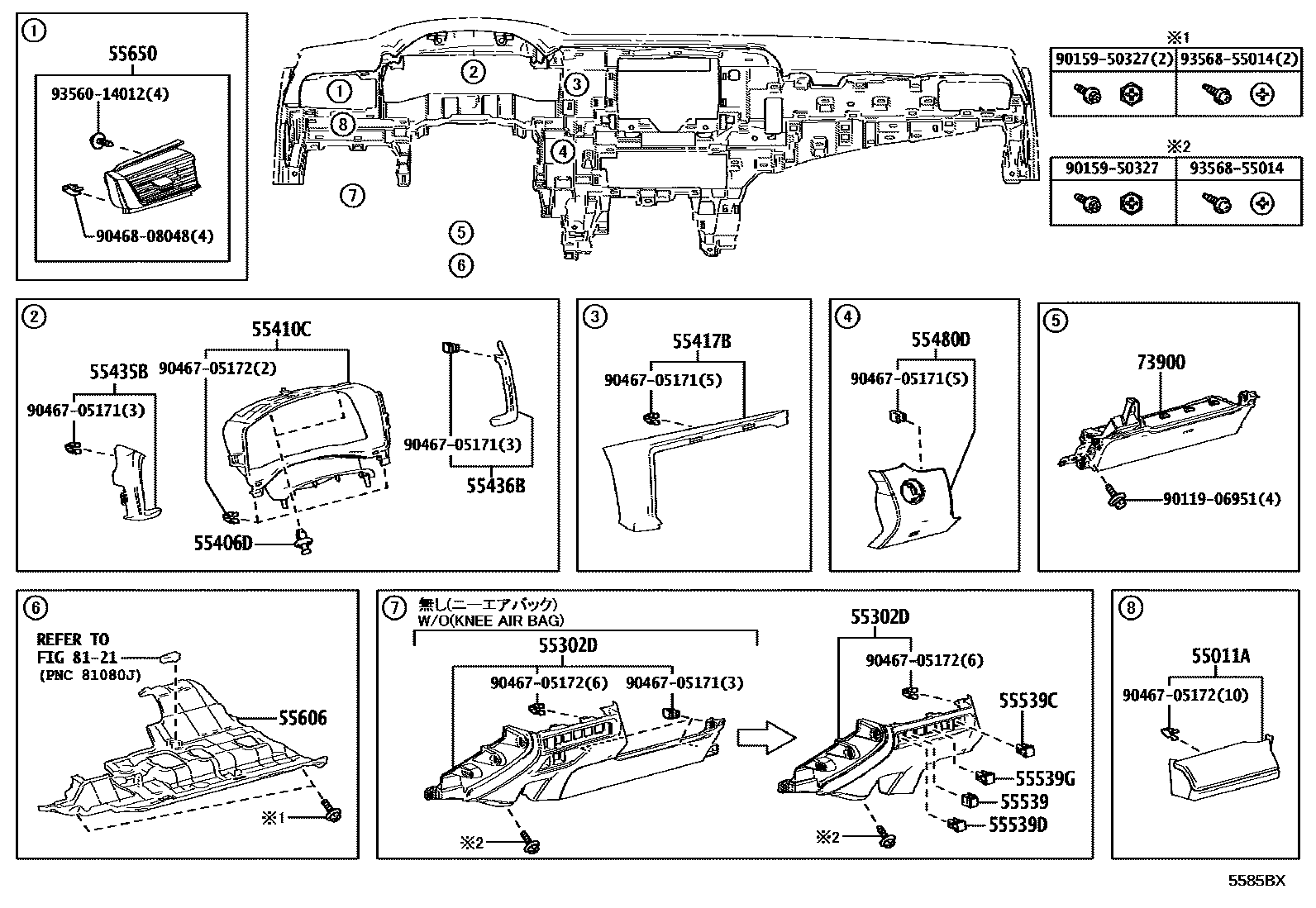

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 8 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-33240 · 55306-33250 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-33271 · 55307-33281 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-33150 · 55308-33160 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-33530 · 55330-33540 · 55330-33550 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55349A | Dashboard cushion | 55349-33060 |
| 55394B | Dashboard bolts | 90105-08473 |
| 55394C | Dashboard bolts | 90105-08526 · 90119-08D16 |
| 55401F | Clip (for safety mat) | 52161-16010 |
| 55410C | Instrument cluster decorative panel assembly | 55404-33270 · 55404-33280 · 55404-33290 · 55404-33300 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-33090 · 55420-33100 · 55420-33110 · 55420-33120 · 55420-33130 · 55420-33140 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-33180 · 55435-33190 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-33180 · 55436-33190 |
| 55472C | Dashboard Speaker Panel No. 1 | 55472-33231 · 55472-33280 |
| 55473B | Dashboard Speaker Panel No. 2 | 55473-33101 · 55473-33130 |
| 55548A | Dashboard hole cover | 55548-33091 · 55548-33130 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-33110 · 55606-33120 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-33171 · 55607-33300 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-33610 · 55650-33620 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-33250 · 55981-33260 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-33260 · 73960-33280 |
