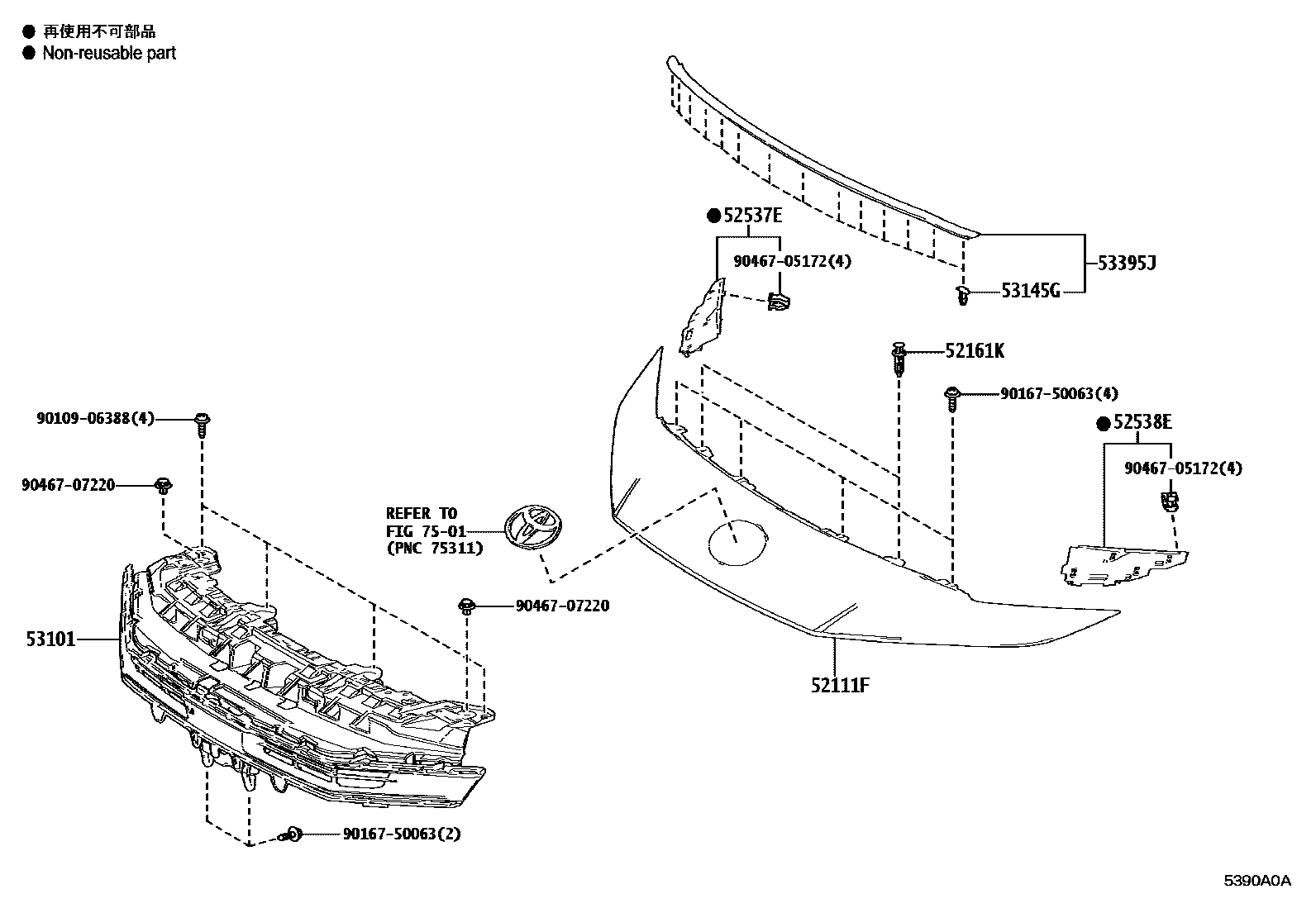

Toyota CAMRY radiator grille — Figure 5301
Toyota CAMRY EPC diagram 5301, radiator grille, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111F | Front bumper center stay | 52111-33901 |
| 52161K | front bumper insert | 52161-16010 |
| 52537E | ARRETOIR, EXTR PARE-CHOCS AV, MD | 52537-33040 · 52537-33041 |
| 52538E | ARRETOIR, EXTR PARE-CHOCS AV, MG | 52538-33040 · 52538-33041 |
| 53101 | Radiator grille sub-assembly | 53101-33A70 · 53101-33A80 · 53101-33B00 · 53101-33B10 |
| 53145G | Radiator grille clip | 53145-60030 |
| 53395J | Engine cover to front end plate seal | 53395-33080 |
