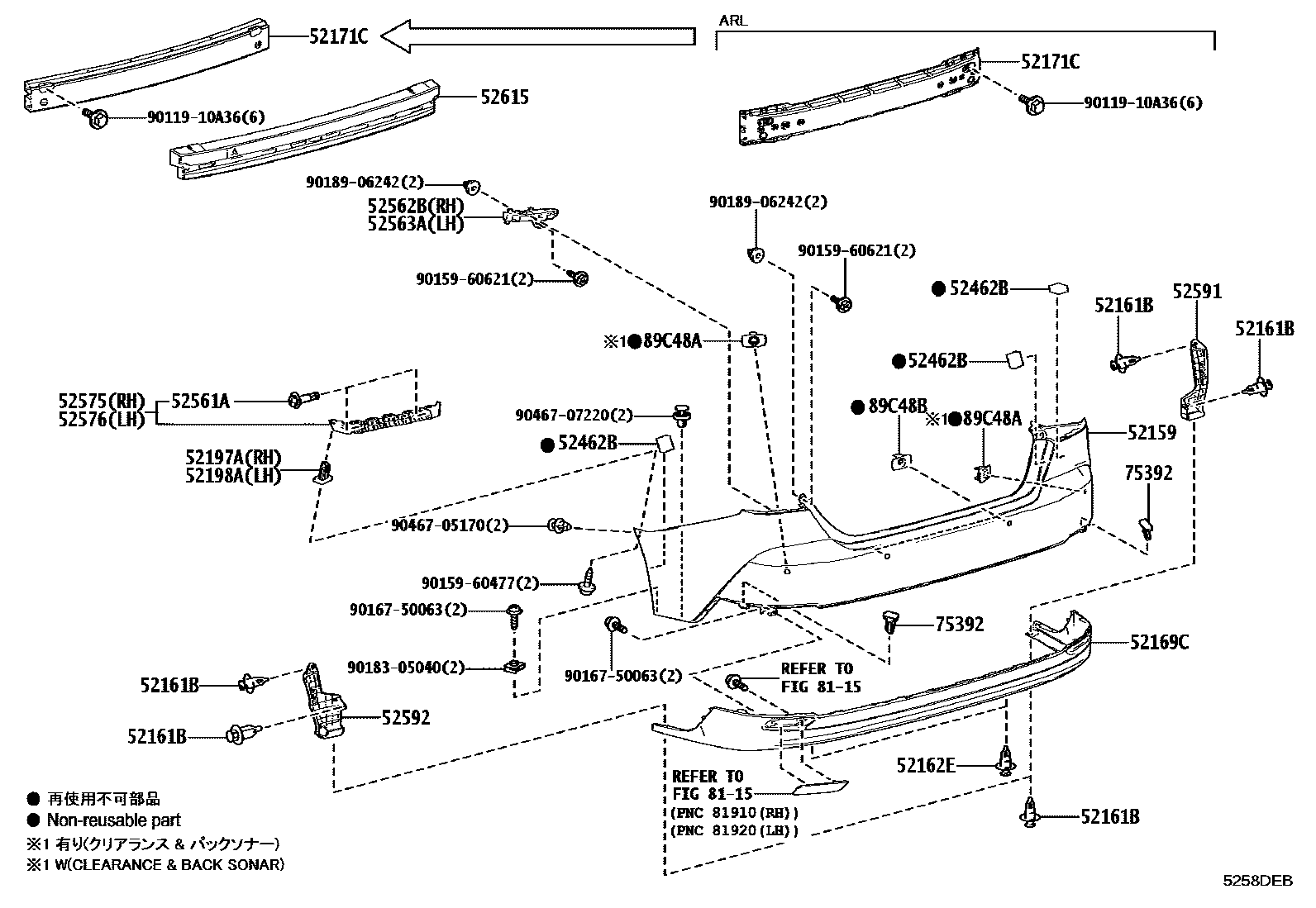

Toyota CAMRY 后保险杠及附件 — Figure 5202
Toyota CAMRY EPC diagram 5202, 后保险杠及附件, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-3T903 · 52159-3T904 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162E | Rear bumper insert | 52161-16010 |
| 52169C | Rear bumper lower cover | 52169-33090 |
| 52171C | Rear bumper reinforcement | 52023-33060 · 52171-33180 |
| 52197A | Rear bumper right seal support | 52197-53040 |
| 52198A | Rear bumper left seal support | 52198-53020 |
| 52462B | rear bumper lining | 52462-33120 |
| 52561A | Clip (for rear bumper mount) | 90467-09237 |
| 52562B | Rear bumper upper right fixing bracket | 52562-33090 |
| 52563A | Rear bumper upper left fixing bracket | 52563-33080 |
| 52575 | Rear bumper right side fixing bracket | 52575-33140 |
| 52576 | Rear bumper left side fixing bracket | 52576-33100 |
| 52591 | Rear bumper right seal | 52591-33040 |
| 52592 | Rear bumper left seal | 52592-33040 |
| 52615 | Rear bumper energy absorber | 52615-33230 |
| 75392 | External protective strip fixings | 75392-35220 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-46060 · 89348-K0231 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-46060 · 89348-K0231 |
