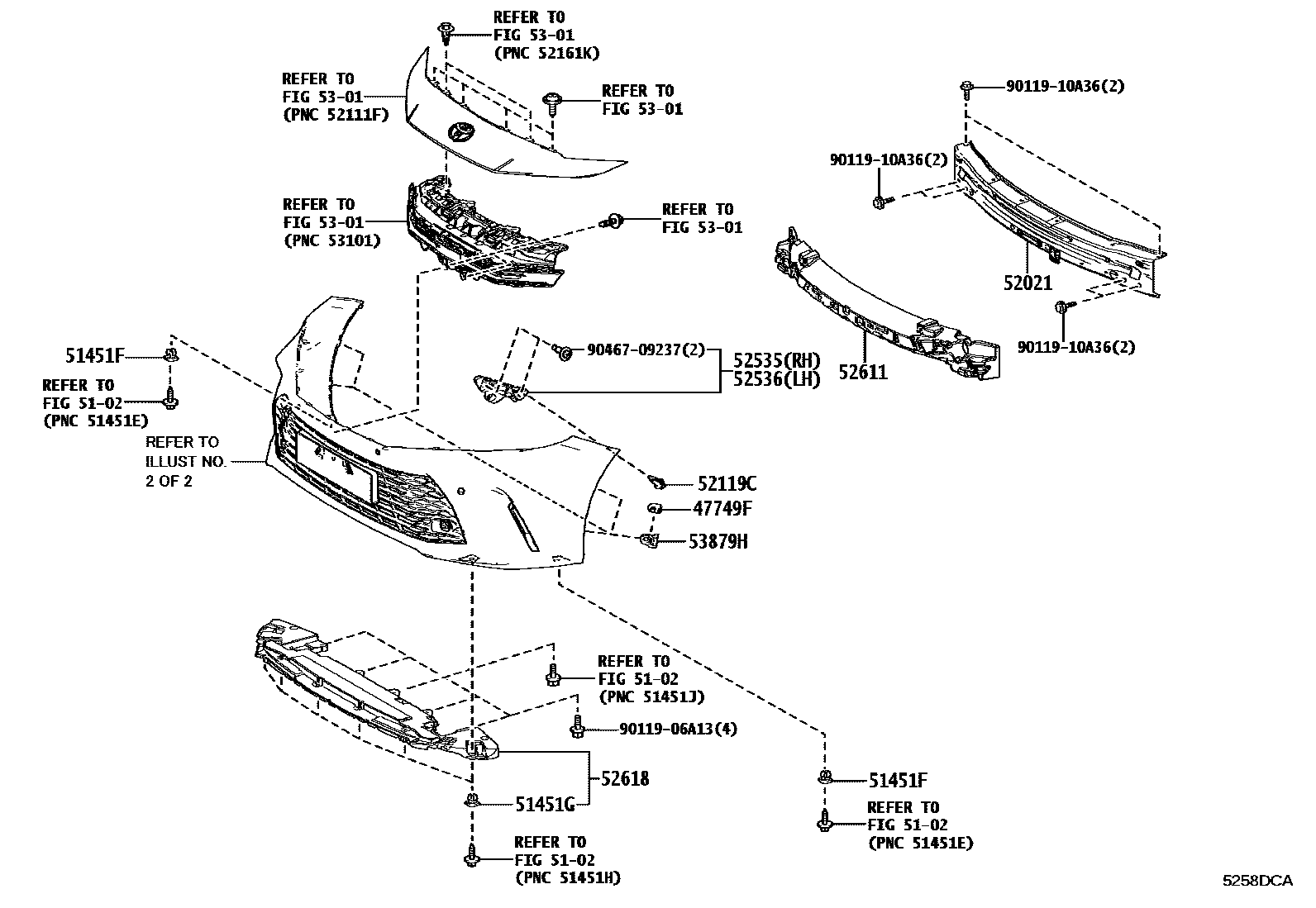

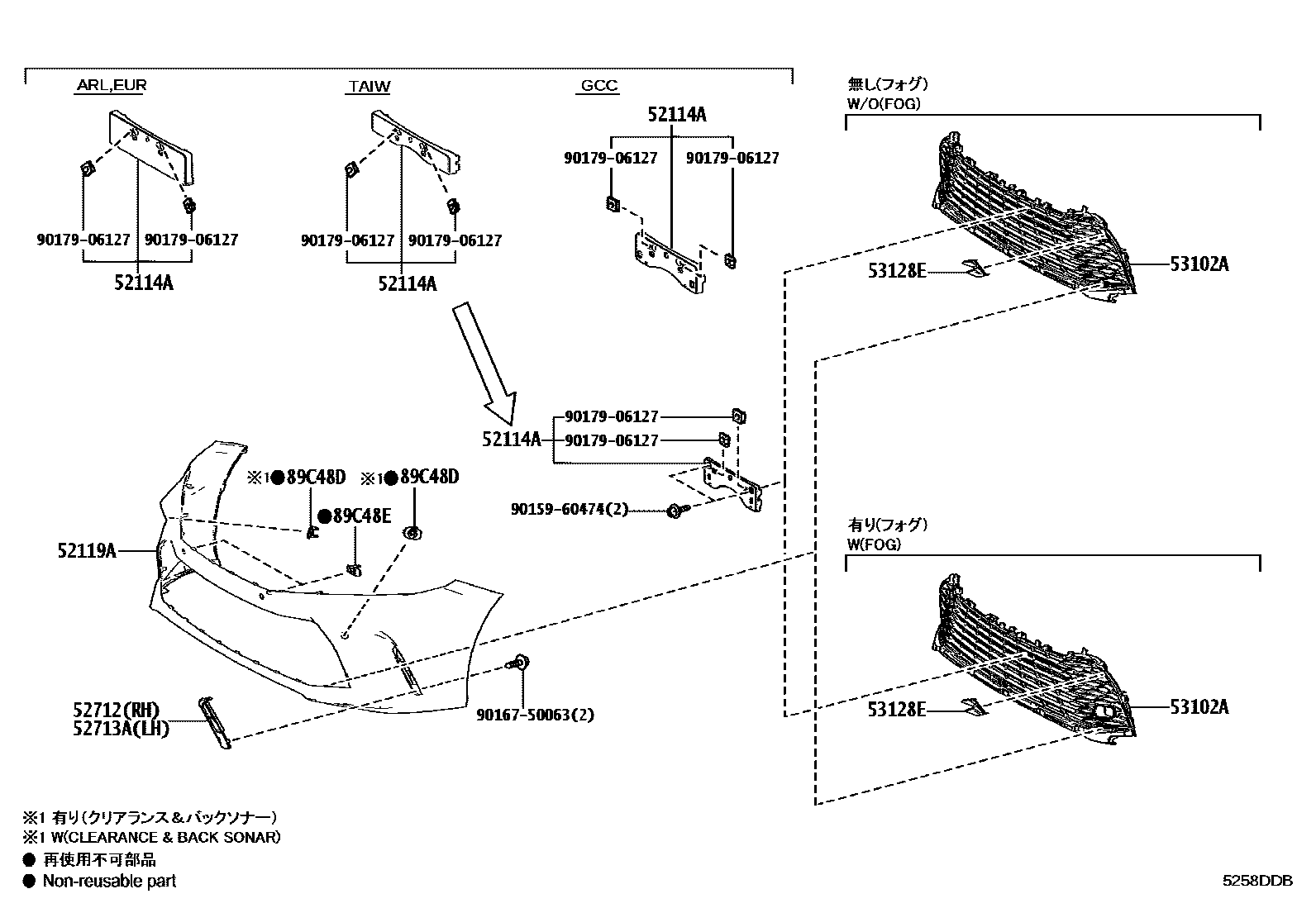

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 51451F | Gasket No. 1 | 90189-06237 |
| 51451G | Gasket No. 2 | 90189-06237 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-33280 |
| 52114A | Front bumper extension mounting bracket | 52114-33750 · 52114-33760 · 52114-33780 |
| 52119A | front bumper cover | 52119-3T988 · 52119-3T989 · 52119-3T990 |
| 52119C | Front bumper cover clip | 90467-05170 |
| 52131A | Front bumper reinforcement | 52131-33181 |
| 52535 | Front bumper right side fixing bracket | 52535-33070 |
| 52536 | Front bumper left fixed bracket | 52536-33070 |
| 52611 | front bumper energy absorber | 52611-33390 |
| 52618 | Front bumper lower shock absorber | 52618-33130 |
| 52712 | Front bumper right side protective strip | 52712-33110 |
| 52713A | Front bumper left protective strip | 52713-33110 |
| 53102A | Radiator lower grille sub-assembly | 53102-33610 · 53102-33620 · 53102-33640 · 53102-33660 · 53102-33710 · 53102-33720 |
| 53128E | Lower left radiator grille | 53128-33150 · 53128-33160 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
