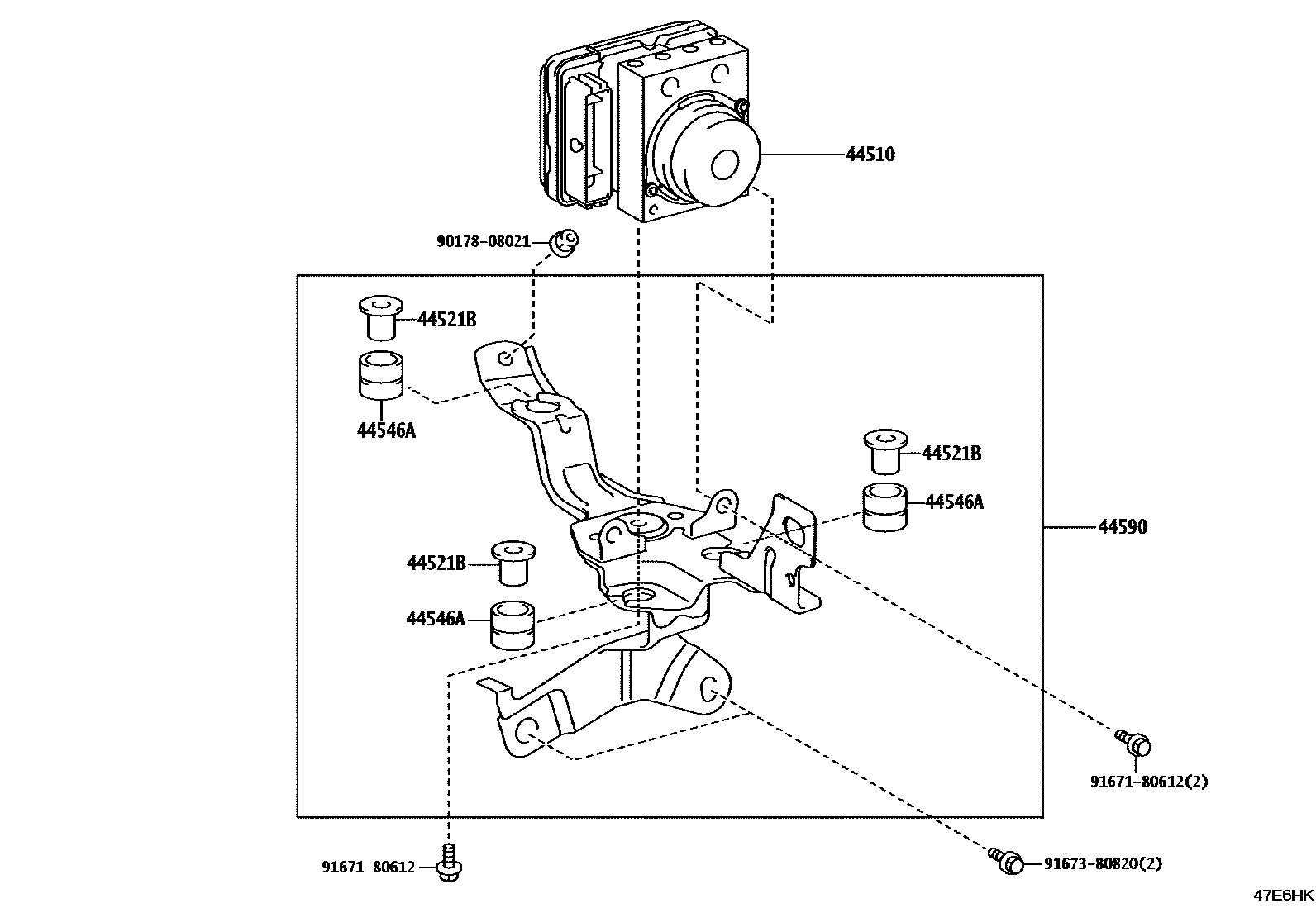

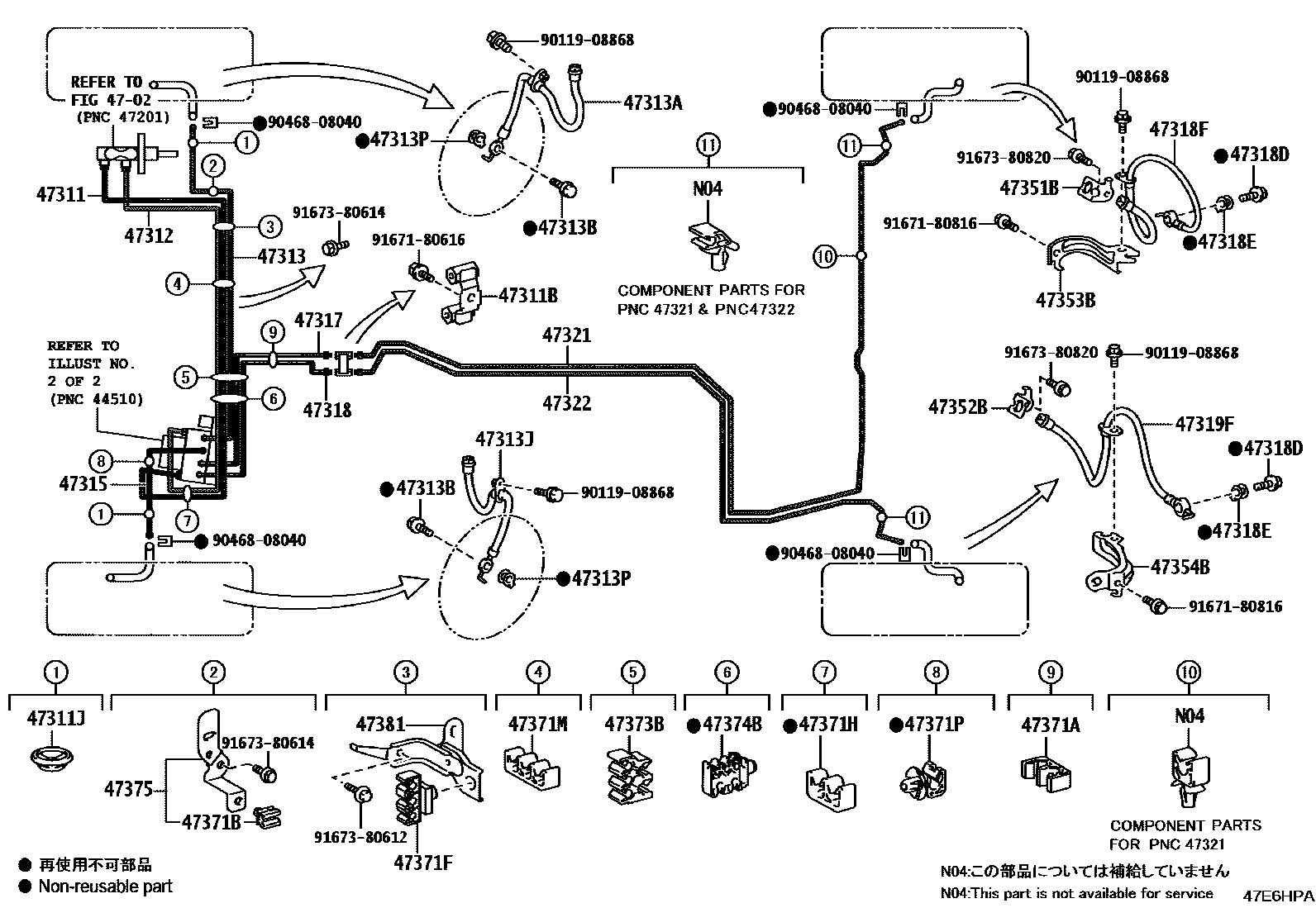

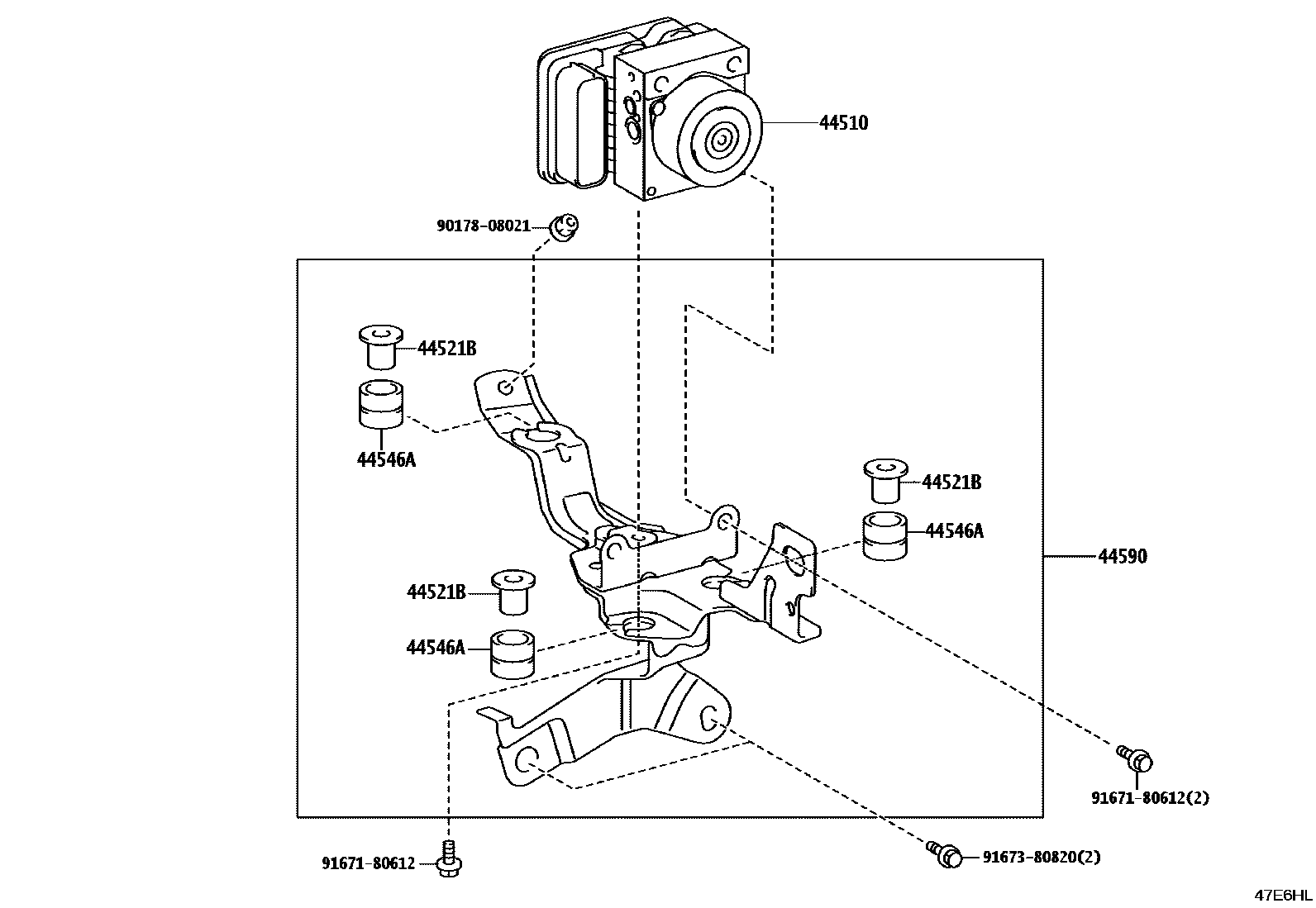

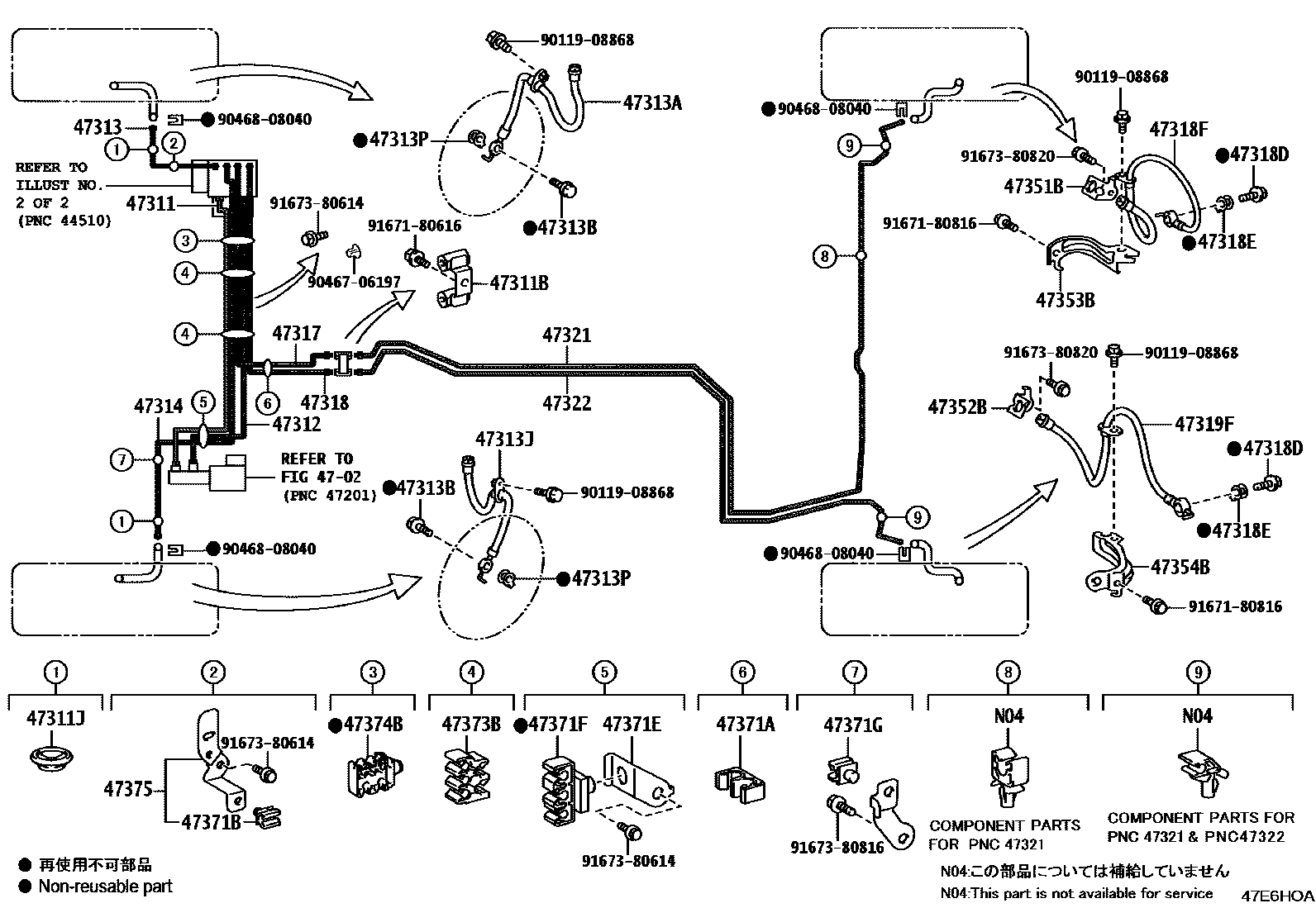

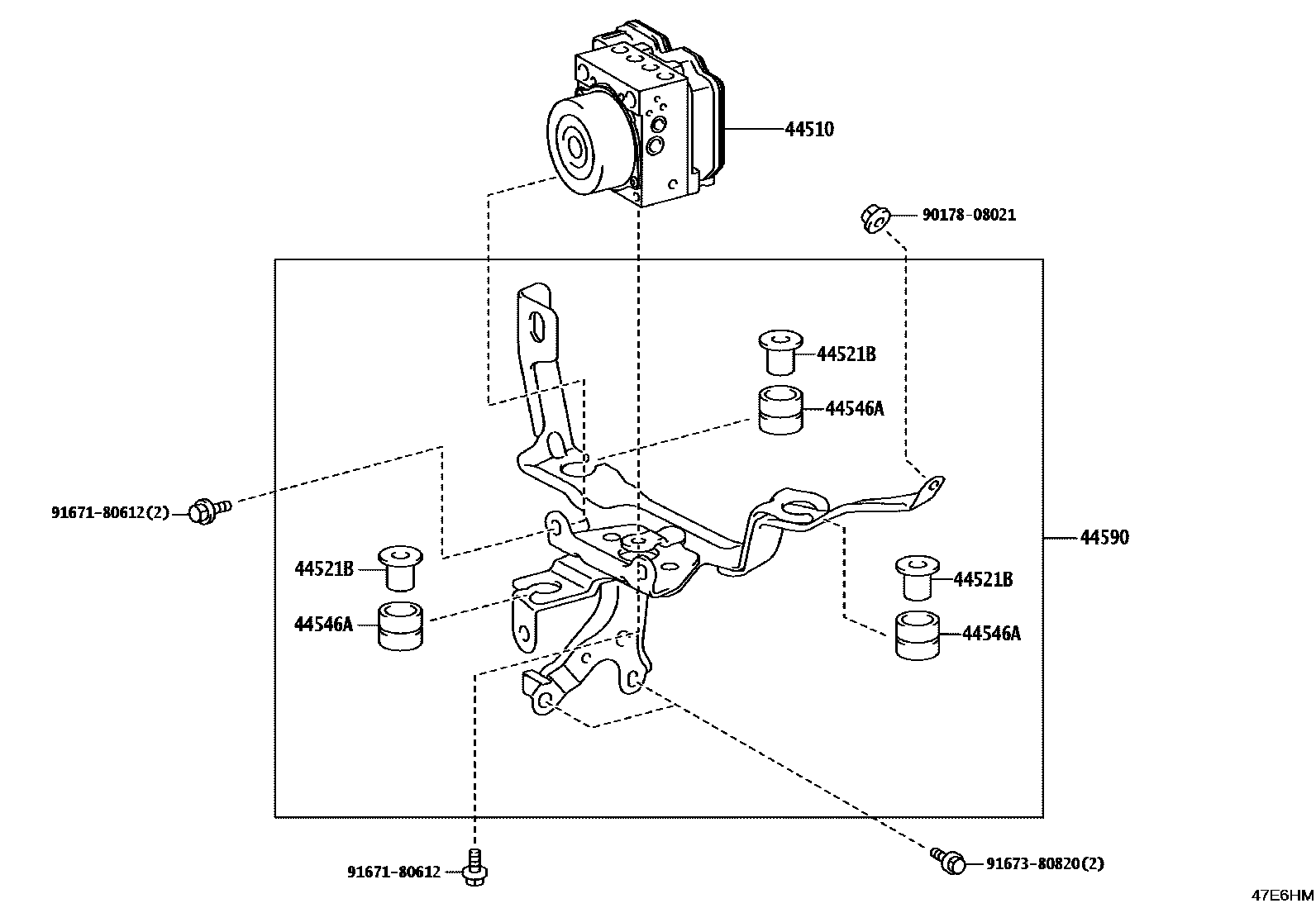

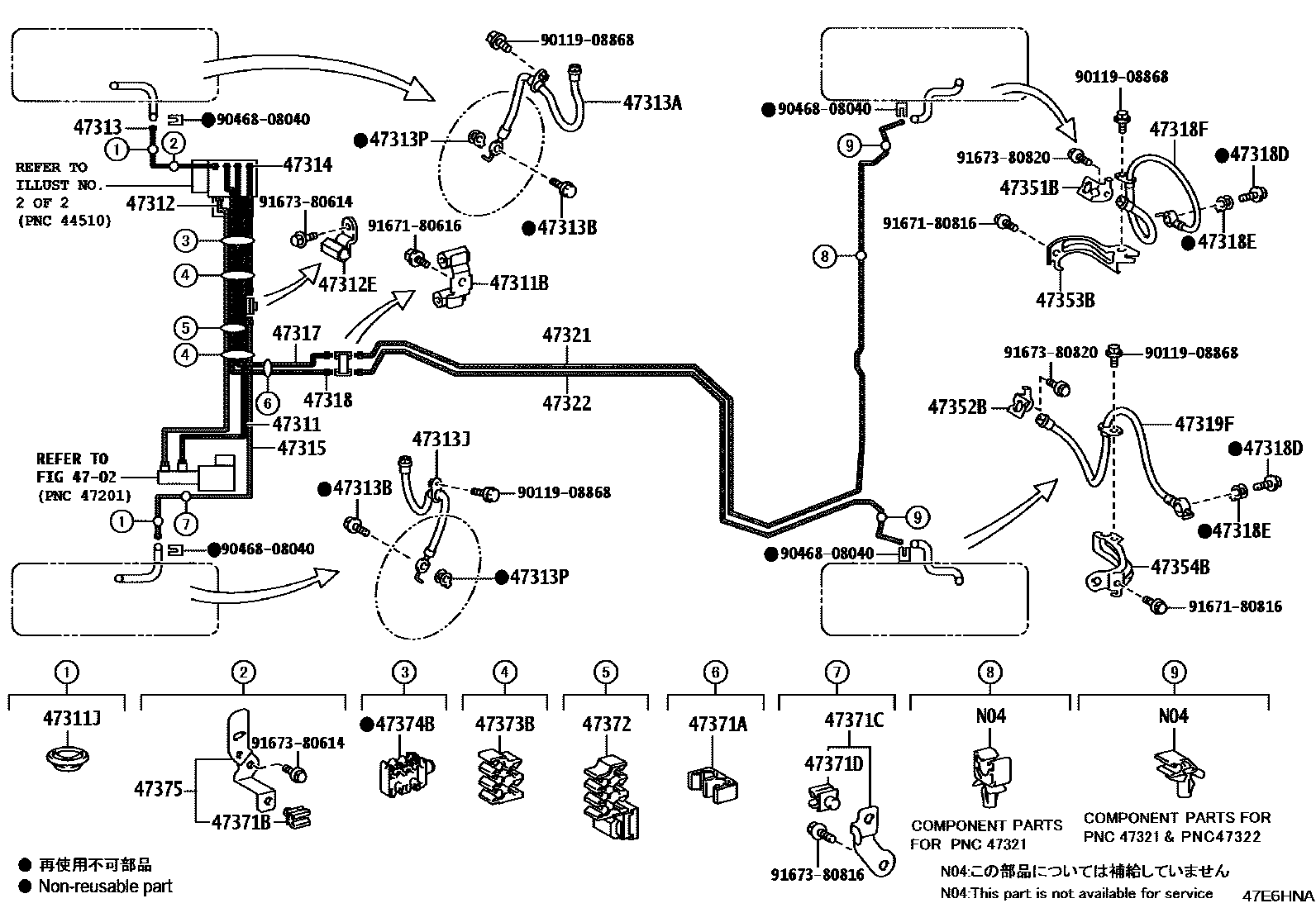

Toyota CAMRY 制动配管和卡箍 — Figure 4708
Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 6 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-33G10 · 44050-33G20 |
| 44521B | No. 2 brake actuator housing collar | 44521-33020 |
| 44546A | Brake actuator bolt cushion | 44547-33100 |
| 44590 | Brake actuator bracket assembly | 44590-33220 · 44590-33230 · 44590-33240 |
| 47311 | No. 1 front brake pipe | 47311-33360 · 47311-33390 · 47311-33460 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10285 |
| 47311J | Seal No. 1 (for front brake pipe) | 90480-25037 |
| 47312 | No. 2 front brake pipe | 47312-33360 · 47312-33370 · 47312-33380 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10272 |
| 47313 | No. 3 front brake pipe | 47313-33410 · 47313-33420 |
| 47313A | No. 1 front flexible hose | 90947-02K85 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02K86 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-33310 · 47314-33380 |
| 47315 | No. 5 front brake pipe | 47315-33370 · 47315-33380 |
| 47317 | No. 7 front brake pipe | 47317-33490 · 47317-33500 · 47317-33510 |
| 47318 | No. 8 front brake pipe | 47318-33210 · 47318-33220 · 47318-33230 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-02K87 |
| 47319F | Left rear flexible hose | 90947-02K88 |
| 47321 | No. 1 rear brake pipe | 47321-33310 · 47321-33320 |
| 47322 | No. 2 rear brake pipe | 47322-33280 · 47322-33290 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-47030 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-47030 |
| 47353B | No. 3 Flexible Hose Bracket | 47351-10110 |
| 47354B | No. 4 Flexible Hose Bracket | 47352-10060 |
| 47371A | No. 1 brake pipe clamp | 90464-00904 |
| 47371B | No. 6 brake pipe clamp | 90949-01D56 |
| 47371C | No. 7 brake pipe clamp | 47371-33350 |
| 47371D | No. 8 brake pipe clamp | 90949-01D56 |
| 47371E | No. 9 brake pipe clamp | 47371-48240 |
| 47371F | No. 10 brake pipe clamp | 90949-01E80 |
| 47371G | No. 11 brake pipe clamp | 90949-01D56 |
| 47371H | No. 12 brake pipe clamp | 90949-01E23 |
| 47371M | No. 13 brake pipe clamp | 90949-01E43 |
| 47371P | No. 14 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90949-01E31 |
| 47373B | No. 3 brake pipe clamp | 90949-01E40 |
| 47374B | No. 4 brake pipe clamp | 90949-01E79 |
| 47375 | No. 5 brake pipe clamp | 47371-33340 |
| 47381 | No. 1 brake pipe clamp bracket | 47381-30160 |
