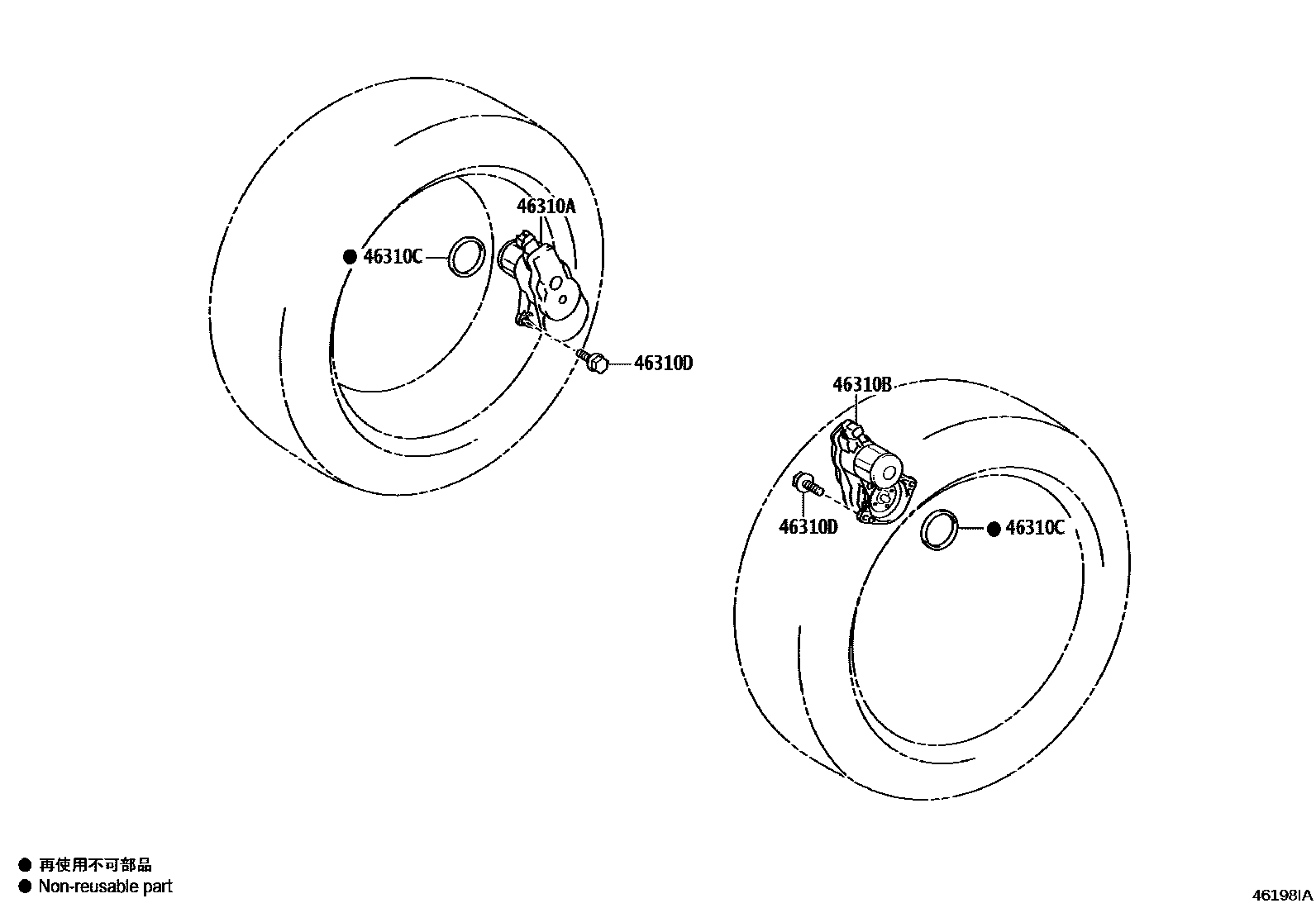

Toyota CAMRY Parking Brake & Cable — Figure 4601
Toyota CAMRY EPC diagram 4601, Parking Brake & Cable, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46310A | Right parking brake actuator assembly | 46310-33010 |
| 46310B | Left parking brake actuator assembly | 46310-33010 |
| 46310C | Seal (for parking brake actuator) | 90015-AH005 |
| 46310D | Bolt (for parking brake actuator) | 90015-AA702 |
