Toyota CAMRY 前转向齿轮和连杆 — Figure 4505

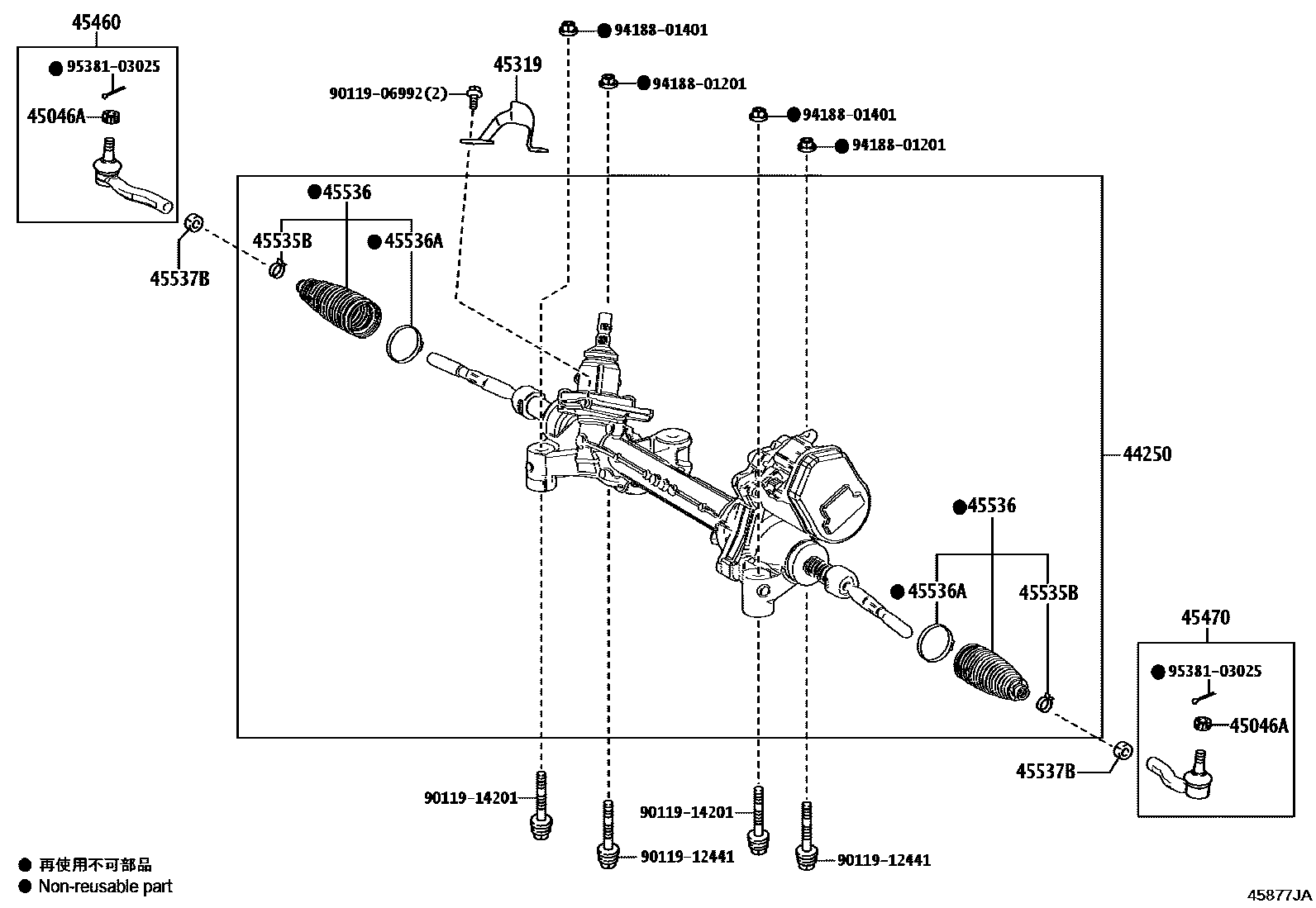

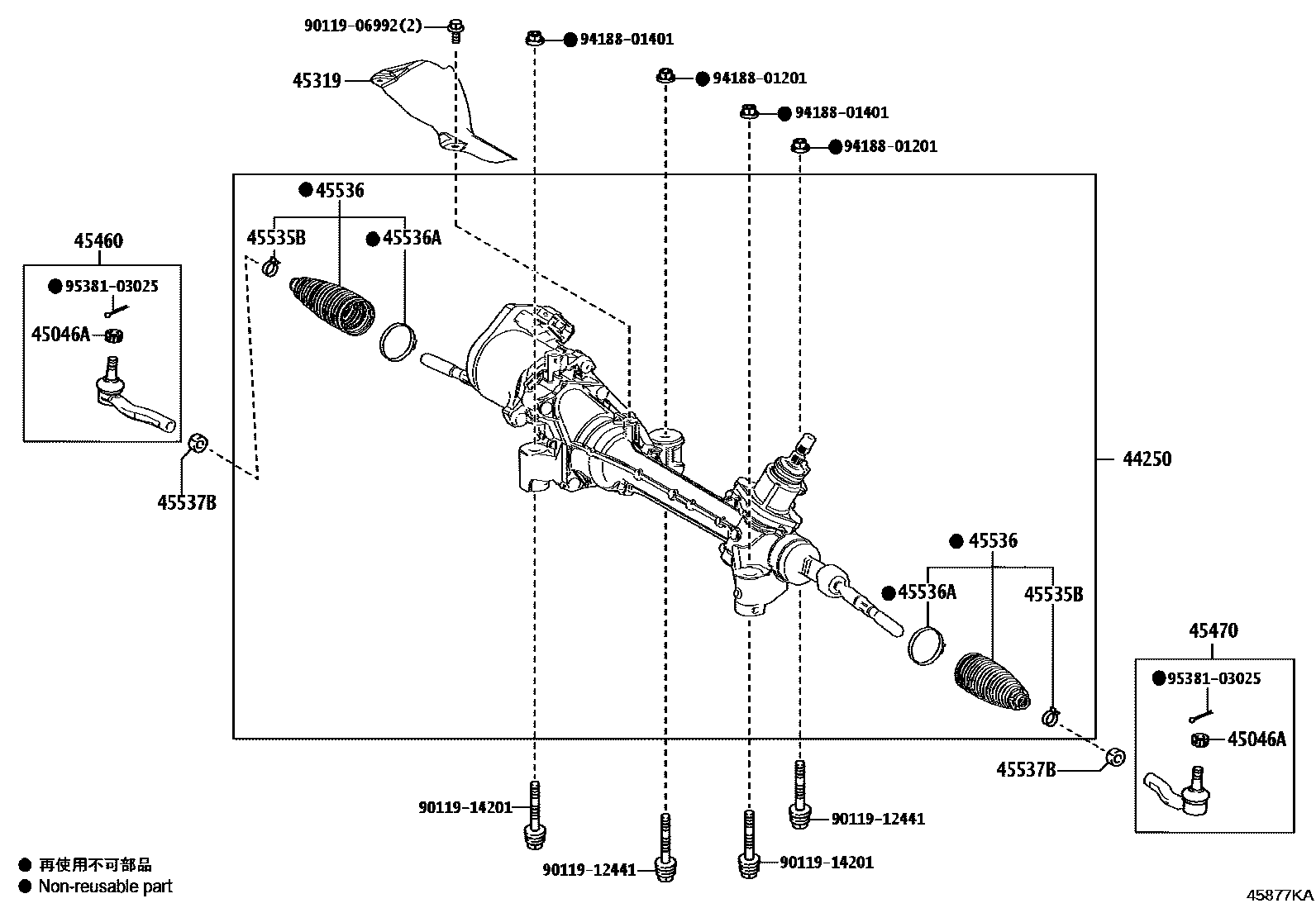

Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-33A00 · 44250-33A80 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45319 | Steering gear heat insulation pad | 45319-33010 · 45319-33030 |
| 45460 | Right tie rod assembly | 45460-80008 |
| 45470 | Left tie rod assembly | 45470-39365 |
| 45535B | Clamp (for steering rack dust boot) | 45538-06030 |
| 45536 | No. 2 steering rack dust cover | 45535-69065 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90467-19021 |
| 45537B | Rack end lock nut | 90178-16001 |
