Toyota CAMRY 阀体和滤油网(ATM) — Figure 3512

Toyota CAMRY EPC diagram 3512, 阀体和滤油网(ATM), with 1 images and 13 PNC and OE references.

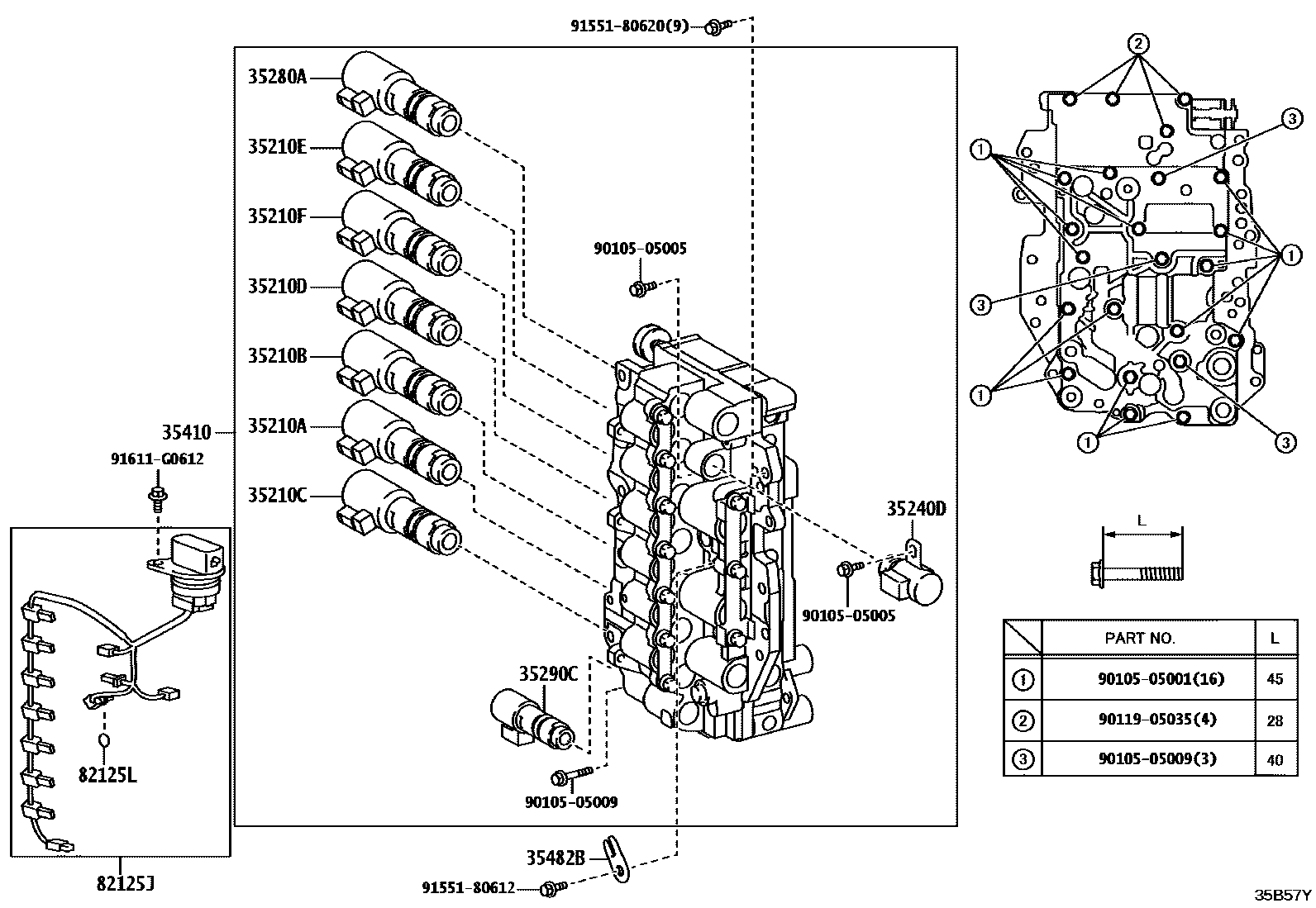

Toyota CAMRY 阀体和滤油网(ATM) EPC diagram — 35B57Y
阀体和滤油网(ATM) — 35B57Y (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
35210ASolenoid valve (SL1)35210-48020
35210BSolenoid valve (SL3)35210-48020
35210CSolenoid valve (SL2)35210-48020
35210DSolenoid valve (SL4)35210-48020
35210ESolenoid valve (SL5)35210-48020
35210FSolenoid valve (SL6)35210-48020
35240DSolenoid valve (SL)35240-48020
35280ASolenoid valve (SLU)35280-48030
35290CSolenoid valve (SLT)35290-48030
35410Transmission valve body assembly35410-48090
35482Btemperature sensor clip35482-73010
82125JTransmission wiring harness82125-33171
82125LO-ring (for transmission wiring harness)90301-06025
