Toyota CAMRY 废气再循环系统 — Figure 2501

Toyota CAMRY EPC diagram 2501, 废气再循环系统, with 2 images and 7 PNC and OE references.

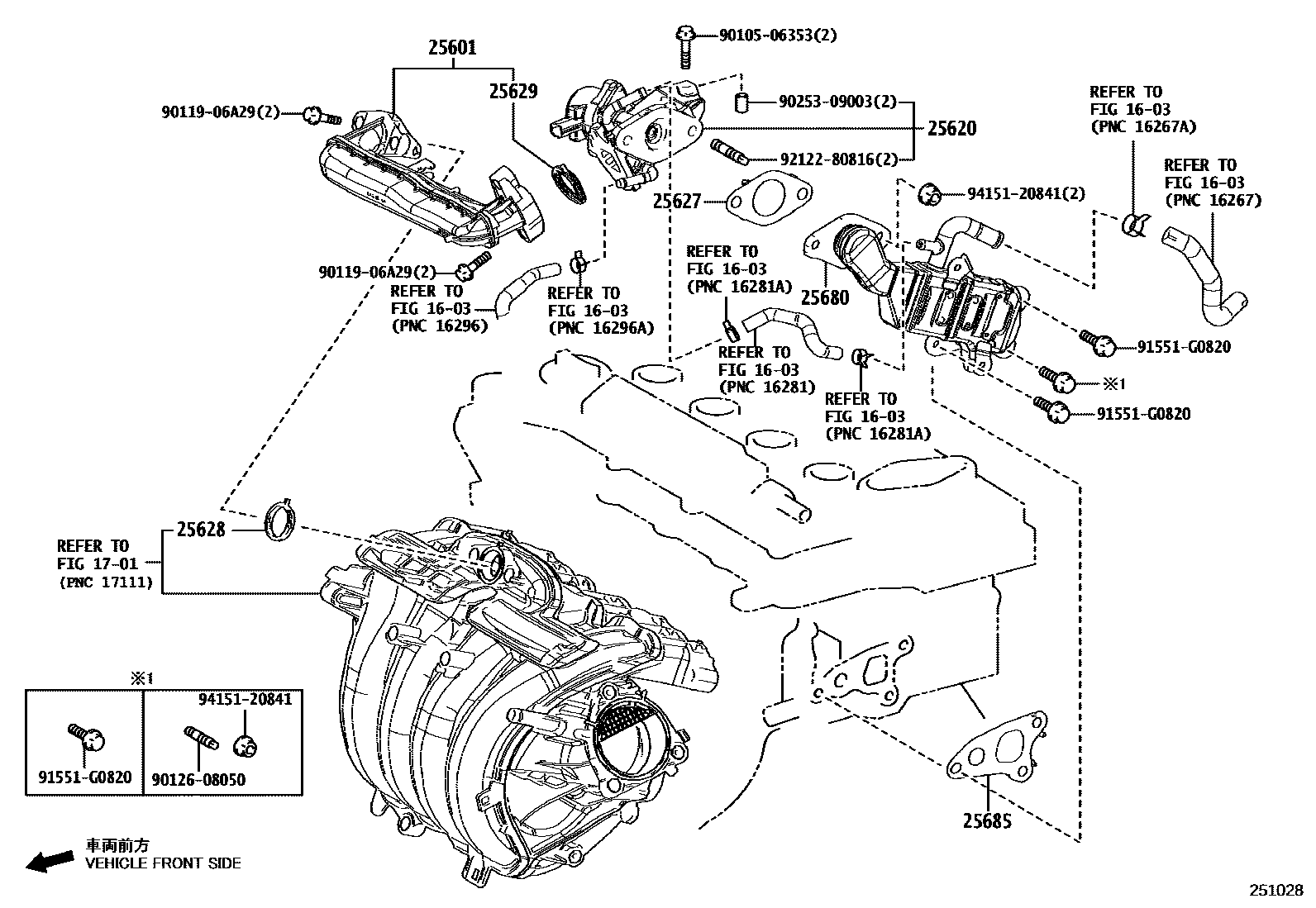

Toyota CAMRY 废气再循环系统 EPC diagram — 251028
废气再循环系统 — 251028 (202406 – 999999)

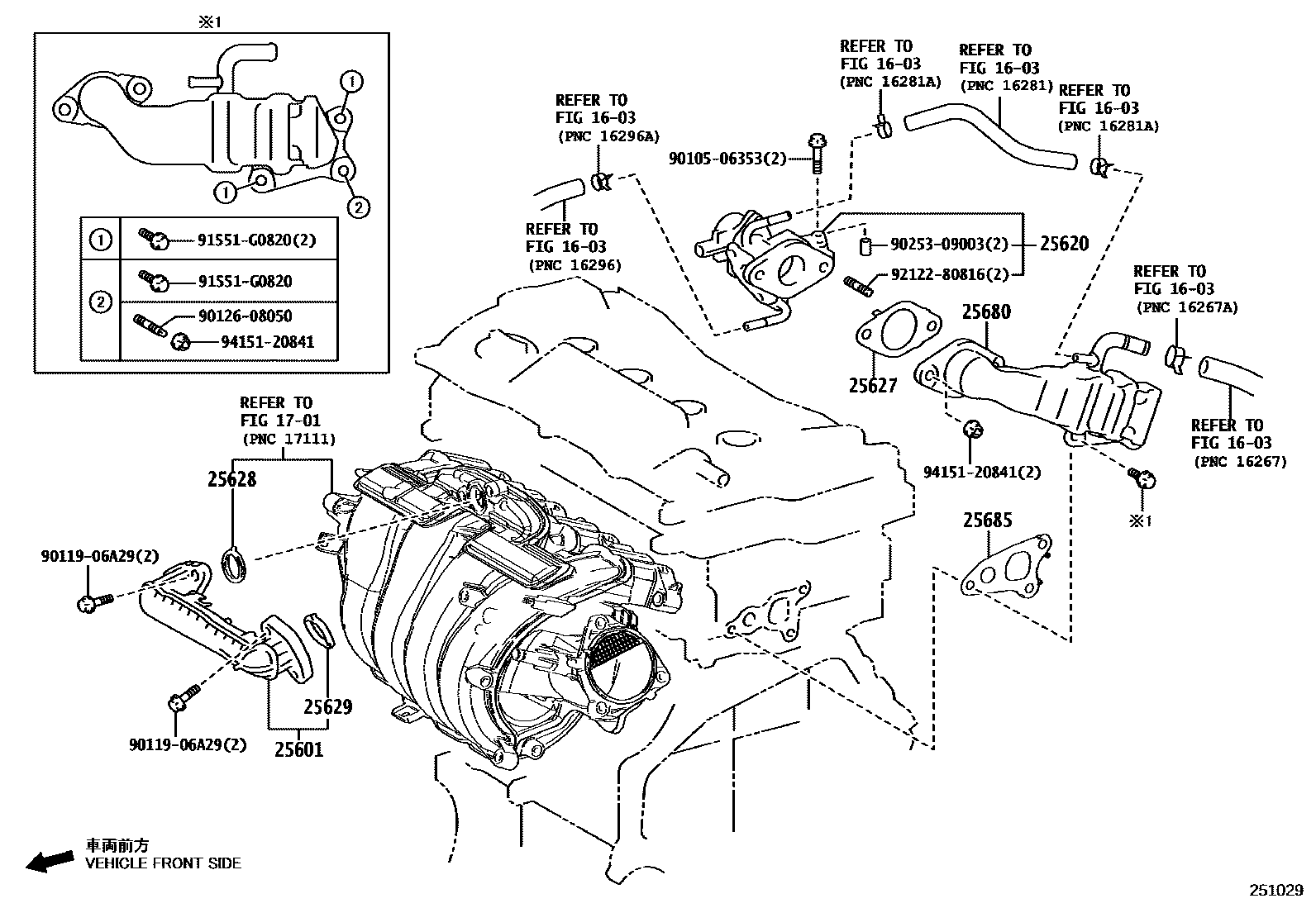

Toyota CAMRY 废气再循环系统 EPC diagram — 251029
废气再循环系统 — 251029 (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
25601No. 1 EGR pipe assembly25601-24030 · 25601-25030
25620EGR valve assembly25620-24050 · 25620-24060
25627EGR valve gasket25627-24010
25628EGR air intake gasket25628-25010
25629EGR valve adapter gasket25629-25010
25680EGR cooler assembly25680-24010 · 25680-25060 · 25680-25070 · 25680-25080
25685No. 1 EGR Cooler Gasket25685-25011
