Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 4 PNC and OE references.

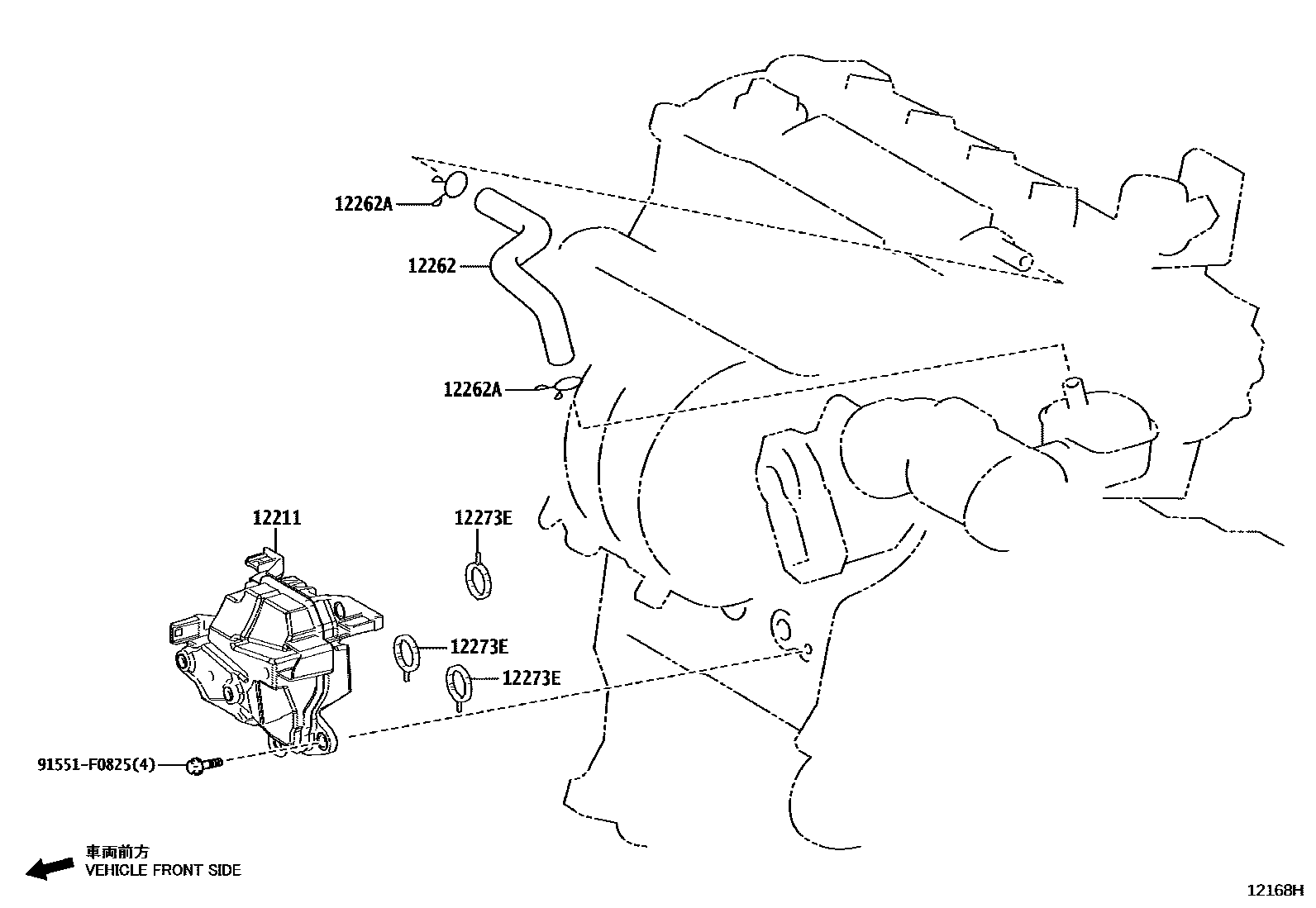

Toyota CAMRY Ventilation Hose EPC diagram — 12168H
Ventilation Hose — 12168H (202406 – 999999)

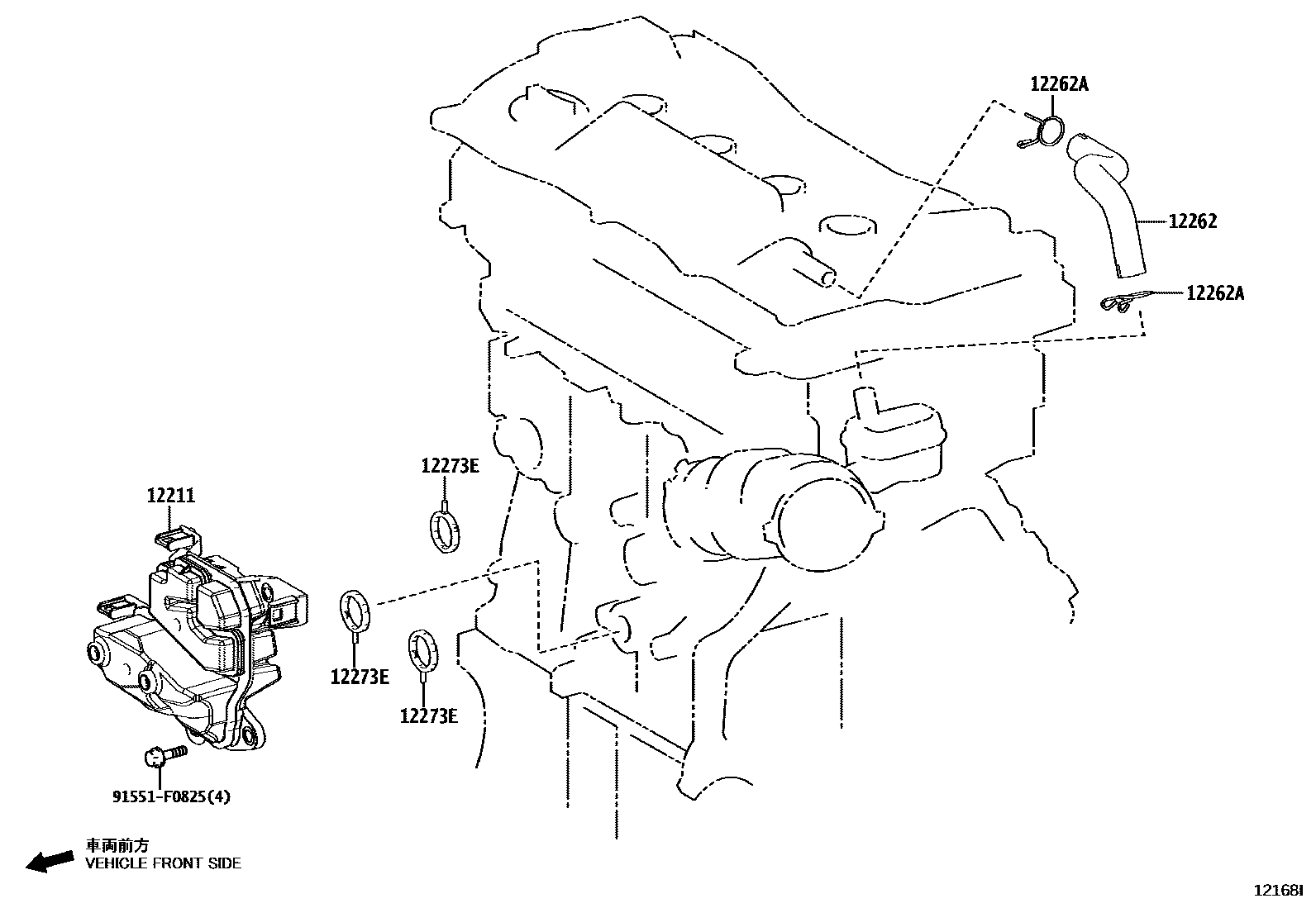

Toyota CAMRY Ventilation Hose EPC diagram — 12168I
Ventilation Hose — 12168I (202406 – 999999)

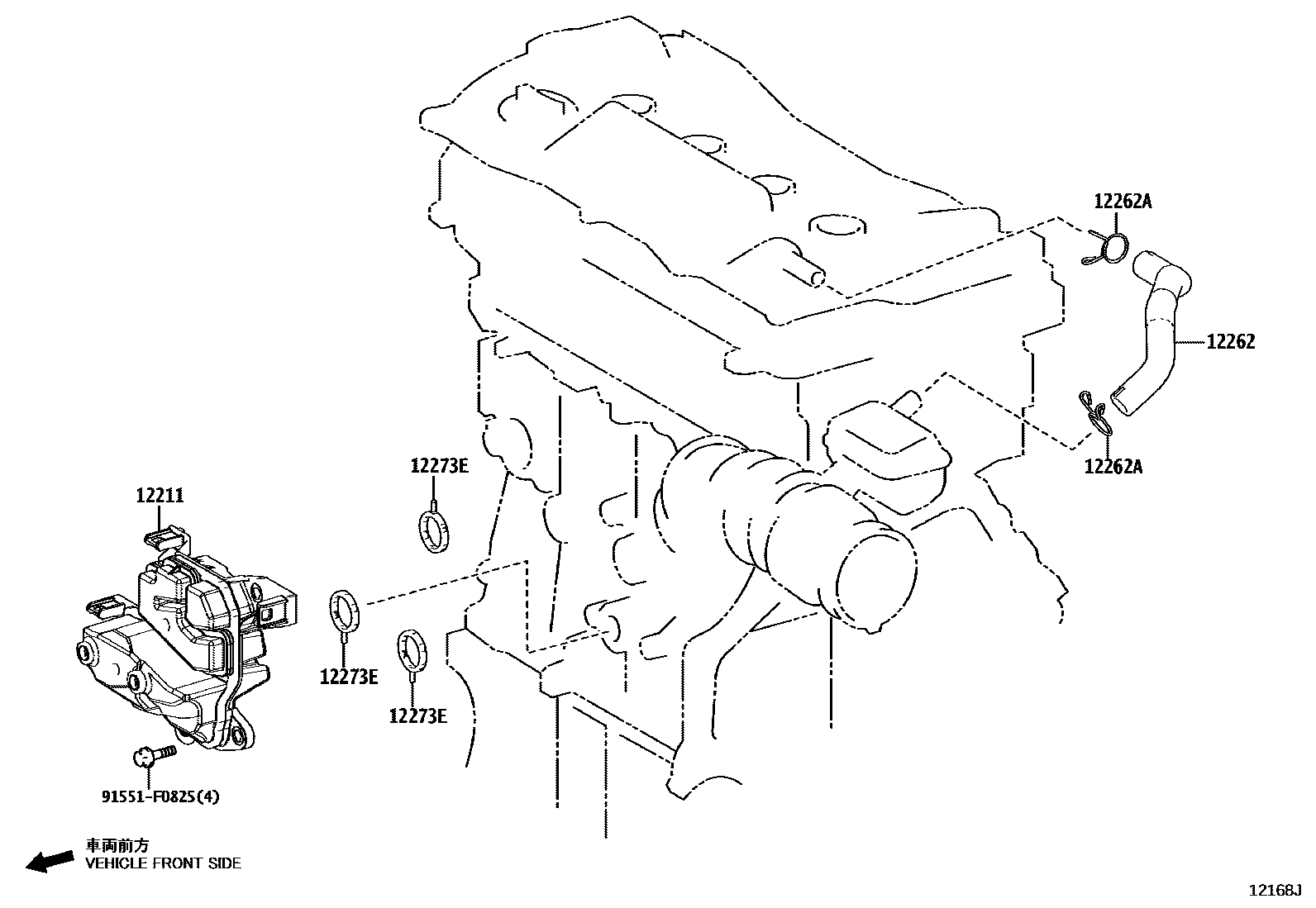

Toyota CAMRY Ventilation Hose EPC diagram — 12168J
Ventilation Hose — 12168J (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-24020 · 12211-25011
12262Ventilation hose No. 212262-24060 · 12262-25030 · 12262-25060
12262AClamp (for vent hose No. 2)90467-21004
12273EPads (for ventilation boxes)12273-24010
