Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

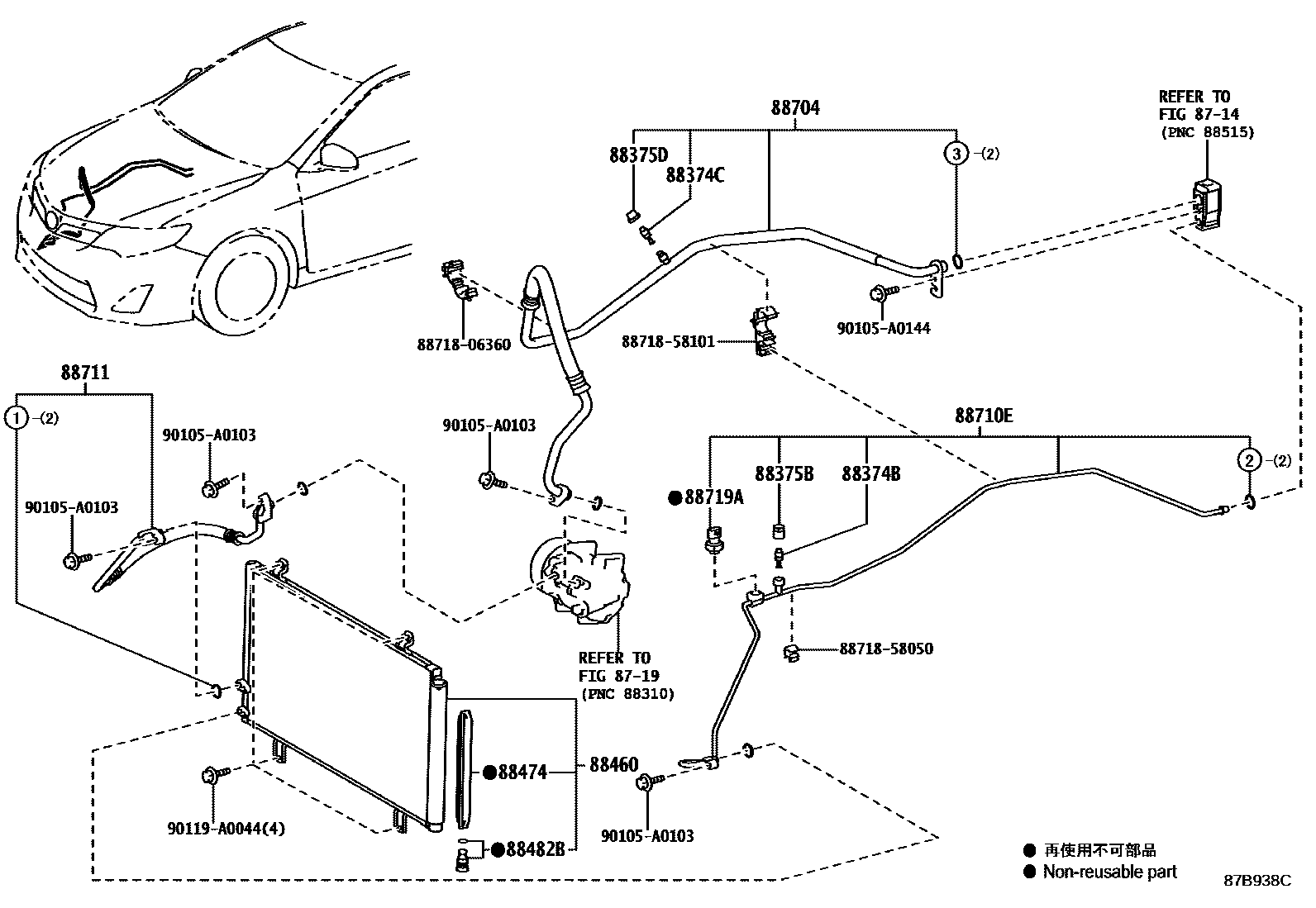

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 11 PNC and OE references.

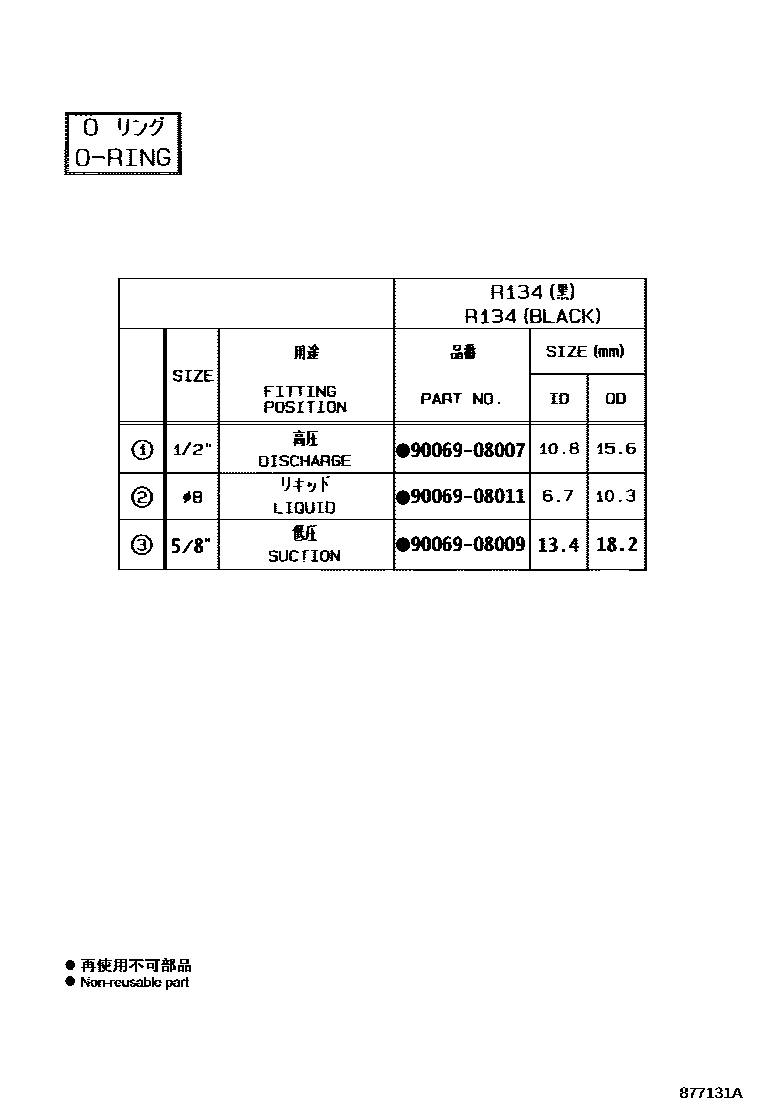

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-02060 · 88375-0E020 |
| 88375D | No. 2 maintenance valve cover | 88375-02070 · 88375-0E030 |
| 88460 | Air conditioning condenser assembly | 88460-06230 |
| 88474 | cooler dryer | 88474-17010 |
| 88482B | Cooler cover No. 1 | 88482-08010 |
| 88704 | Oil suction hose sub-assembly | 88704-06440 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-06330 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06430 |
| 88719A | Air conditioning pressure sensor | 88719-33020 |
