Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

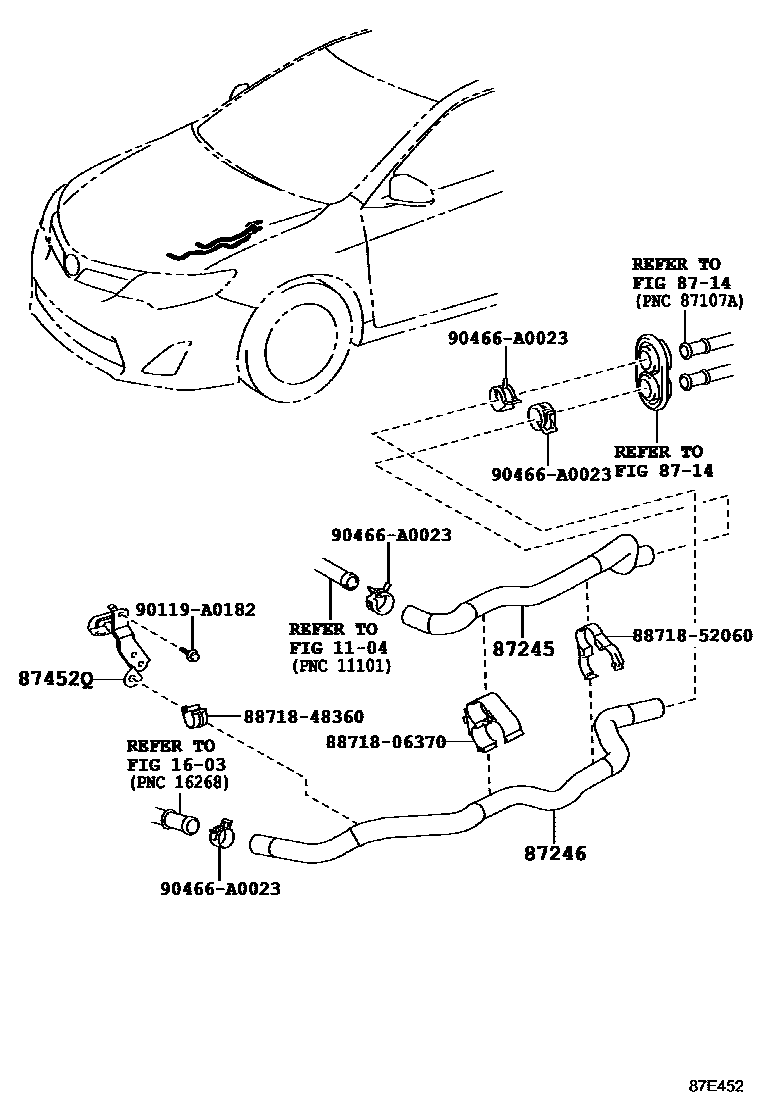

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-06830 |
| 87246 | Heater outlet hose | 87245-06C70 |
| 87452Q | Heater Bracket No. 1 | 87121-06010 |
