Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

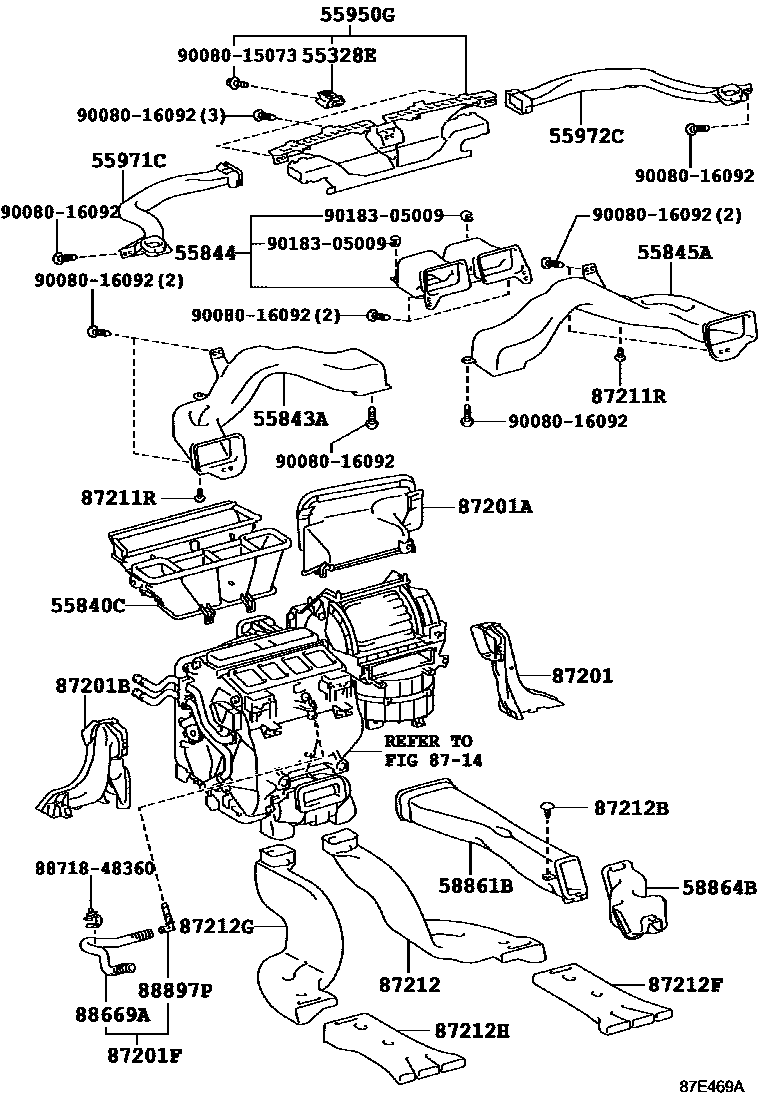

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55328E | Instrument panel pin 1 | 55328-60090 |
| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-06090 |
| 55843A | Air duct No. 1 from heater to air register | 55843-06160 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-06170 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-06060 |

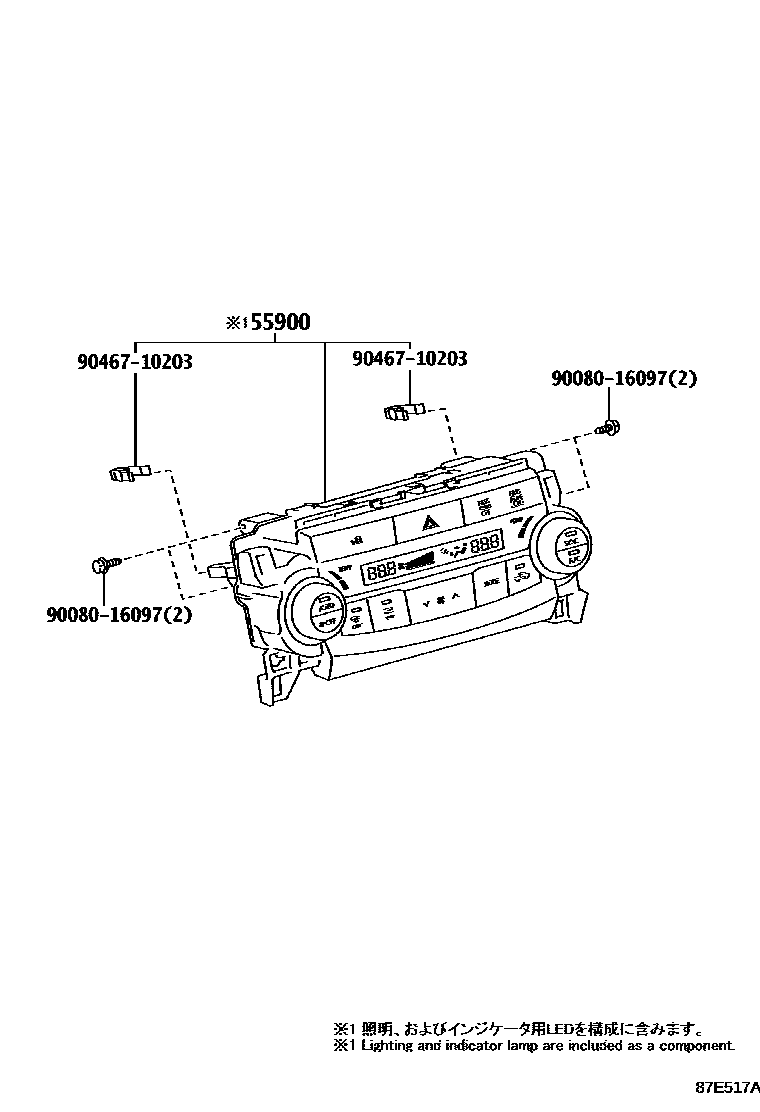

| 55900 | Air conditioning control assembly | 55900-06310 |
| 55950G | Defroster nozzle assembly | 55950-06100 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06050 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06050 |
| 58861B | Air duct No. 1 for armrest box | 58861-06060 |
| 58864B | Armrest box No. 4 air duct | 58864-06040 |
| 87201 | No. 1 air duct sub-assembly | 87201-06440 |
| 87201A | Air duct sub-assembly | 87201-07120 |
| 87201B | No. 2 air duct sub-assembly | 87201-06430 |
| 87201F | No. 3 air duct sub-assembly | 87201-06450 |
| 87212 | No. 1 rear air duct | 87212-07040 |
| 87212F | No. 2 rear air duct | 87215-07010 |
| 87212G | No. 3 rear air duct | 87213-07040 |
| 87212H | No. 4 rear air duct | 87216-07010 |

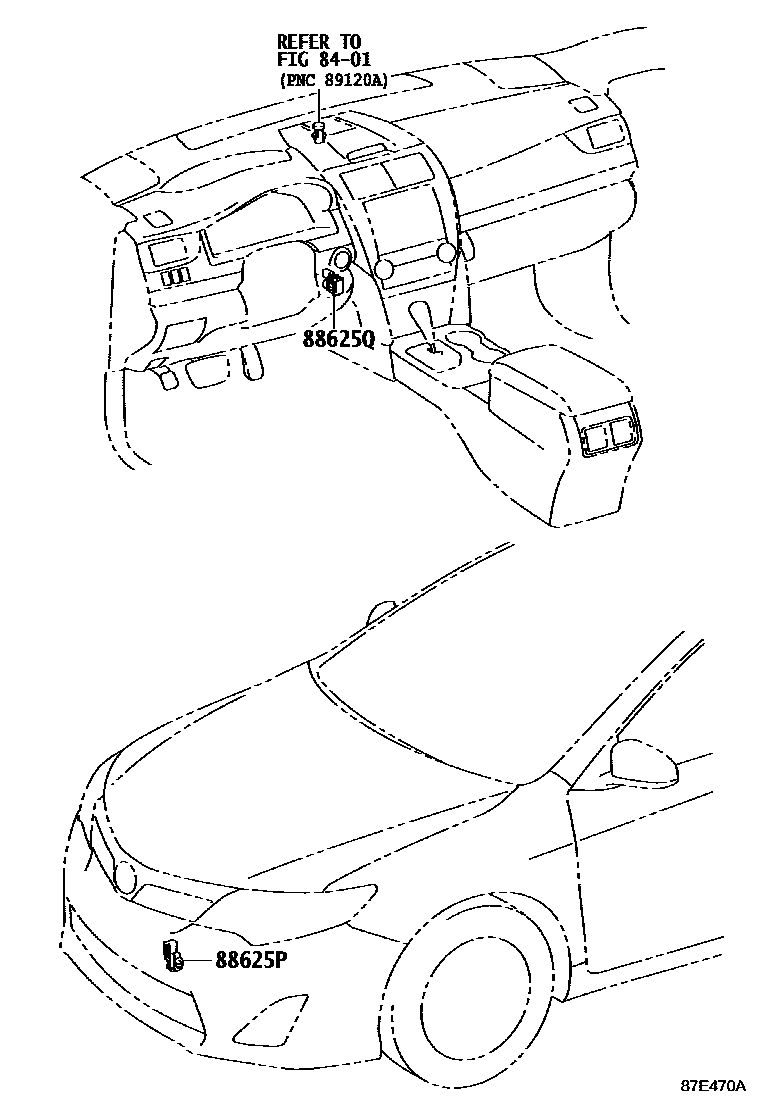

| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-06010 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-06040 |
| 88669A | Hoses (for cooler thermistor) | 88669-06060 |
| 88897P | aspirator | 88897-07010 |
