Toyota CAMRY 喇叭 — Figure 8611

Toyota CAMRY EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.

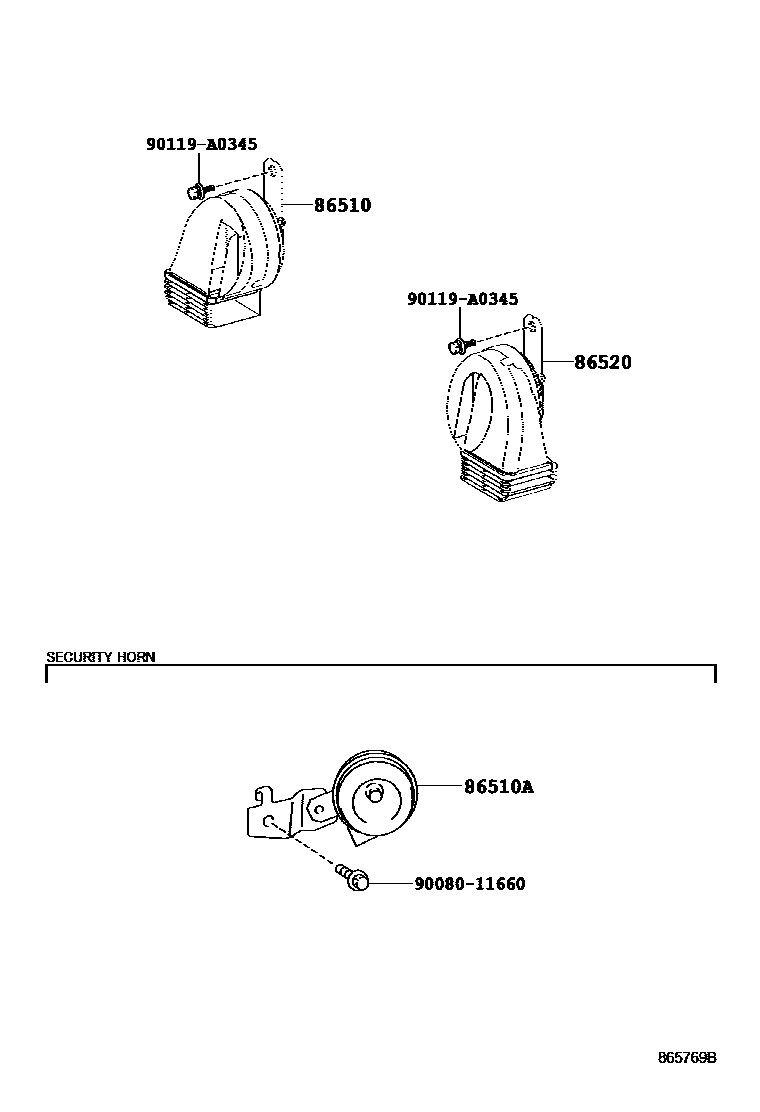

Toyota CAMRY 喇叭 EPC diagram — 865769B
喇叭 — 865769B (201504 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-0E040
86510AAlarm horn assembly86560-06050
86520Subwoofer assembly86520-0E020
