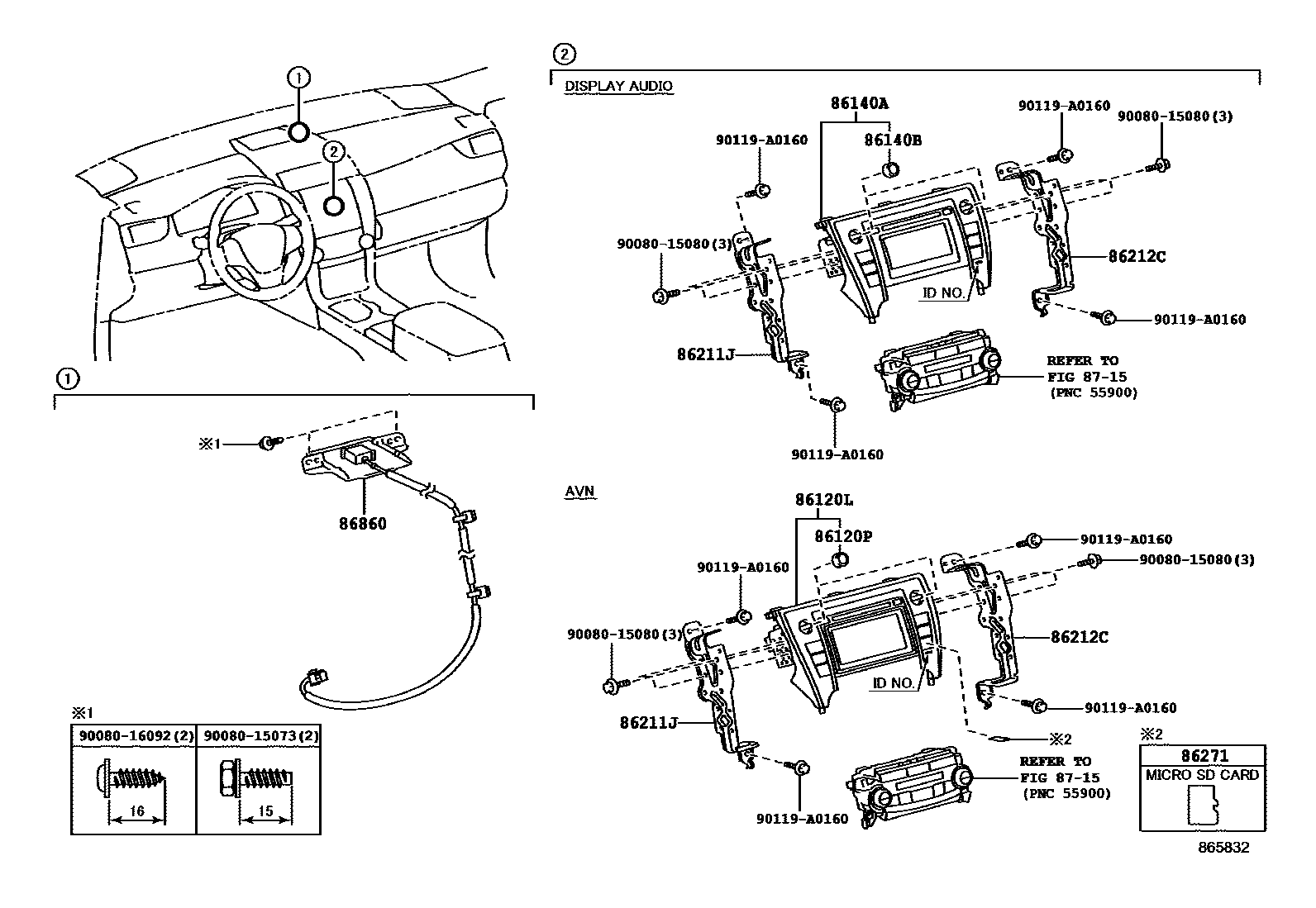

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86804-06120 |
| 86120P | Navigation receiver switch button | 86128-06100 |
| 86140A | Radio and display receiver assembly | 86140-06240 · 86140-06760 |
| 86140B | Radio and display receiver switch button | 86128-06110 |
| 86211J | No. 1 radio bracket | 86211-06210 |
| 86212C | No. 2 radio bracket | 86212-06210 |
| 86271 | CD | 86271-06040 · 86271-06041 · 86271-06042 |
| 86860 | Navigation antenna assembly | 86860-06080 |
