Toyota CAMRY 开关和继电器和ECU — Figure 8401
Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 7 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

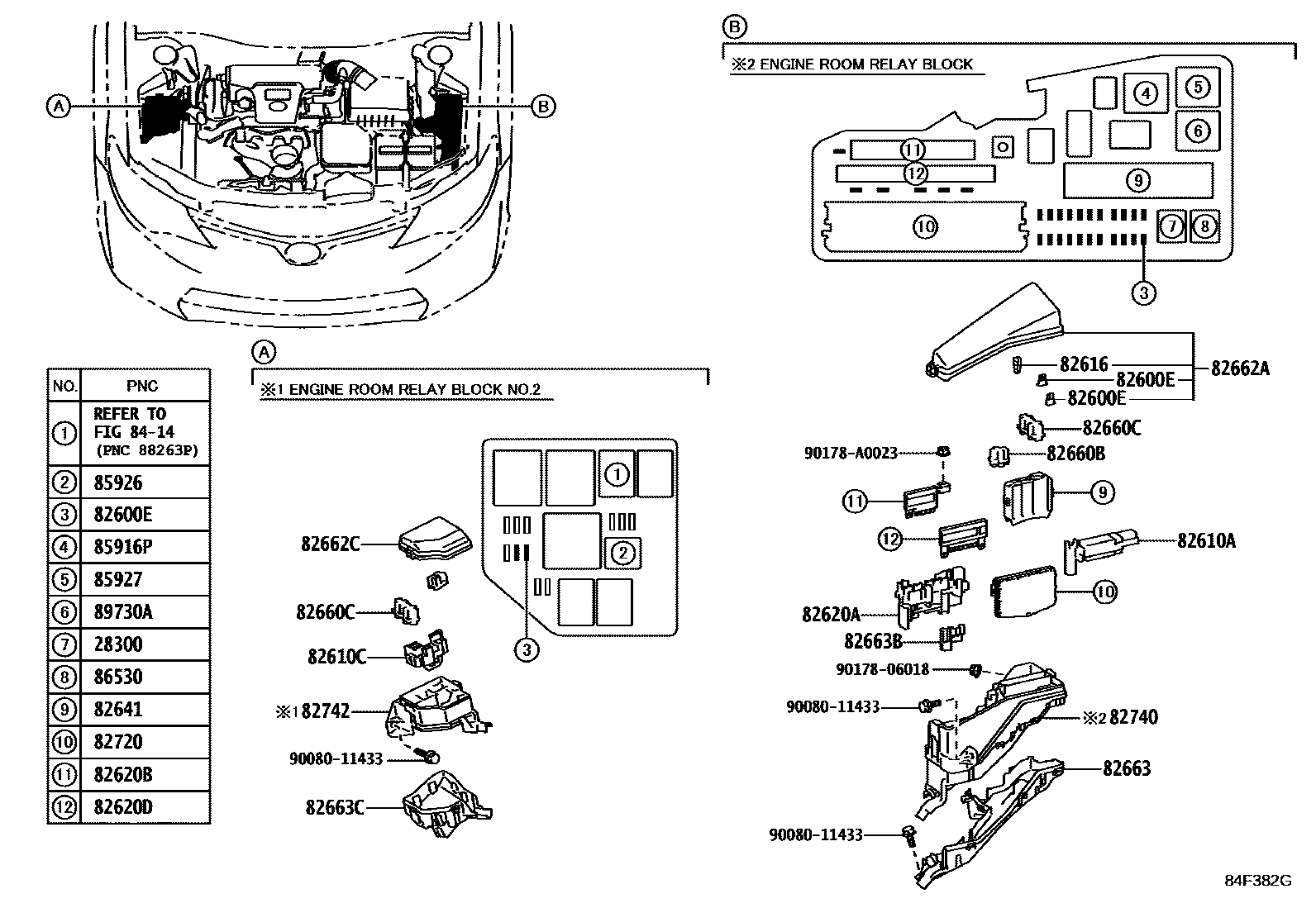

| 28300 | Starter relay assembly | 28300-0A010 · 28300-0A011 |

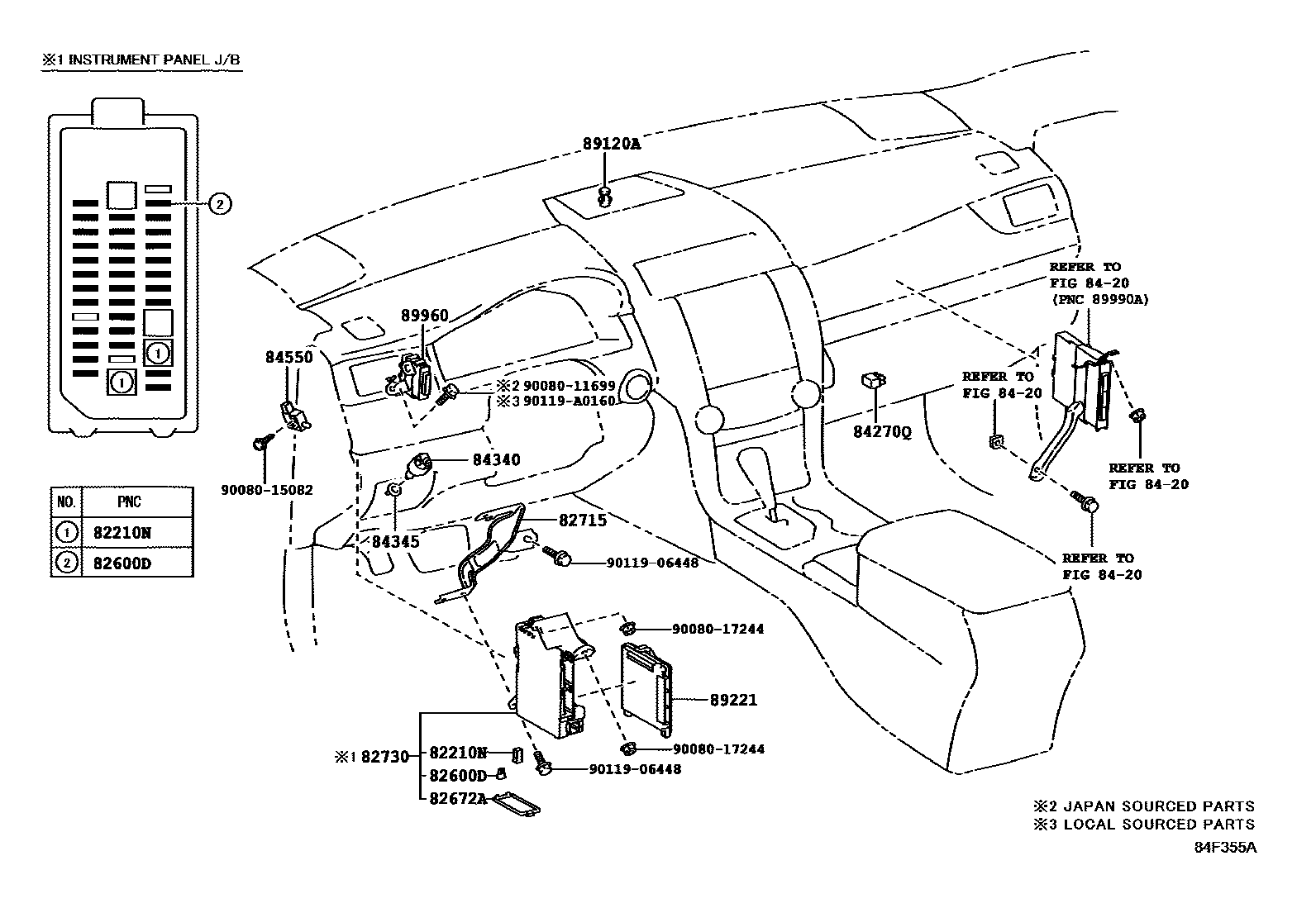

| 82210N | Instrument panel fuse | 90982-08306 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82610A | Fuse box assembly | 82610-33090 |
| 82610C | Fuse box assembly | 82610-33100 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33050 |
| 82620B | Fuse box assembly | 82620-33070 |
| 82620D | Fuse box assembly | 82620-33060 |
| 82641 | Integrated relay No. 1 | 82641-33150 |
| 82660B | Relay assembly | 82660-48030 |
| 82660C | Relay assembly | 82660-33030 |
| 82662A | No. 1 relay box upper cover | 82662-06170 |
| 82662C | No. 3 relay box upper cover | 82662-06440 |
| 82663 | Relay box lower cover | 82663-33110 |
| 82663B | No. 3 relay box lower cover | 82663-33170 |
| 82663C | No. 4 relay box lower cover | 82663-33200 |
| 82672A | Junction box cover | 82672-06243 |
| 82715 | Wire harness clamp bracket | 82715-06F90 |
| 82720 | Engine room junction box assembly | 82720-06121 |
| 82730 | Instrument panel junction box assembly | 82730-06753 |
| 82740 | Engine room relay box assembly | 82740-33030 |
| 82742 | Engine room No. 2 relay box | 82742-33030 |
| 83320 | Fuel gauge sensor assembly | 83320-33141 |

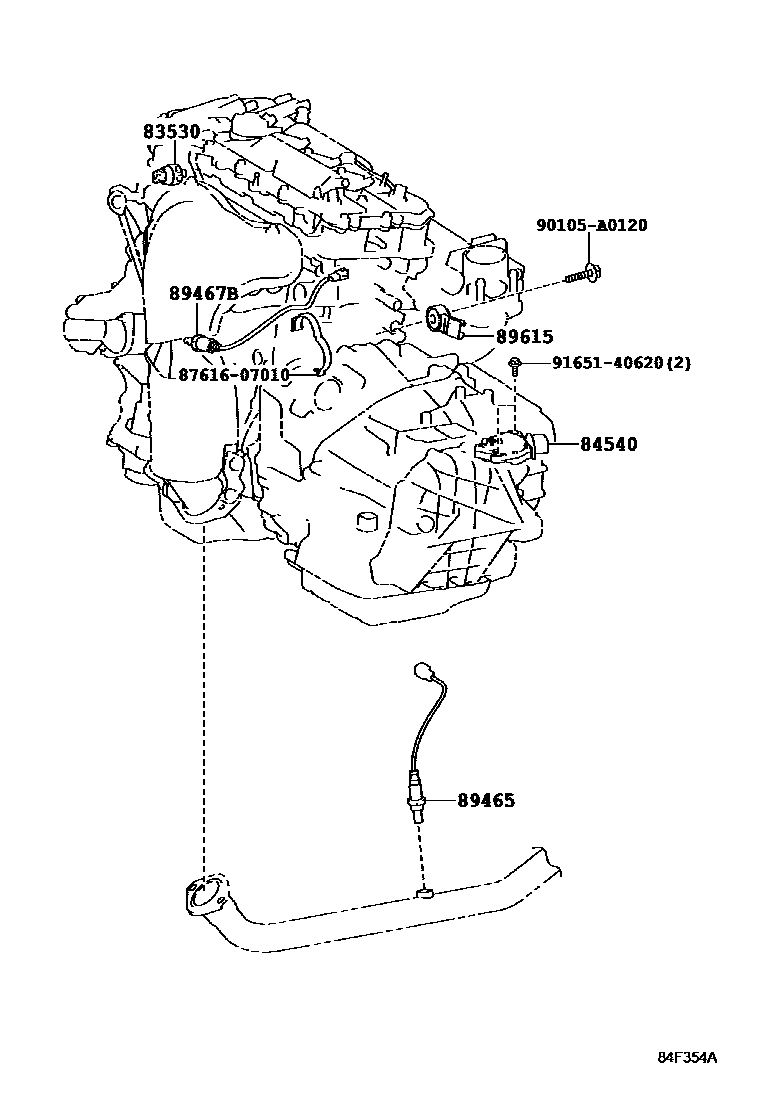

| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-28020 · 83530-60020 |

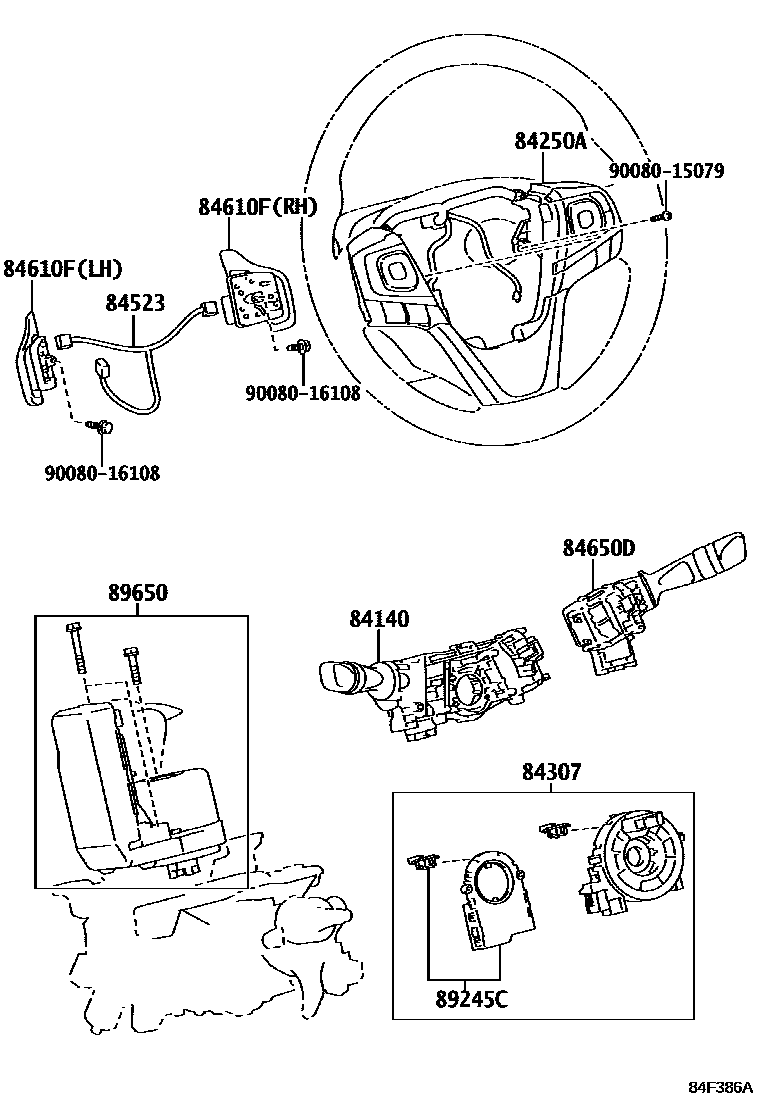

| 84140 | Headlight dimmer switch assembly | 84140-06510 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06570 |
| 84270Q | headlight relay | 90080-87026 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-02220 |
| 84340 | brake light switch assembly | 84340-09070 · 84340-09310 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-33010 |
| 84550 | Parking brake switch assembly | 84550-0E010 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06240 |

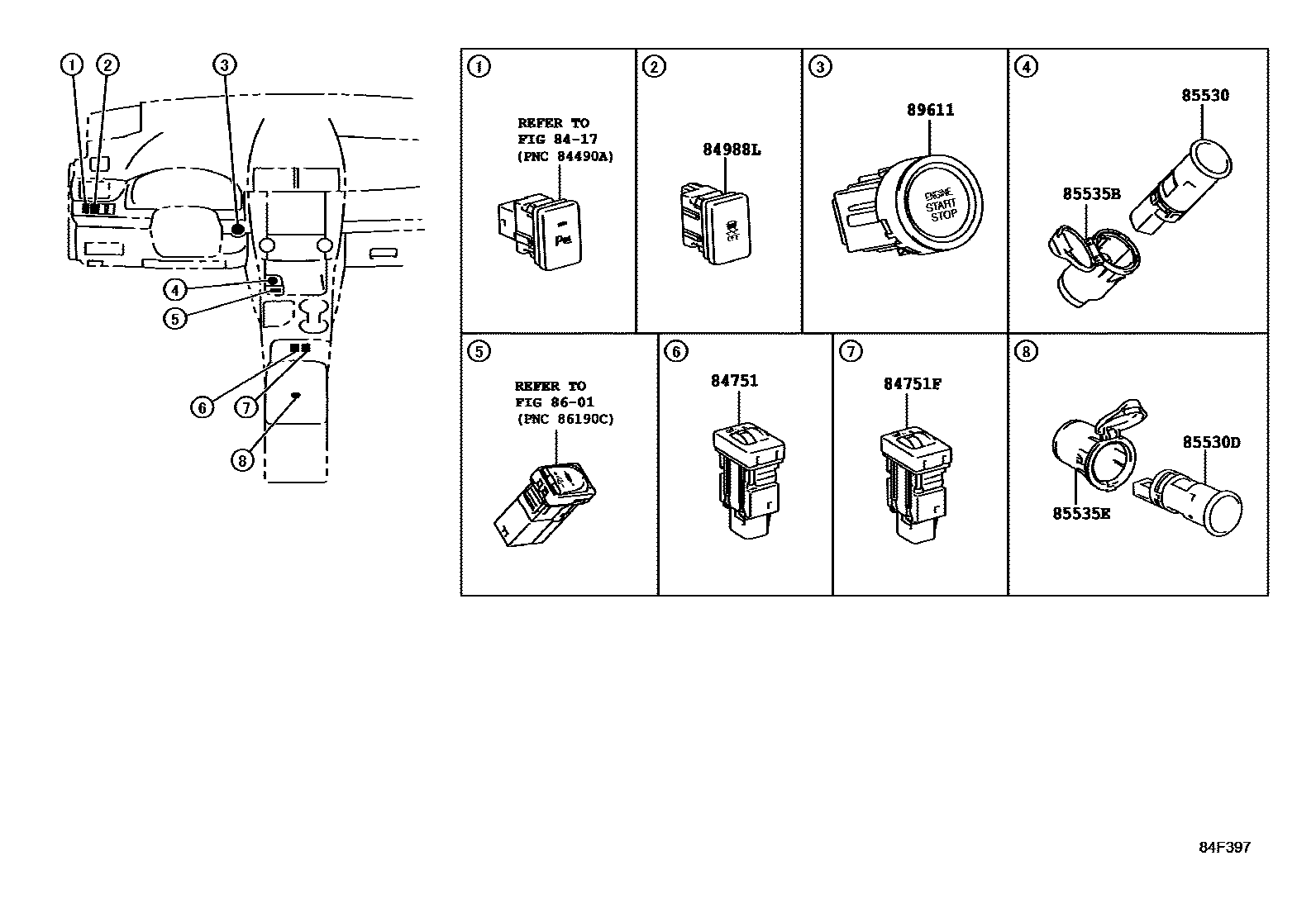

| 84751 | Seat heater switch | 84751-06121 |
| 84751F | Seat heater switch | 84751-06111 |

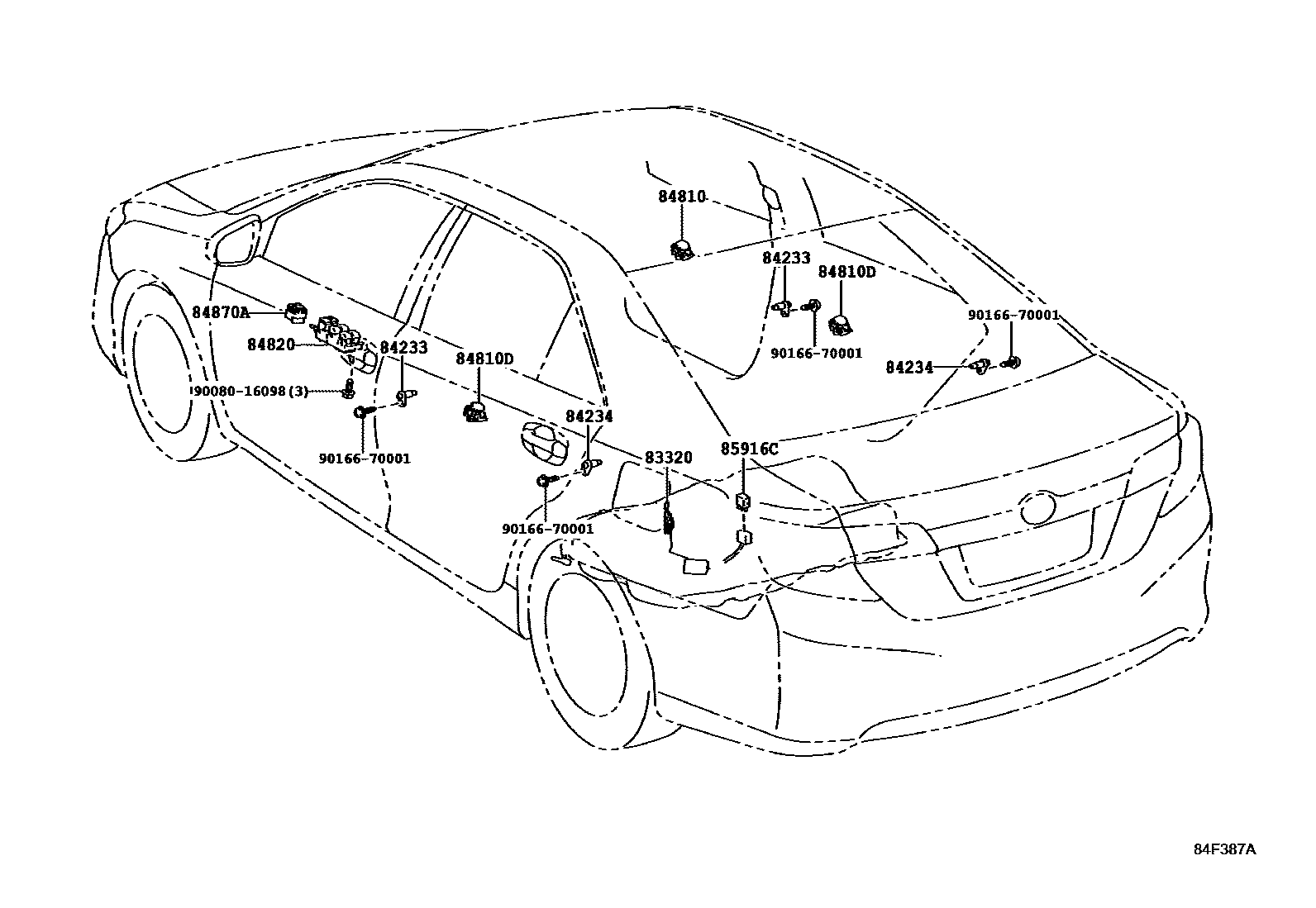

| 84810 | Electric window lift switch assembly | 84810-0E040 |
| 84810D | Rear electric window lift switch assembly | 84810-0E050 |
| 84820 | Electric window lift main switch assembly | 84820-06120 |
| 84870A | Exterior rearview mirror switch assembly | 84872-02190 |

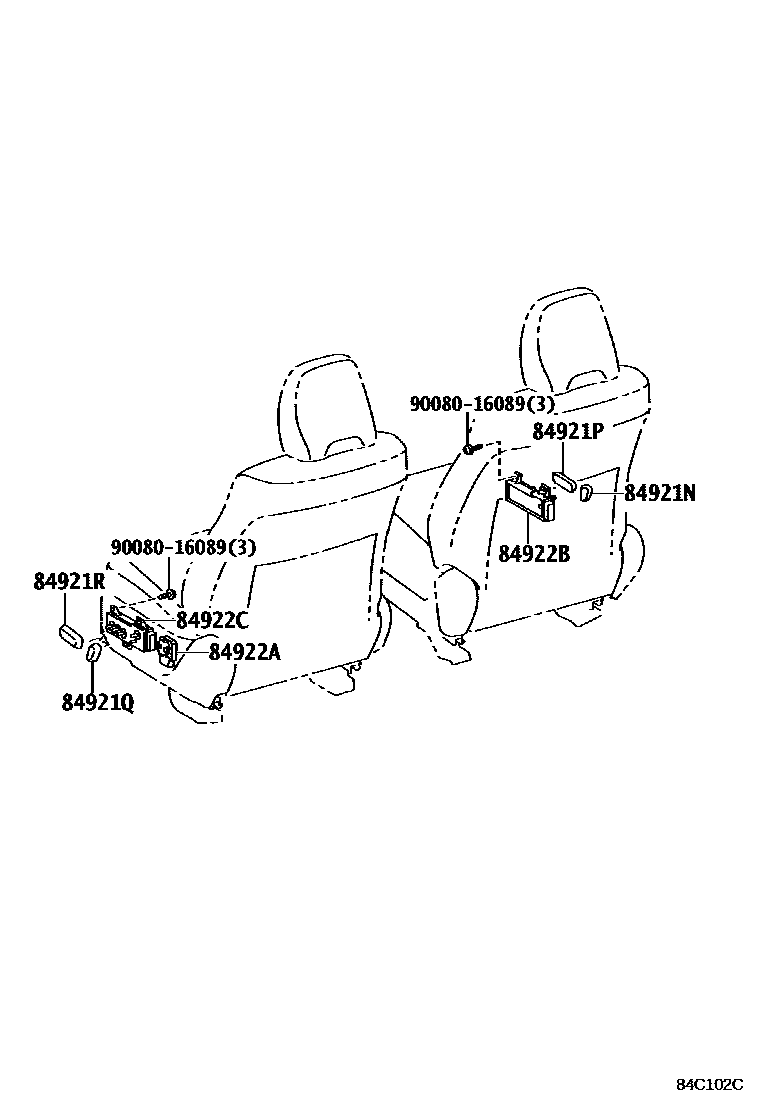

| 84922B | Front right electric seat switch | 84922-08010 |
| 84922C | Front left electric seat switch | 84922-08020 |
| 84988L | VSC off switch | 84988-0R071 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85530D | No. 2 power socket assembly | 85530-06030 |
| 85916C | Reversing light relay | 90080-87026 |
| 85916P | headlight relay | 90080-87024 |
| 85926 | Headlight dimmer relay | 90080-87026 |
| 85927 | cooling fan relay | 90084-98032 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 89120A | Automatic light control sensor | 89121-06020 |
| 89221 | Multi-channel network body ECU | 89220-06420 · 89220-06430 |
| 89245C | steering sensor | 8924B-0E020 |
| 89465 | oxygen sensor | 89465-06290 |
| 89467B | air fuel ratio sensor | 89467-06120 |
| 89611 | One-button start switch | 89611-0R020 · 89611-0R021 · 89611-0R022 |
| 89615 | knock control sensor | 89615-06010 |
| 89650 | Power steering ECU assembly | 89650-06200 · 89650-06201 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33451 |
