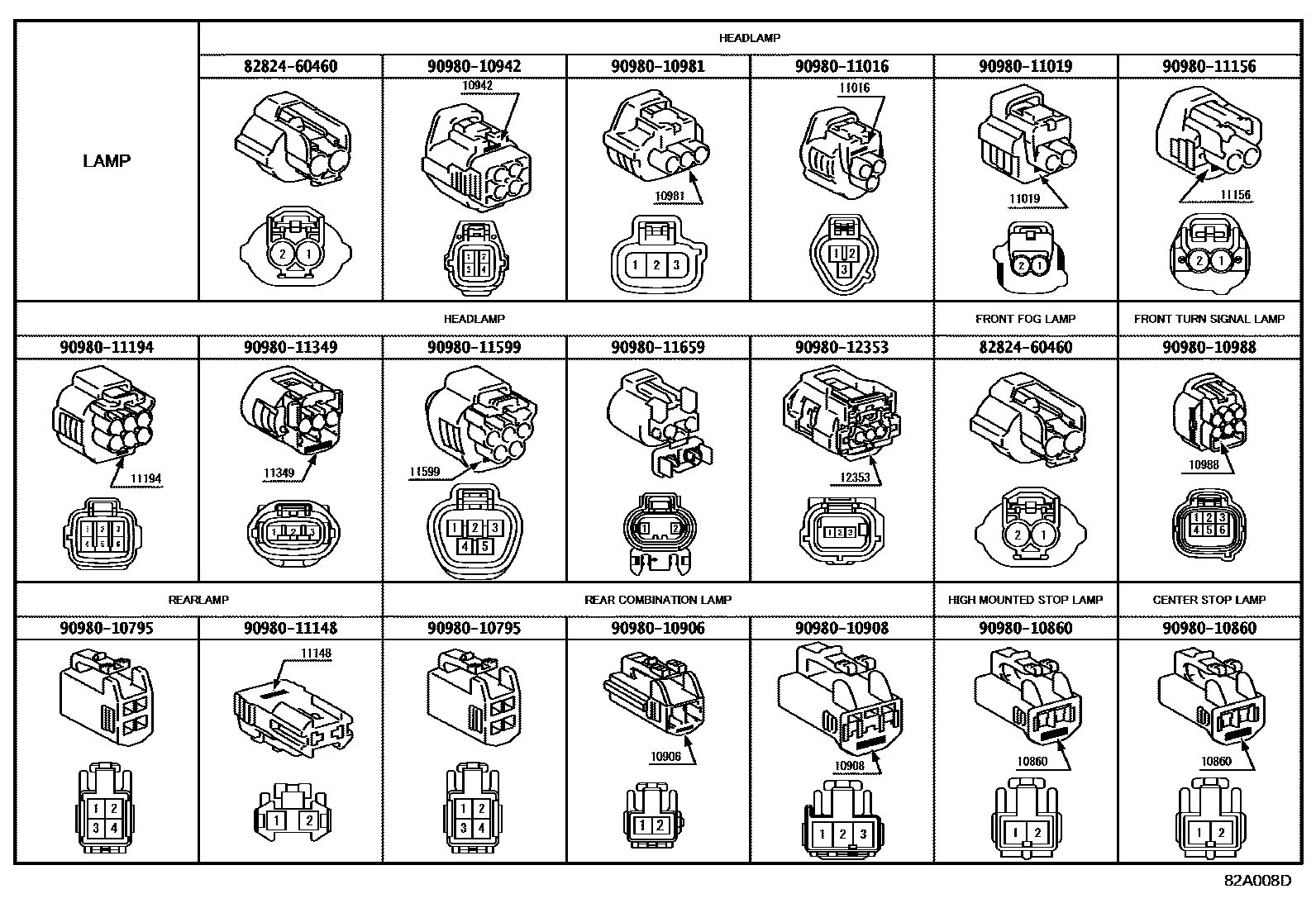

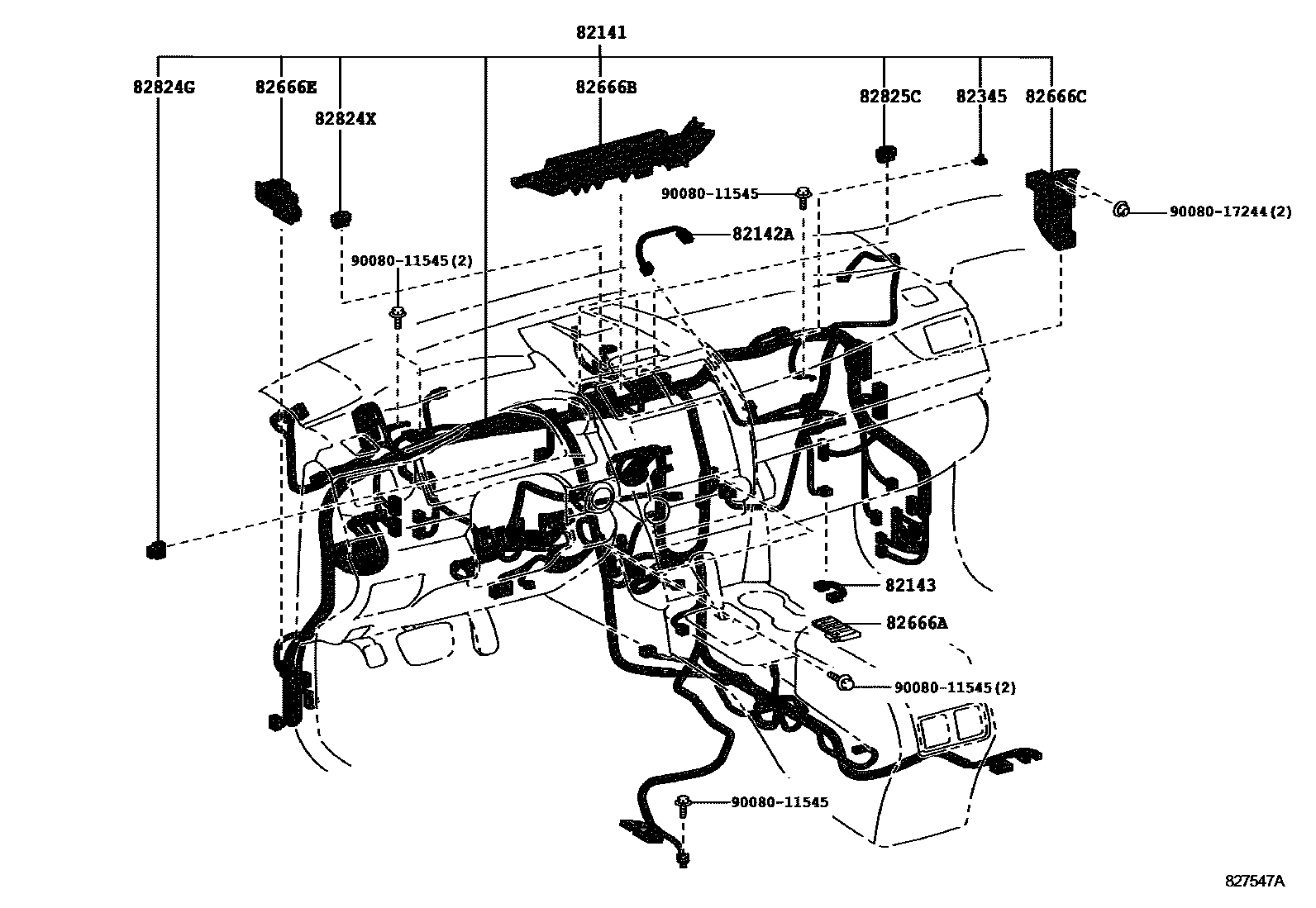

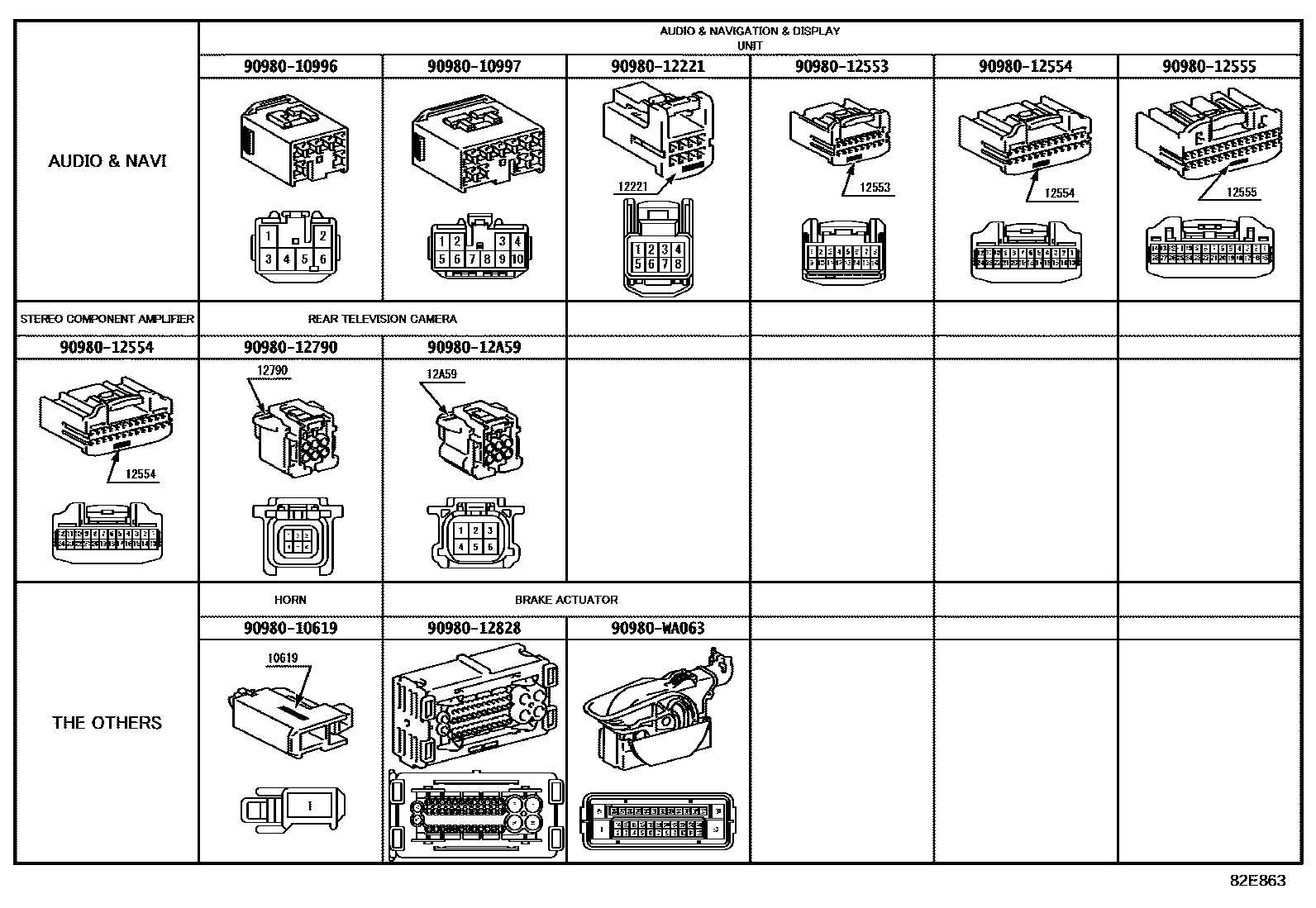

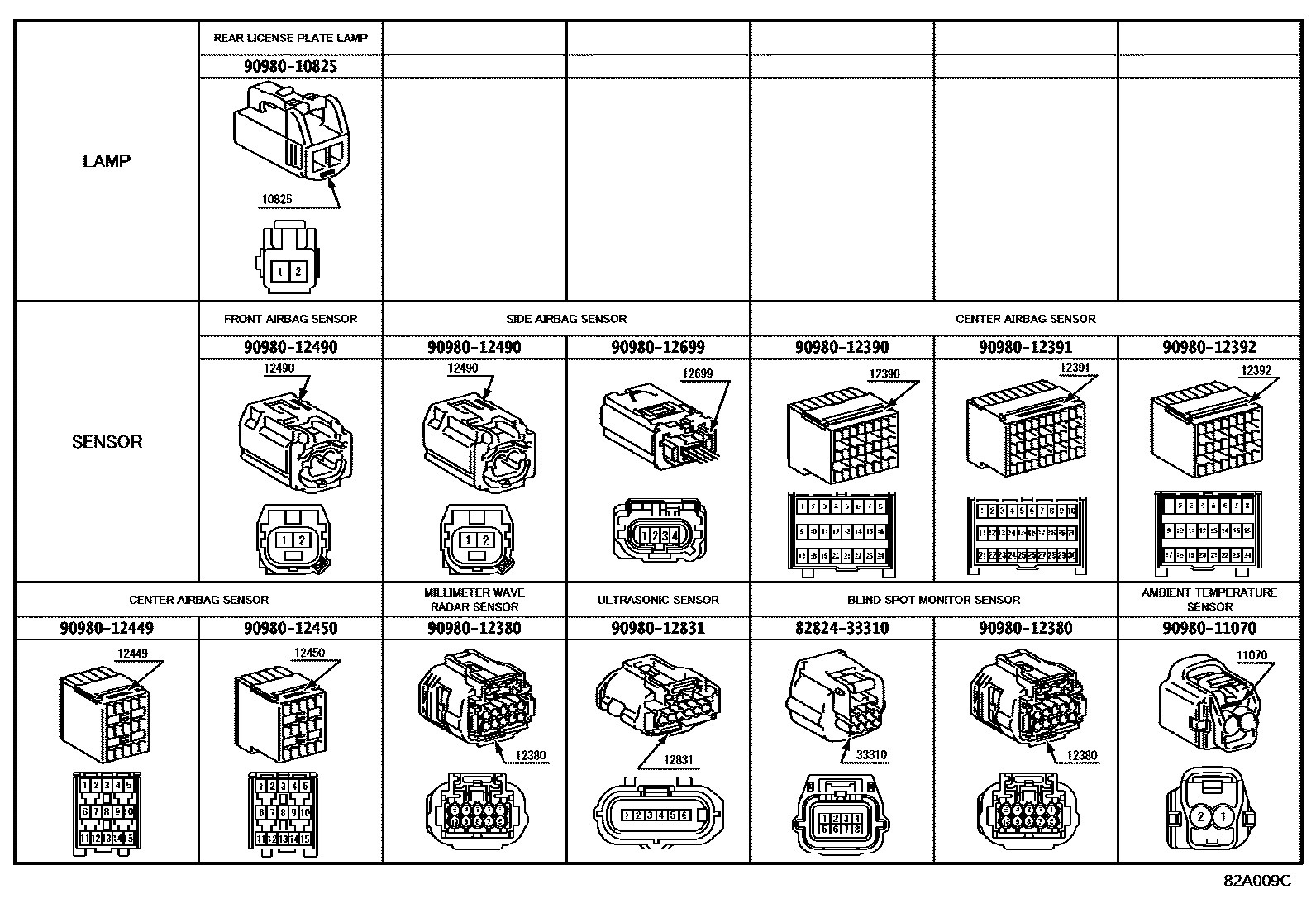

Toyota CAMRY 线束和卡夹 — Figure 8202
Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 10 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

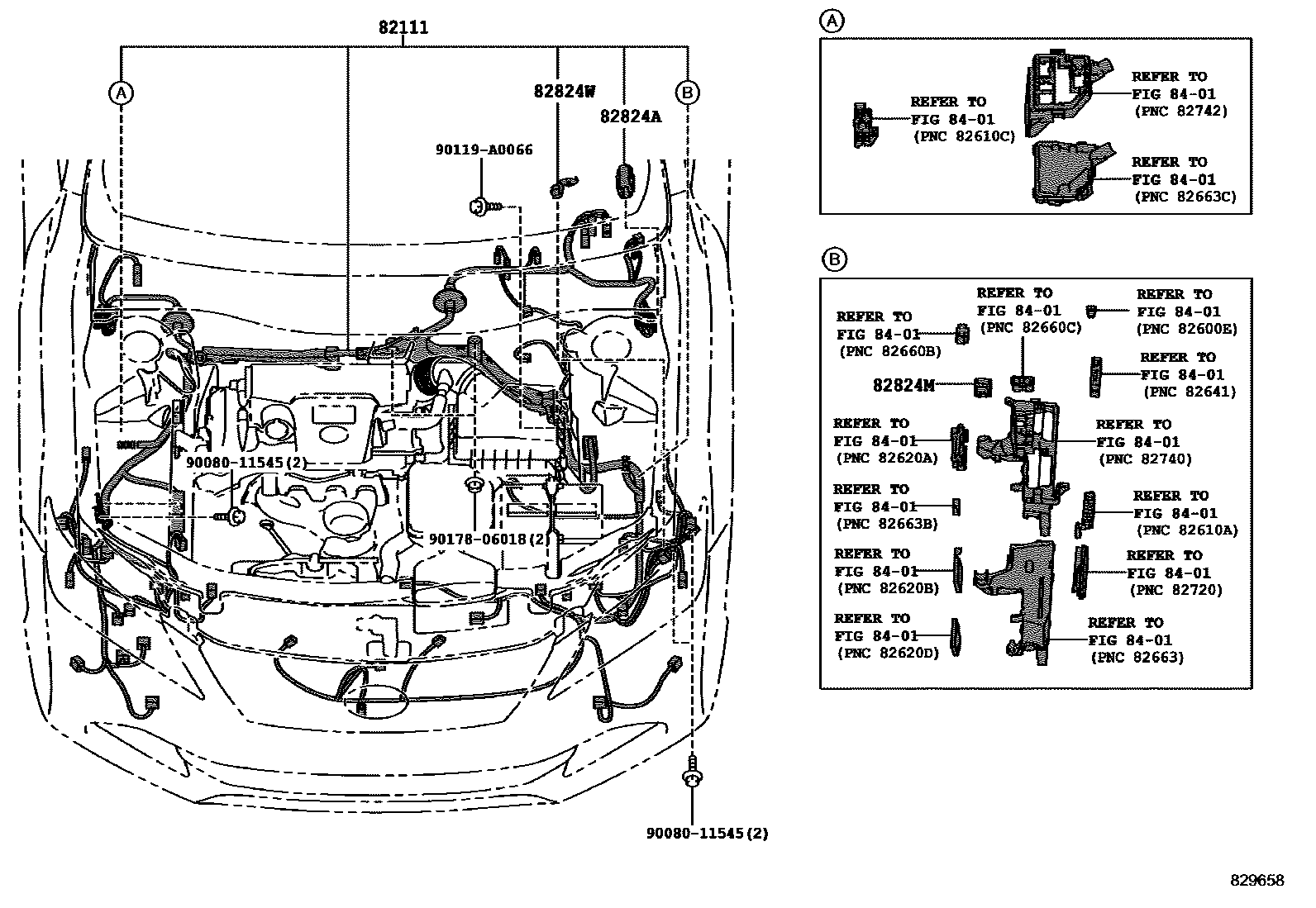

| 82111 | Engine room main wiring harness | 82115-06M31 |

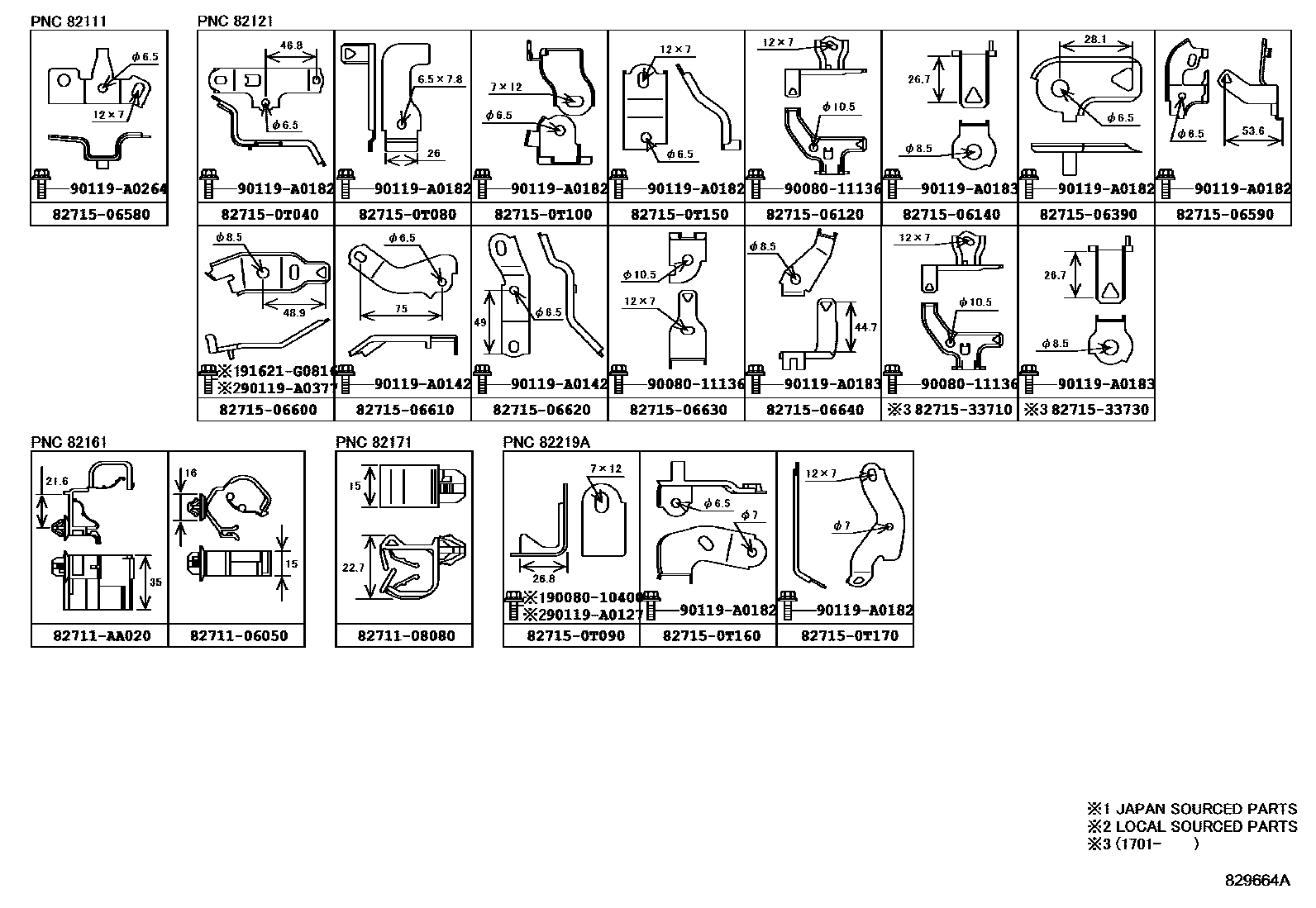

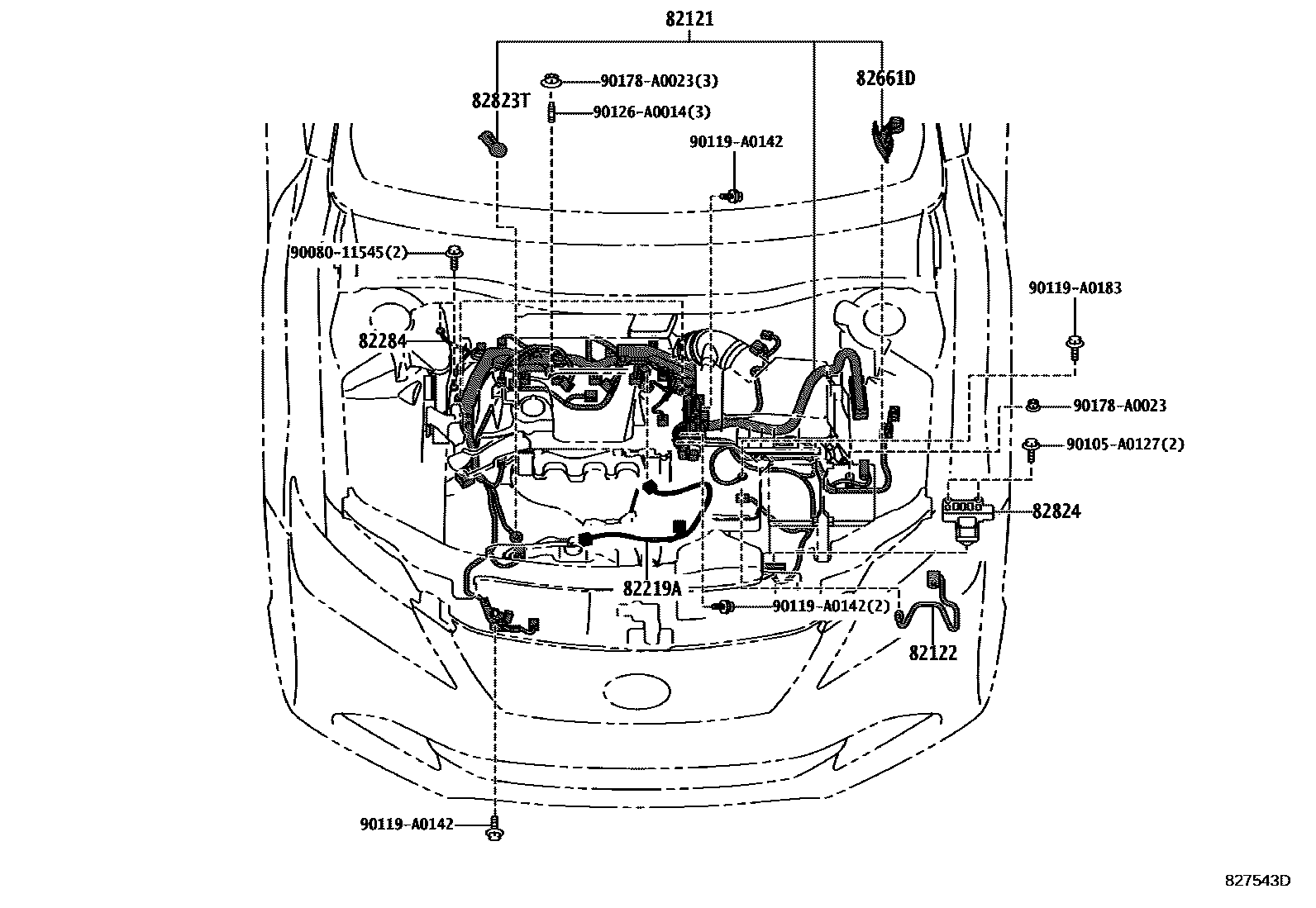

| 82121 | Engine wiring harness | 82121-06D60 |
| 82122 | Engine No. 2 wiring harness | 82122-06190 |
| 82141 | Dashboard wiring harness | 82141-0XK40 · 82141-0XK41 · 82141-0XY50 · 82141-0XY51 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-06030 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-06430 |

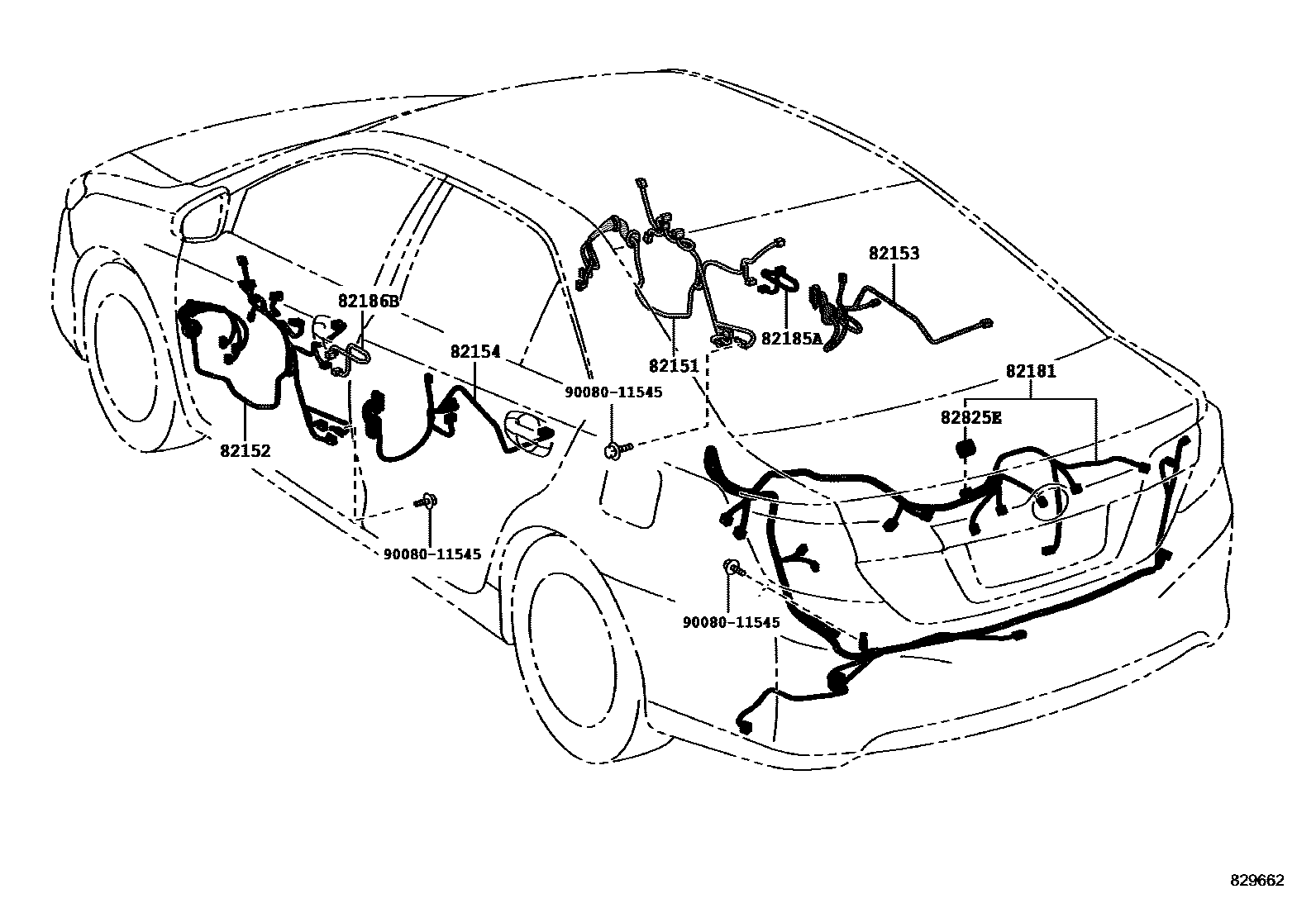

| 82151 | Right front door wiring harness | 82151-06J40 |
| 82152 | Left front door wiring harness | 82152-06K30 |
| 82153 | Rear door wiring harness No. 1 | 82153-06510 |
| 82154 | Rear door wiring harness No. 2 | 82154-06510 |

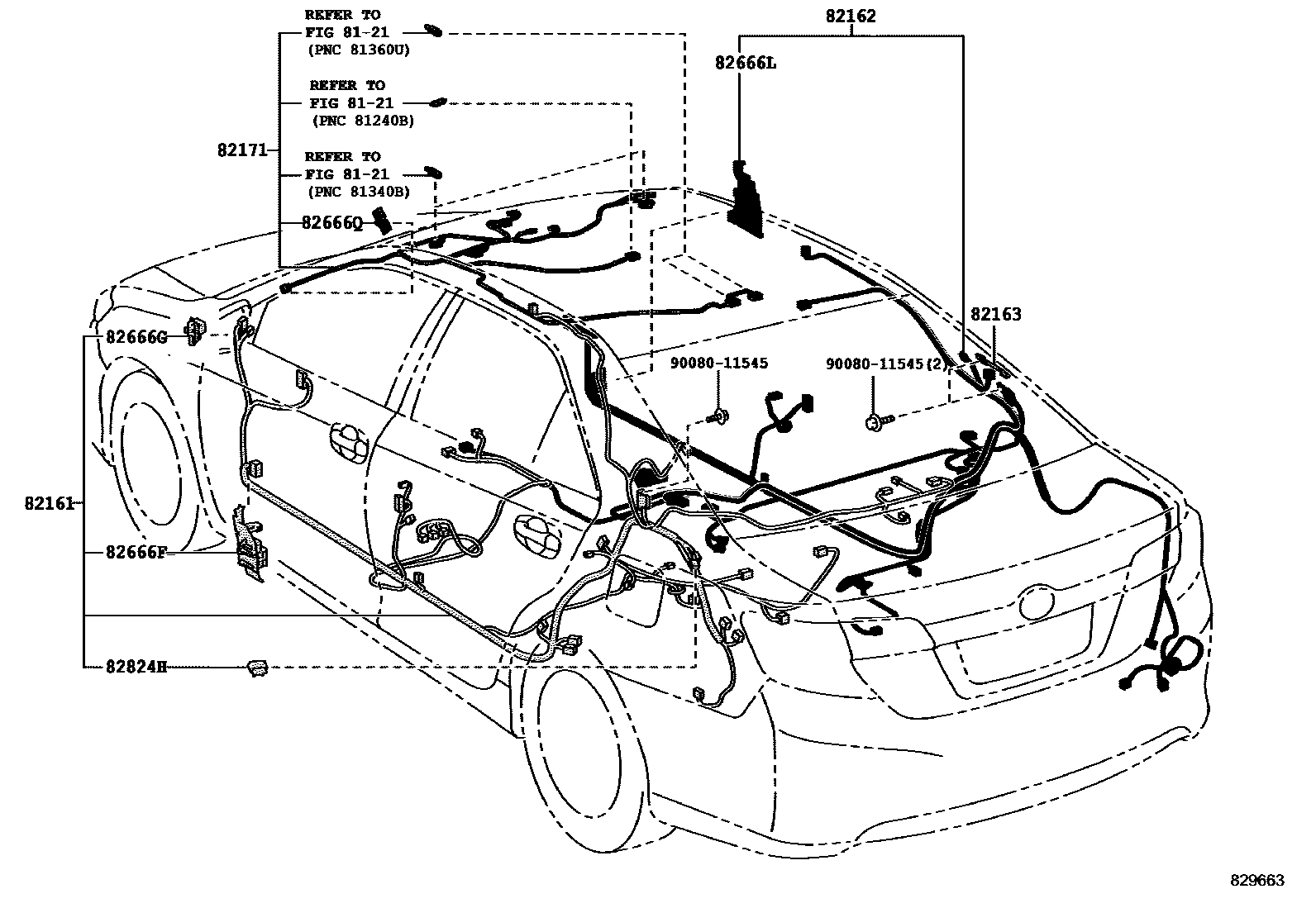

| 82161 | floor wiring harness | 82161-0XJ00 · 82161-0XJ01 |
| 82162 | Floor wiring harness No. 2 | 82162-06S90 · 82162-0X310 · 82162-0X320 |
| 82163 | Floor wiring harness No. 3 | 82163-06180 |
| 82171 | Roof No. 1 wiring harness | 82171-06L20 · 82171-06L30 · 82171-06L60 · 82171-06L61 · 82171-06L70 · 82171-06L71 |
| 82181 | Luggage No. 1 wiring harness | 82181-06E10 |
| 82185A | Right front smart door wiring harness | 82185-06110 |
| 82186B | Left front smart door wiring harness | 82186-06060 |

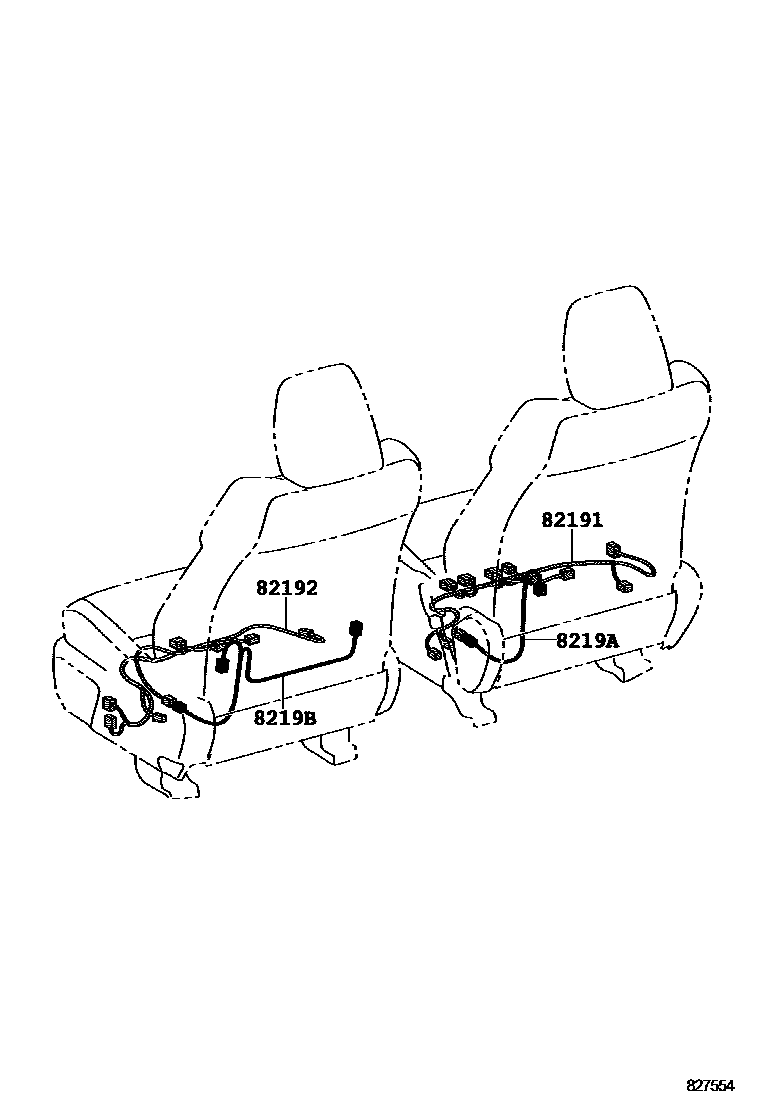

| 82191 | Front right seat wiring harness | 82191-06380 · 82191-06390 |
| 82192 | Front left seat wiring harness | 82192-06300 · 82192-06310 |
| 8219A | Wire harness No. 2, right side of front seat | 82191-06520 |
| 8219B | Wire harness No. 2, left side of front seat | 82192-06460 |
| 82219A | sensor harness | 82219-73010 |
| 82284 | Ground wire | 82284-06030 |
| 82345 | diode | 82345-12050 |
| 82661D | No. 1 relay box side cover | 82661-33020 |
| 82666A | Connector holder No. 2 | 82666-06150 |
| 82666B | No. 3 connector holder | 82666-33410 |
| 82666C | No. 4 connector holder | 82666-33420 |
| 82666E | No. 6 connector holder | 82666-33510 |
| 82666F | No. 7 connector holder | 82666-33470 |
| 82666G | No. 8 connector holder | 82666-33480 |
| 82666L | No. 9 connector holder | 82666-33490 |
| 82666Q | No. 12 connector holder | 82666-60220 |
| 82823T | Generator terminal cover | 82823-12090 |
| 82824 | Harness connector | 82824-33360 |
| 82824A | Harness connector | 82824-30180 |
| 82824G | Harness connector | 82824-30220 |
| 82824H | Harness connector | 82824-30220 |
| 82824M | Harness connector | 82824-52290 |
| 82824W | Harness connector | 82824-48020 |
| 82824X | Harness connector | 82824-50340 |
| 82825C | Harness connector | 82824-50360 |
| 82825E | Harness connector | 82824-30220 |
