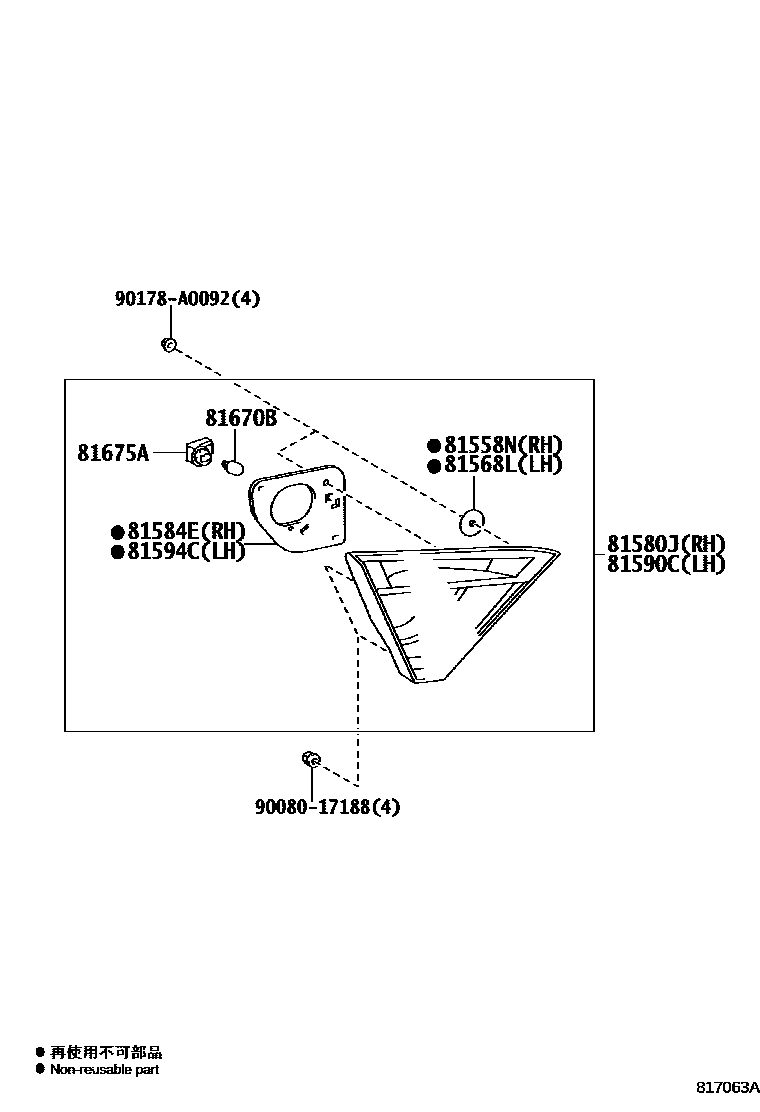

Toyota CAMRY 倒车灯 — Figure 8112
Toyota CAMRY EPC diagram 8112, 倒车灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81558N | Right rear combination lamp protective cover | 81558-06410 |
| 81568L | Left rear combination lamp protective cover | 81558-06410 |
| 81580J | Right rear light assembly | 81580-06410 |
| 81584E | Right rear light gasket | 81584-06410 |
| 81590C | Left rear light assembly | 81590-06410 |
| 81594C | Left rear light gasket | 81584-06410 |
| 81670B | Bulb (for reversing lights) | 90981-11059 |
| 81675A | Lamp holder plug (for reversing lights) | 90075-60037 |
