Toyota CAMRY 后组合灯 — Figure 8111

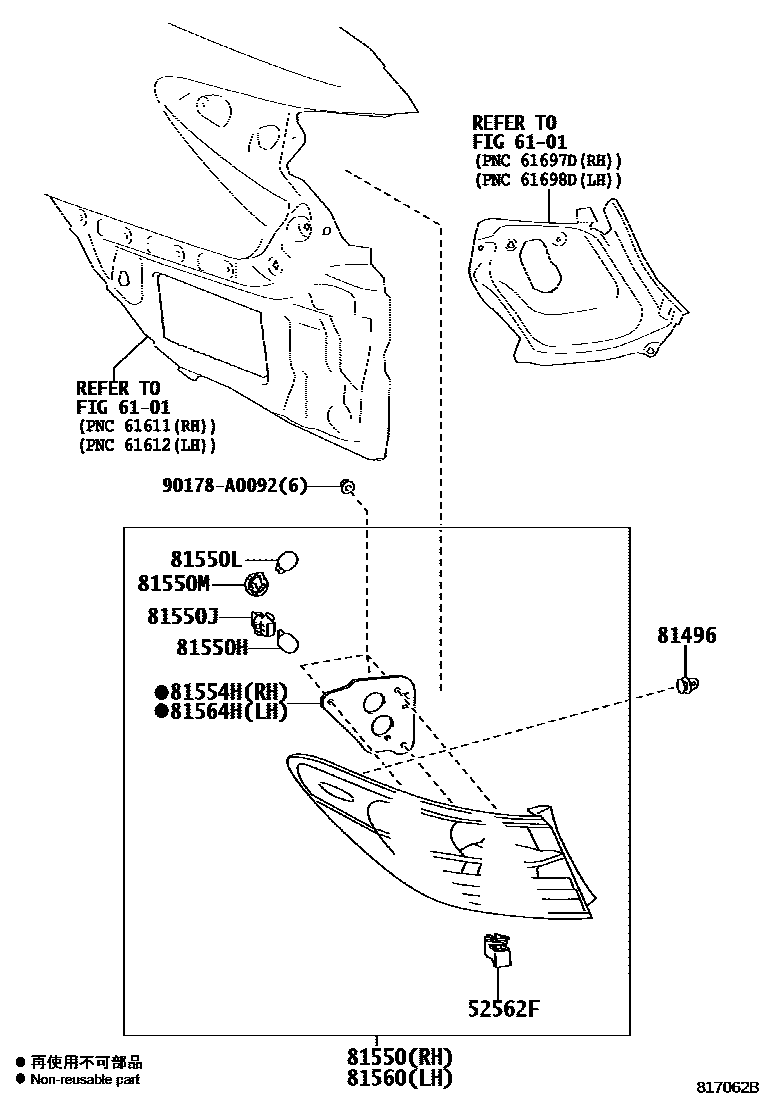

Toyota CAMRY EPC diagram 8111, 后组合灯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562F | Rear bumper upper side fixing bracket | 52562-06130 |
| 81496 | Rear combination light guide block | 81496-60010 |
| 81550 | Right rear combination light assembly | 81550-06640 |
| 81550H | Tail and brake light bulbs | 90981-13044 |
| 81550J | Tail and brake light holders | 90075-60079 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550M | Rear turn signal lamp holder | 90075-60026 |
| 81554H | Right rear combination lamp seal | 81554-06640 |
| 81560 | Left rear combination light assembly | 81560-06640 |
| 81564H | Left rear combination lamp seal | 81554-06640 |
