Toyota CAMRY Headlamp — Figure 8101

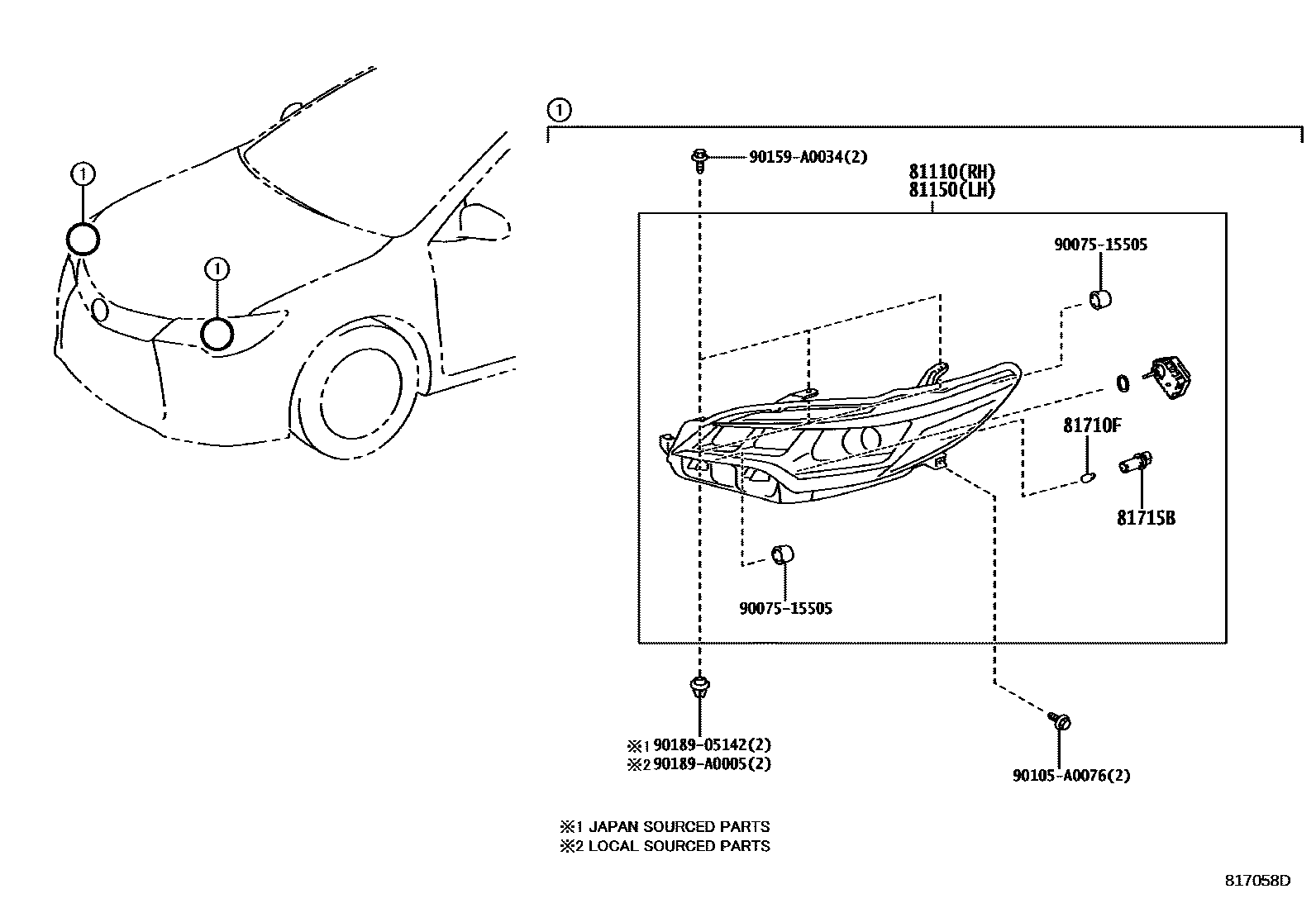

Toyota CAMRY EPC diagram 8101, Headlamp, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-06C80 |
| 81150 | Left headlight assembly | 81150-06C80 |
| 81710F | Front width light bulb | 99132-12050 |
| 81715B | Front width light lamp holder and wiring harness | 90075-60077 |
