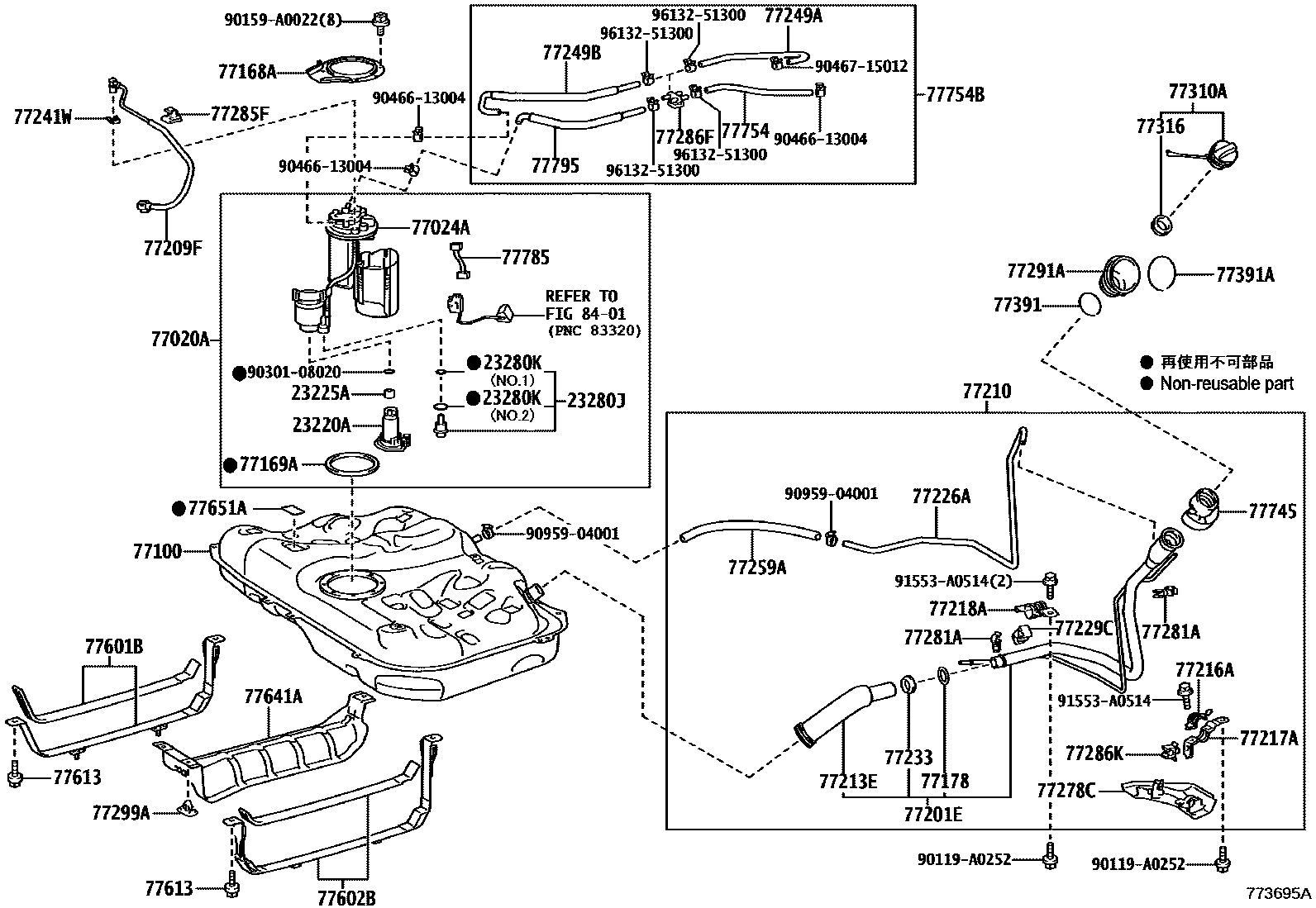

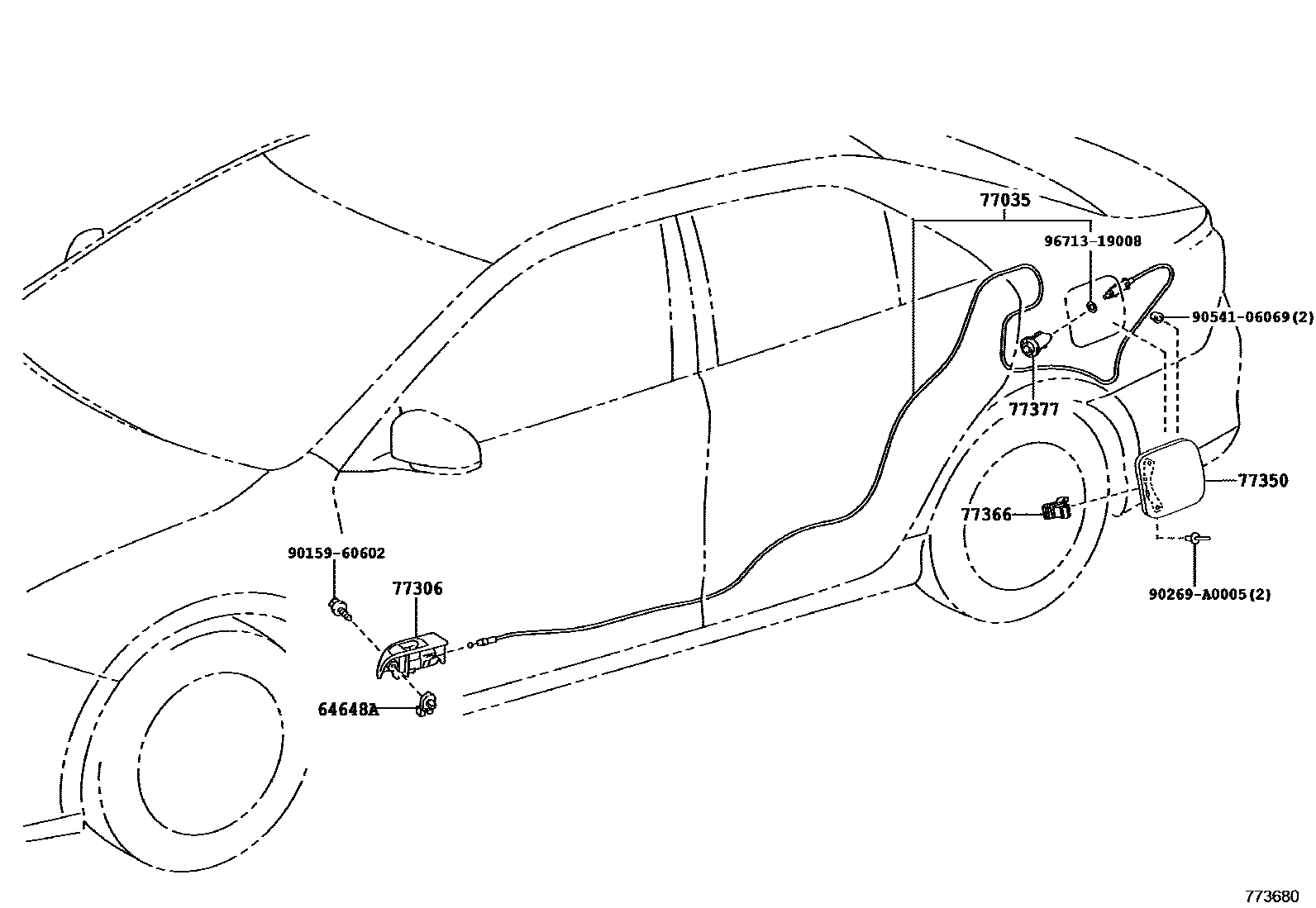

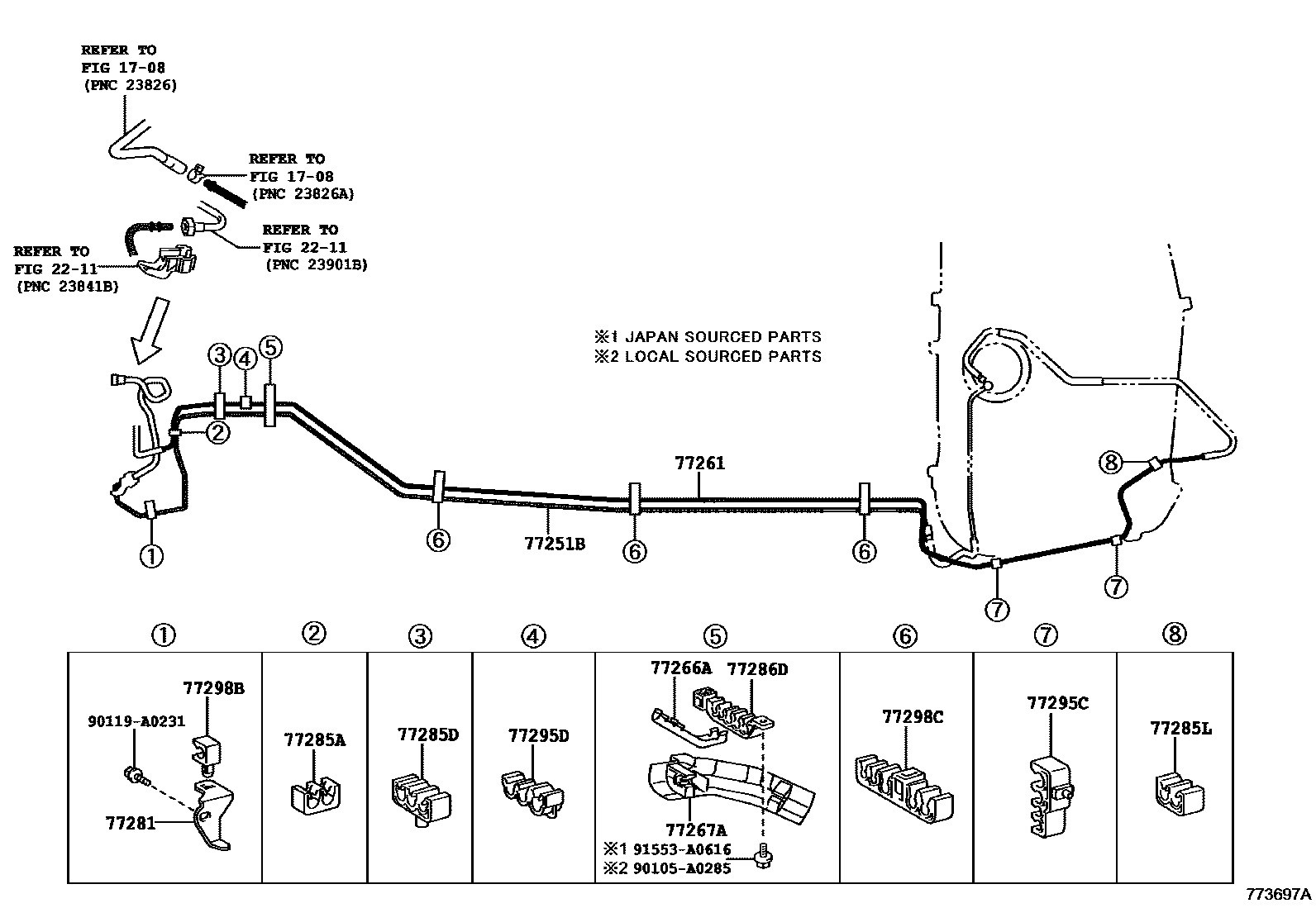

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 3 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-28181 |
| 23225A | fuel pump septum | 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 64648A | Trunk door lock opener seal | 64648-12020 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-33391 |
| 77024A | Fuel absorber sub-assembly | 77024-33150 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-06180 · 77035-06181 |
| 77100 | fuel tank assembly | 77001-07060 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-41010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-53010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-33020 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-33320 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-06052 |
| 77210 | Fuel tank filler pipe assembly | 77210-33450 |
| 77213E | Fuel tank to filler pipe hose | 77213-33110 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-33140 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-33080 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-33070 |
| 77226A | No. 6 fuel tank breather pipe | 77226-33070 |
| 77229C | Snorkel clamp | 77229-47060 |
| 77233 | fuel hose connector | 77233-33050 |
| 77241W | Pipe joint clip | 77241-06020 |
| 77249A | fuel drain hose | 77249-07050 |
| 77249B | fuel hose | 77249-07040 |
| 77251B | main fuel pipe | 77251-06140 |
| 77259A | Fuel hose (for breather pipe) | 95313-13038 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06230 |
| 77266A | No. 1 fuel line protection device | 77266-07010 |
| 77267A | No. 2 fuel pipe protection device | 77267-33030 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-33040 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06020 |
| 77281A | Fuel filler pipe clamp | 77281-33090 |
| 77285A | Fuel return pipe and main pipe bracket | 77285-42110 |
| 77285D | No. 1 fuel pipe clamp | 77285-06040 |
| 77285F | No. 1 fuel pipe clamp | 77285-33110 |
| 77285L | No. 1 fuel pipe clamp | 77285-06090 |
| 77286D | No. 2 fuel pipe clamp | 77286-06030 |
| 77286F | No. 2 fuel pipe clamp | 77286-07020 |
| 77286K | No. 2 fuel pipe clamp | 77286-42060 |
| 77291A | Fuel tank filler pipe cover | 77291-06160 |
| 77295C | Fuel pipe retaining ring | 77295-06030 |
| 77295D | Fuel pipe retaining ring | 77295-0E010 |
| 77298B | No. 4 fuel pipe clamp | 77298-30170 |
| 77298C | No. 4 fuel pipe clamp | 77298-06070 |
| 77299A | No. 5 fuel pipe clamp | 77299-06070 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 64606-06020 |
| 77310A | Fuel tank cap assembly | 77300-52030 |
| 77316 | fuel tank cap gasket | 77316-52040 |
| 77350 | Fuel filler cap assembly | 77350-06130 |
| 77366 | Fuel filler cap hinge spring | 77360-02030 |
| 77377 | Fuel filler cap lock retainer | 77377-75010 |
| 77391 | fuel inlet ring | 77391-02041 |
| 77391A | fuel inlet ring | 77391-06130 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06080 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06080 |
| 77613 | Fuel tank strap fixing bolts | 90119-10971 · 90119-A0267 |
| 77641A | No. 1 fuel tank protective shell | 77641-06010 |
| 77651A | No. 1 fuel tank liner | 77651-20090 |
| 77745 | No. 1 carbon canister filter | 77745-12050 |
| 77754 | No. 1 carbon canister outlet hose | 95326-09028 |
| 77754B | Carbon canister outlet hose | 77754-07010 |
| 77785 | fuel pump wiring harness | 77785-12010 |
| 77795 | No. 2 carbon canister outlet hose | 77795-07010 |
