Toyota CAMRY 侧防护条 — Figure 7503

Toyota CAMRY EPC diagram 7503, 侧防护条, with 1 images and 30 PNC and OE references.

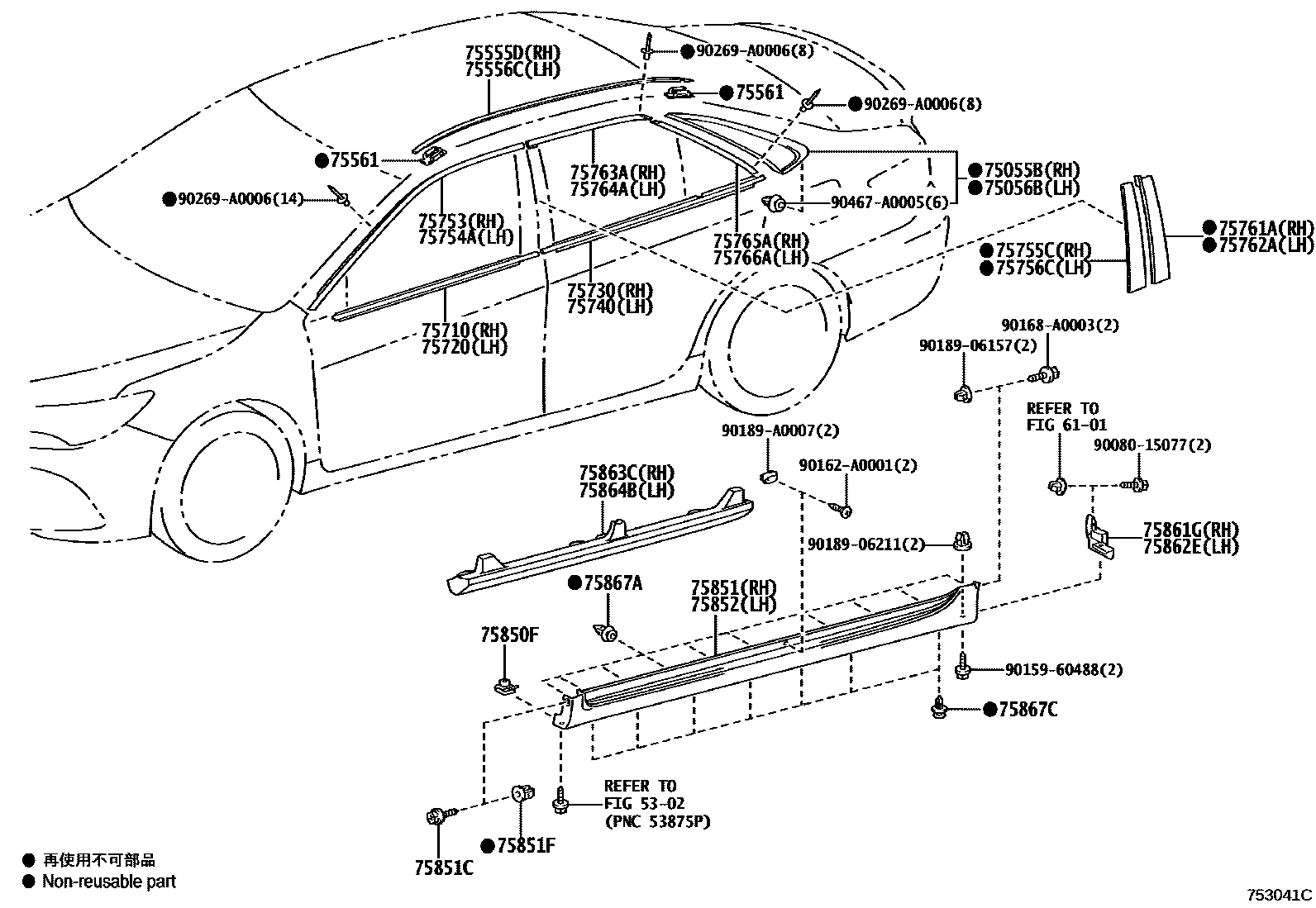

Toyota CAMRY 侧防护条 EPC diagram — 753041C
侧防护条 — 753041C (201504 – 999999)

PNC and OE references

PNCPart nameOE numbers
75055BRight rear pillar exterior decorative panel sub-assembly75055-06010
75056BLeft rear pillar exterior decorative panel sub-assembly75056-06010
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-06080
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-06080
75561No. 1 roof drain channel side decorative strip clip75561-33030
75710Right front door waistline protection strip assembly75710-06180
75720Left front door waistline protection strip assembly75720-06180
75730Right rear door waistline protection strip assembly75730-06160
75740Left rear door waistline protection strip assembly75740-06160
75753Protective strip on right front door window frame75753-06080
75754AProtective strip on left front door window frame75754-06080
75755CRight front door window frame rear protective strip75755-06140
75756CLeft front door window frame rear protective strip75756-06140
75761ARight rear door window frame front protective strip75761-06140
75762ALeft rear door window frame front protective strip75762-06140
75763AProtective strip on right rear door window frame75763-06140
75764AProtective strip on left rear door window frame75764-06140
75765ARight rear door window frame rear protective strip75765-06030
75766ALeft rear door window frame rear protective strip75766-06030
75850FNut No. 190183-06019
75851Right side door sill panel protective strip75851-06926
75851CScrews (for body sill protection strips)90168-A0003
75851FGasket (for body sill protection strip)90189-06065
75852Left side door sill panel protective strip75852-06927
75861GRight front door sill panel protective strip end cap75861-06130
75862ELeft front door sill panel protective strip end cap75862-06140
75863CNo. 3 rocker panel protective strip protective cover75863-06180
75864BNo. 4 door sill panel protective strip protective cover75864-06180
75867ADoor sill panel protective strip clip75867-AA010
75867CDoor sill panel protective strip clip75867-06030
