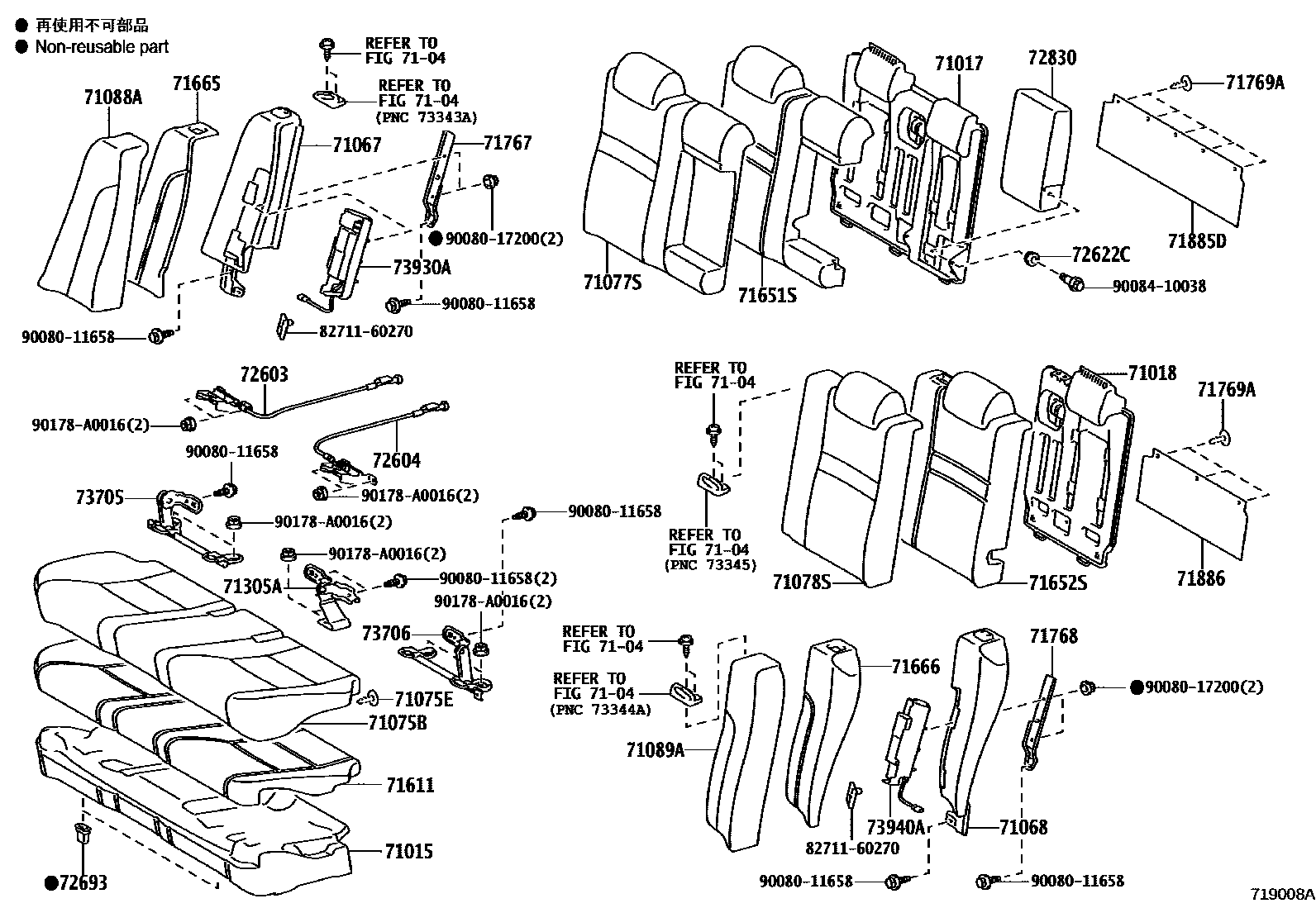

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015 | Rear seat cushion frame sub-assembly | 71015-06140 |
| 71067 | Rear right side seat back frame sub-assembly | 71067-06030 |
| 71068 | Rear left side seat back frame sub-assembly | 71068-06030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-06060 |
| 71611 | Rear seat cushion cushion | 71503-06221 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06340 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06150 |
| 71665 | Rear right seat backrest side cushion | 71665-06051 |
| 71666 | Rear left seat backrest side cushion | 71666-06061 |
| 71767 | Rear side seat back right rear fixed bracket | 71767-06010 |
| 71768 | Rear side seat back left rear fixed bracket | 71768-06010 |
| 72603 | Rear right seat back lock sub-assembly | 72630-06040 |
| 72604 | Rear left seat back lock sub-assembly | 72640-06040 |
| 72622C | Rear seat back protection shaft bushing | 72622-0T020 |
| 72693 | Rear seat cushion hook | 72693-06030 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-06050 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-06050 |
| 73930A | Rear right seat airbag assembly | 73930-06050 |
| 73940A | Rear left seat air bag assembly | 73940-06050 |
