Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

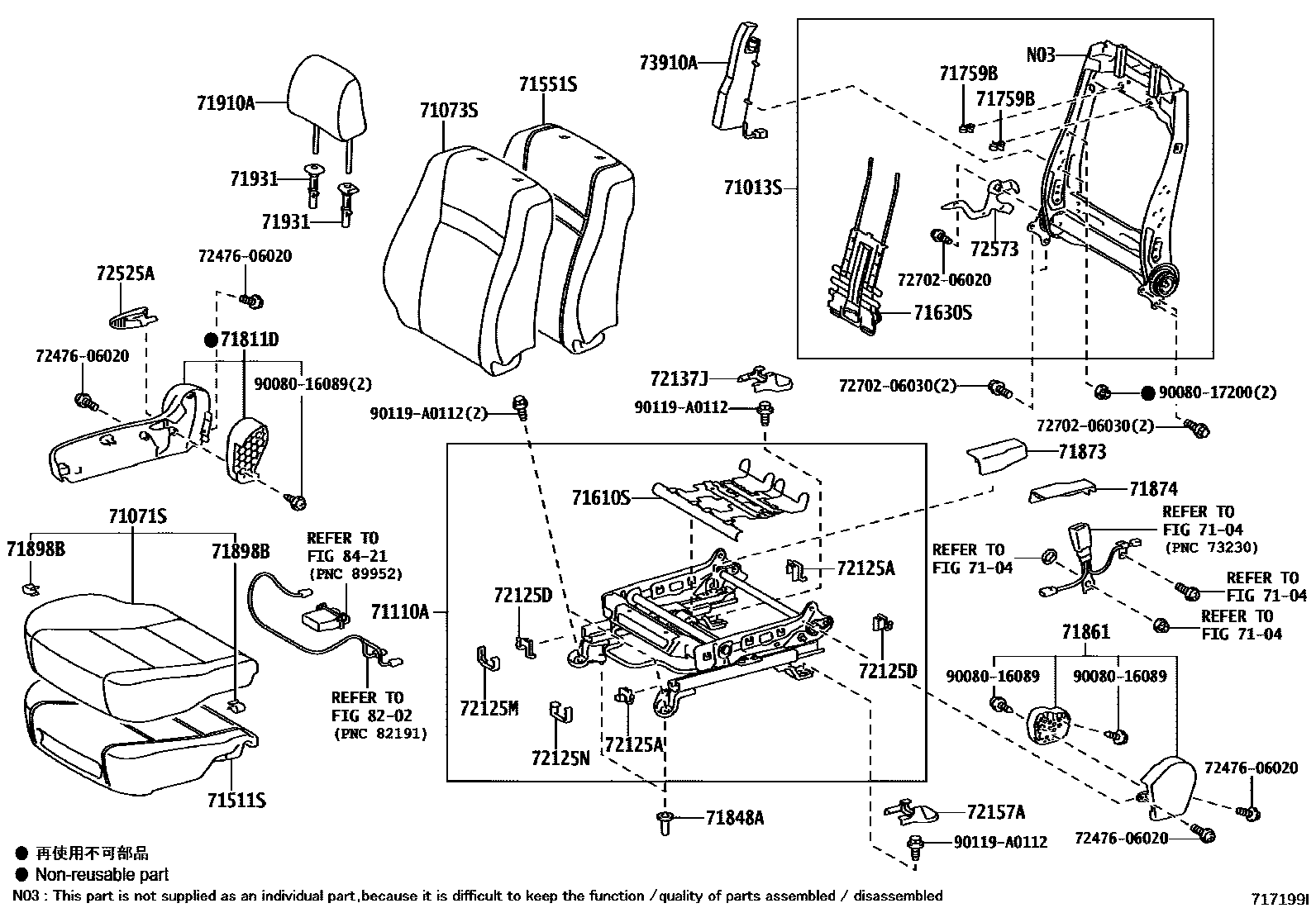

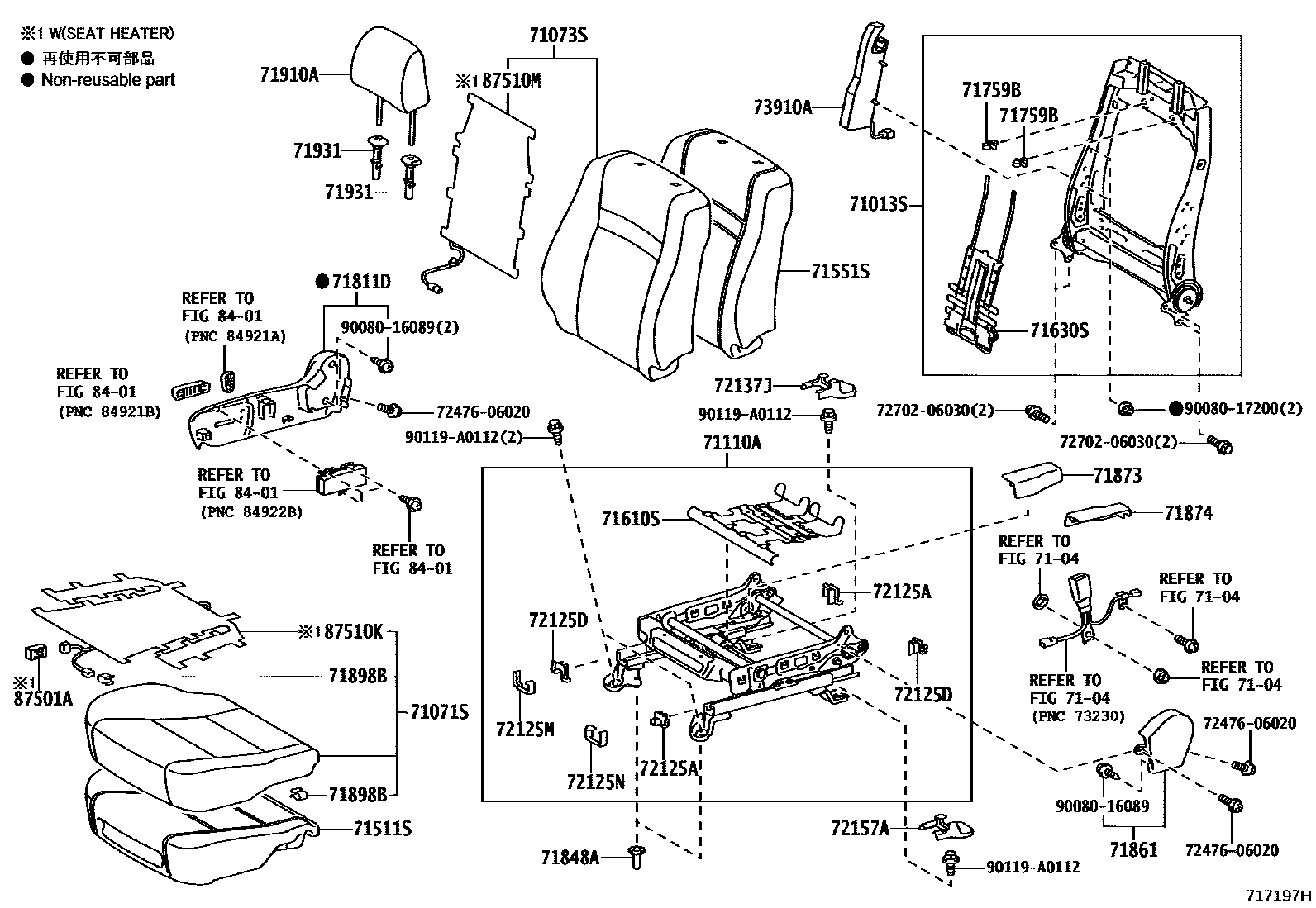

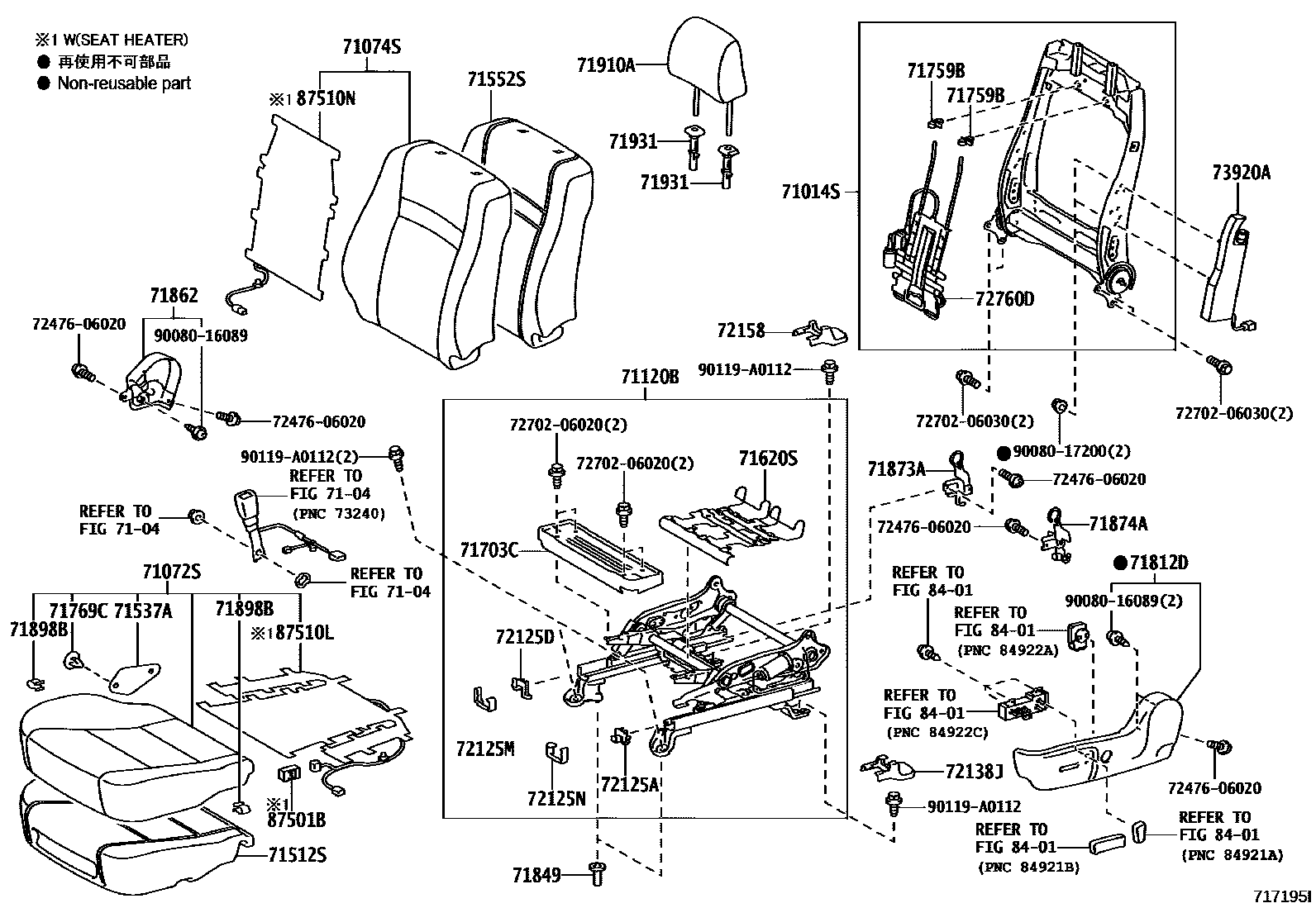

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71103-06010 · 71103-06020 |
| 71014S | Front left seat back frame sub-assembly | 71104-06020 |
| 71110A | Front right seat (with adjuster) frame assembly | 71110-06140 · 71110-06150 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-06170 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-06471 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06361 |
| 71537A | Front seat cushion protective cover | 71537-06190 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06360 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06280 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06380 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06370 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06380 |
| 71703C | Front seat cushion panel sub-assembly | 71703-06010 |
| 71759B | Front seat back hook | 71759-06020 |
| 71848A | Right seat adjuster cover | 71848-0T020 |
| 71849 | left seat adjuster cover | 71848-0T020 |
| 71898B | Front seat cover hook | 71898-07050 |
| 71910A | Front seat headrest assembly | 71910-06610 |
| 72125A | Rear seat upper slide rail cover | 72125-06010 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-06020 |
| 72125M | No. 3 upper seat outer slide rail cover | 72125-06030 |
| 72125N | No. 4 seat outer slide rail upper cover | 72125-06040 |
| 72573 | Right seat back tilt control lever | 72573-06010 |
| 72760D | Left lumbar support adjuster assembly | 72760-06060 |
| 73910A | Front right seat airbag assembly | 73910-06160 |
| 73920A | Front left seat airbag assembly | 73920-06170 |
| 87501A | Right seat heater control sub-assembly | 87501-06010 |
| 87501B | Left side seat heater control sub-assembly | 87501-06010 |
| 87510K | Front right seat cushion heater assembly | 87510-06100 |
| 87510L | Front left seat cushion heater assembly | 87510-06100 |
| 87510M | Front right seat back heater assembly | 87530-06071 |
| 87510N | Front left seat back heater assembly | 87530-06071 |
