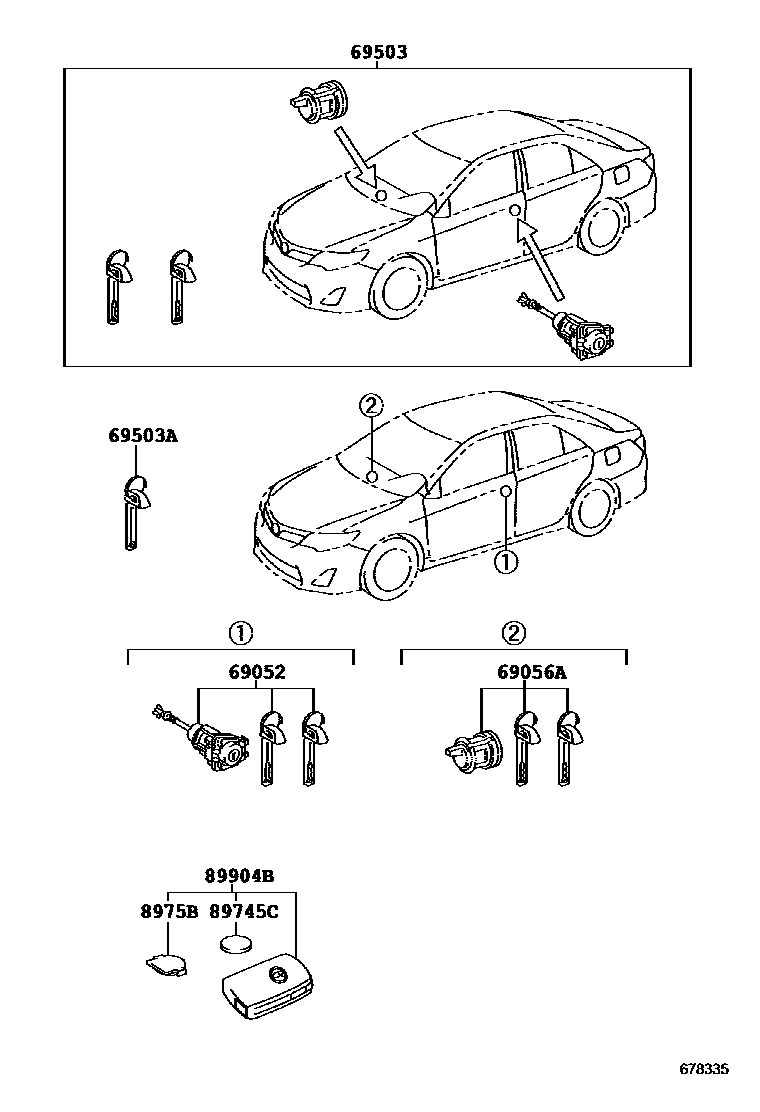

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-06140 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06160 |
| 69503 | Door lock cylinder components | 69005-06690 |
| 69503A | external tooth key | 69515-06030 |
| 89745C | Transmitter battery | 89745-50020 |
| 8975B | Remote control battery case cover | 8975B-33010 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33400 · 89904-33460 |
