Toyota CAMRY 杂物箱板和行李箱垫 — Figure 6403

Toyota CAMRY EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 11 PNC and OE references.

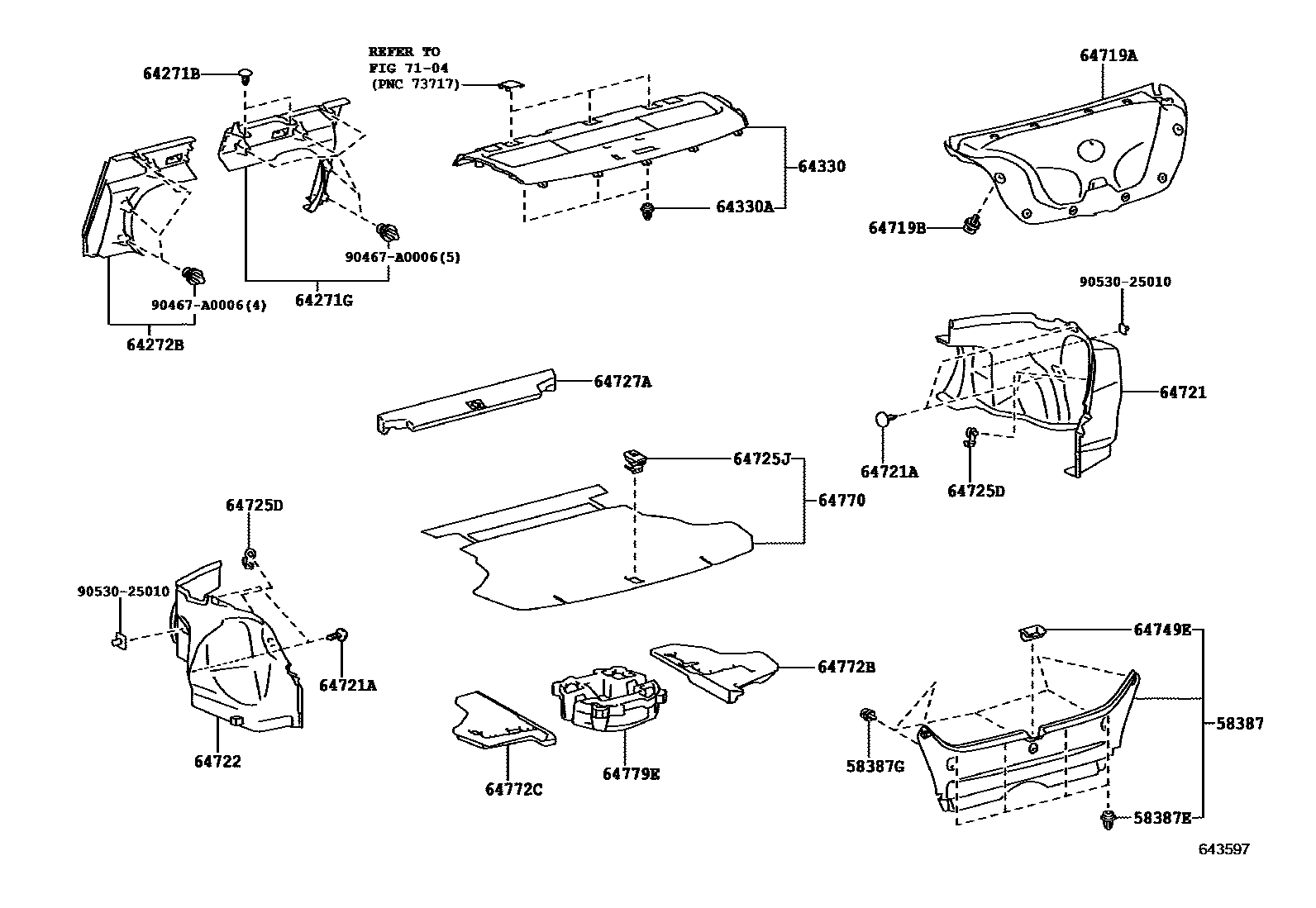

Toyota CAMRY 杂物箱板和行李箱垫 EPC diagram — 643597
杂物箱板和行李箱垫 — 643597 (201409 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387Rear floor decorative panel58387-06141
58387EClip (for rear floor trim panel)90467-A0006
58387GClip (for rear floor trim panel)90467-A0037
64330AClip (for glove box decorative panel)90467-A0006
64719BCatch (for trunk door)90467-A0037
64725JLuggage decorative hook No. 164725-06080
64727ALuggage interior decorative mat64727-06050
64749ETrunk door latch cover64749-06010
64772BSpare tire cover liner64772-06150
64772CSpare tire cover liner64773-06130
64779ESpare tire cover bracket64779-06050
