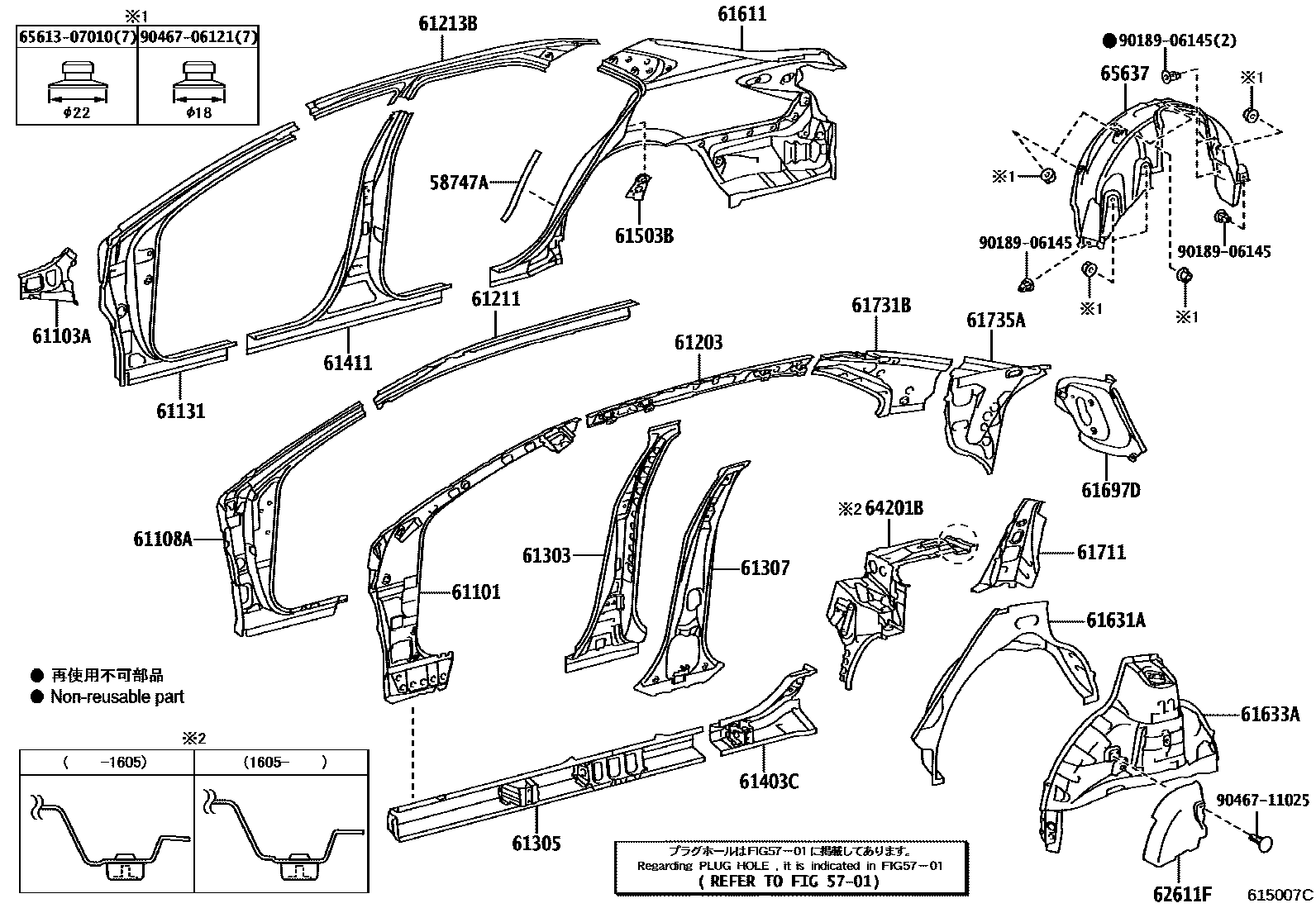

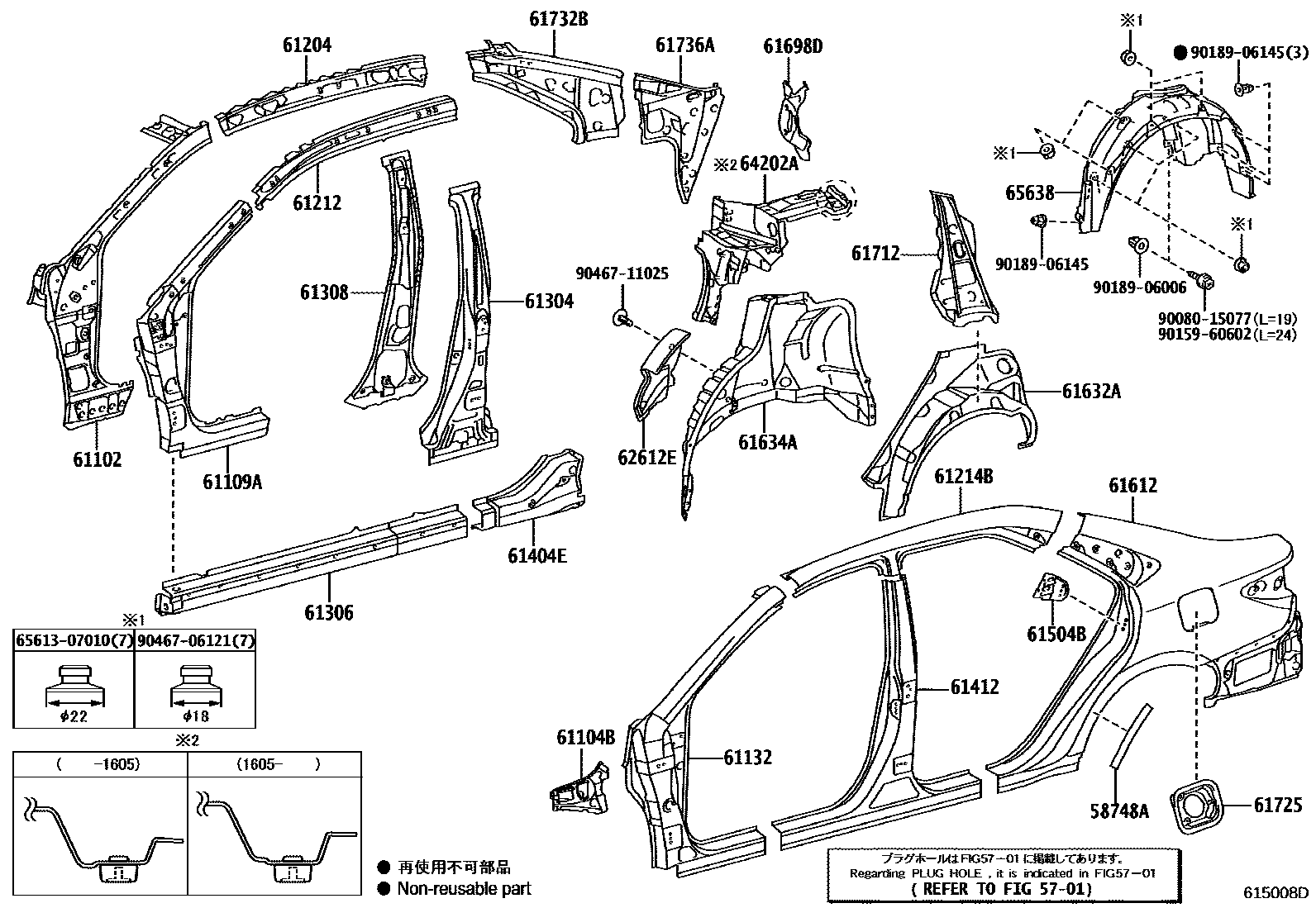

Toyota CAMRY 侧梁 — Figure 6101
Toyota CAMRY EPC diagram 6101, 侧梁, with 2 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58747A | Right rear side panel protector | 58747-06100 |
| 58748A | Left rear side panel protector | 58748-06100 |
| 61101 | Right front wall side panel sub-assembly | 61101-06210 |
| 61102 | Left front wall side panel sub-assembly | 61102-06210 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-06020 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-06020 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-06090 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-06150 |
| 61131 | Right body outer front upper pillar | 61131-06160 |
| 61132 | Left body outer front upper pillar | 61132-06160 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-06190 · 61203-06191 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-06190 · 61204-06191 |
| 61211 | Roof right outer longitudinal beam | 61201-06070 |
| 61212 | Roof left outer longitudinal beam | 61202-06070 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-06140 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-06130 |
| 61303 | Right body center pillar reinforcement sub-assembly | 61303-06080 |
| 61304 | Left body center pillar reinforcement sub-assembly | 61304-06080 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-06903 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-06907 |
| 61307 | Right body inner center pillar sub-assembly | 61307-06091 |
| 61308 | Left body inner center pillar sub-assembly | 61308-06150 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-06050 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-06050 |
| 61411 | Right door outer sill panel | 61311-06090 |
| 61412 | Left door outer sill panel | 61312-06090 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-06110 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-06110 |
| 61611 | Right side hoarding | 61601-06100 |
| 61612 | left side panel | 61602-06100 |
| 61631A | Right wheel cover outer panel | 61631-06160 |
| 61632A | Left side wheel cover outer panel | 61632-06160 |
| 61633A | Right wheel housing lining panel | 61633-06905 |
| 61634A | Left side wheel housing lining panel | 61634-06905 |
| 61697D | Right side enclosure end cover | 61697-06904 |
| 61698D | Left side enclosure end cover | 61698-06905 |
| 61711 | Roof right side outer panel | 61711-06100 |
| 61712 | Roof left outer panel | 61712-06100 |
| 61725 | Fuel inlet | 61725-06010 |
| 61731B | Roof right inner panel | 61731-06180 |
| 61732B | Roof left inner panel | 61732-06170 |
| 61735A | Right rear roof inner panel | 61735-06100 |
| 61736A | Left rear roof inner panel | 61736-06100 |
| 62611F | Right wheel cover vibration isolation pad | 62611-06090 |
| 62612E | Left side wheel cover vibration isolation pad | 62612-06090 |
| 64201B | Glove box to floor right filter sub-assembly | 64201-06120 · 64201-06121 |
| 64202A | Glove box to floor left filter sub-assembly | 64202-06120 · 64202-06121 |
| 65637 | Right rear wheel house lining | 65637-06160 |
| 65638 | Left rear wheel house lining | 65638-06160 |
