Toyota CAMRY 地板垫和地毯 — Figure 5804

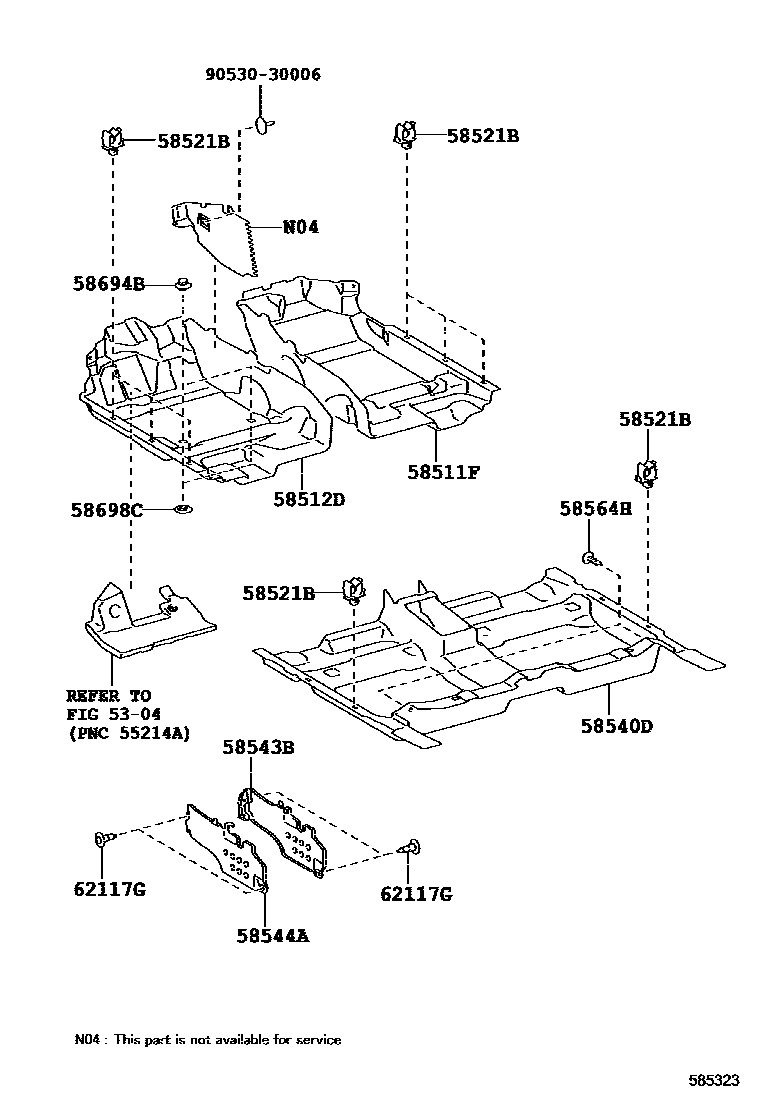

Toyota CAMRY EPC diagram 5804, 地板垫和地毯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58521B | carpet hook | 58521-06070 |
| 58543B | Right carpet bracket | 58543-06090 |
| 58544A | left carpet bracket | 58544-06090 |
| 58694B | Pad the fixing plate | 58694-30010 |
| 58698C | Fixing plate under the pad | 58698-30010 |
