Toyota CAMRY 仪表板和手套箱 — Figure 5501

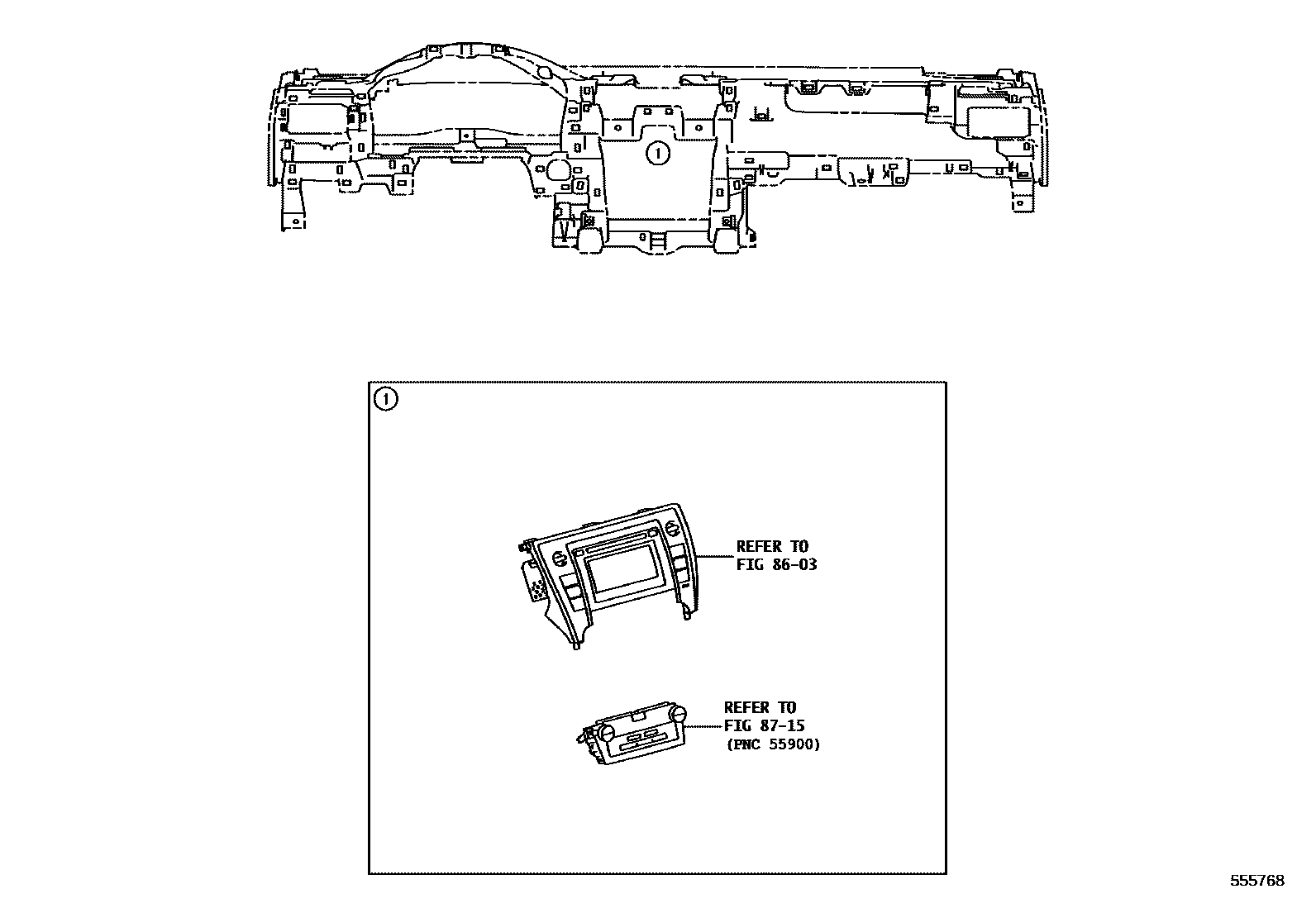

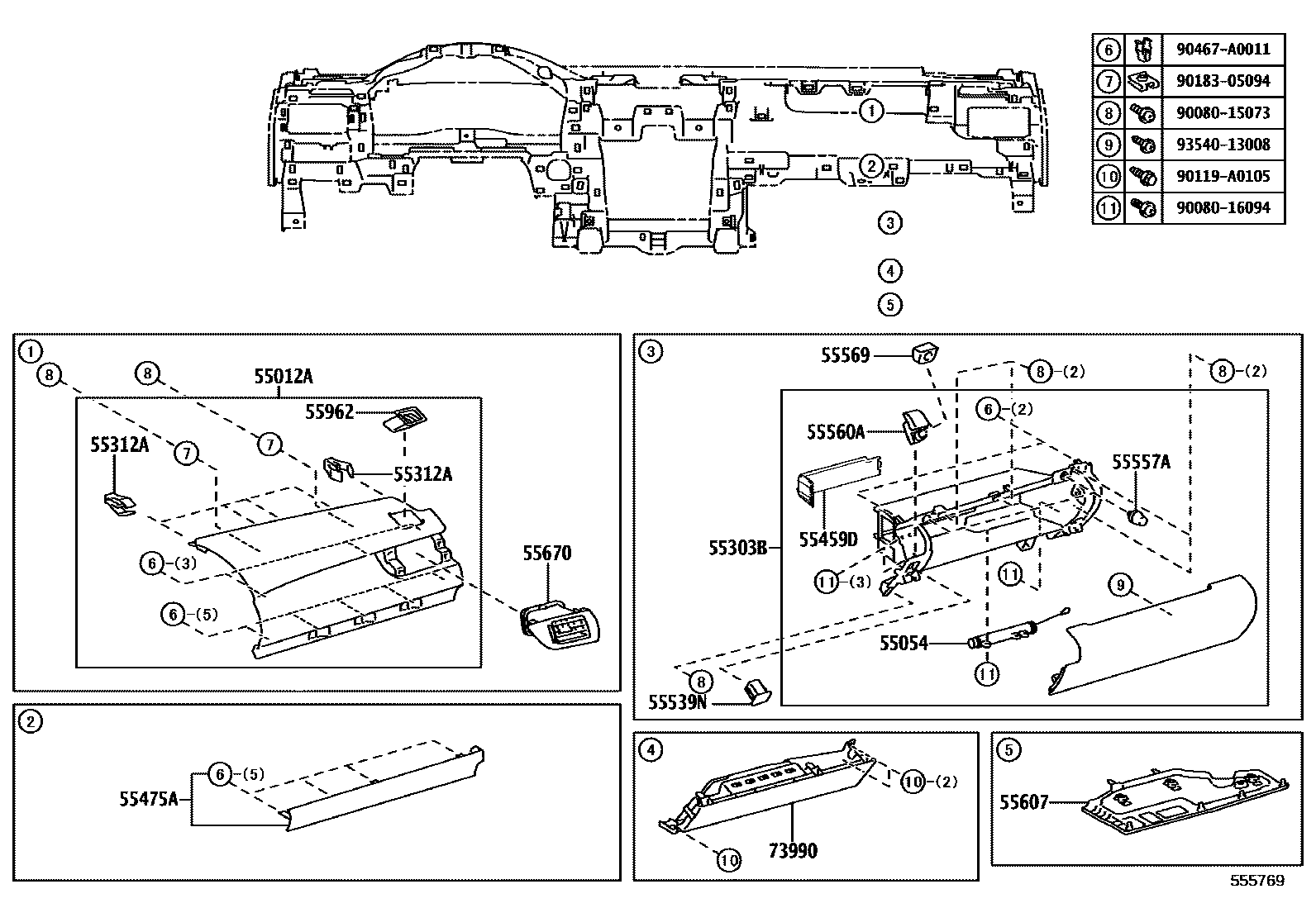

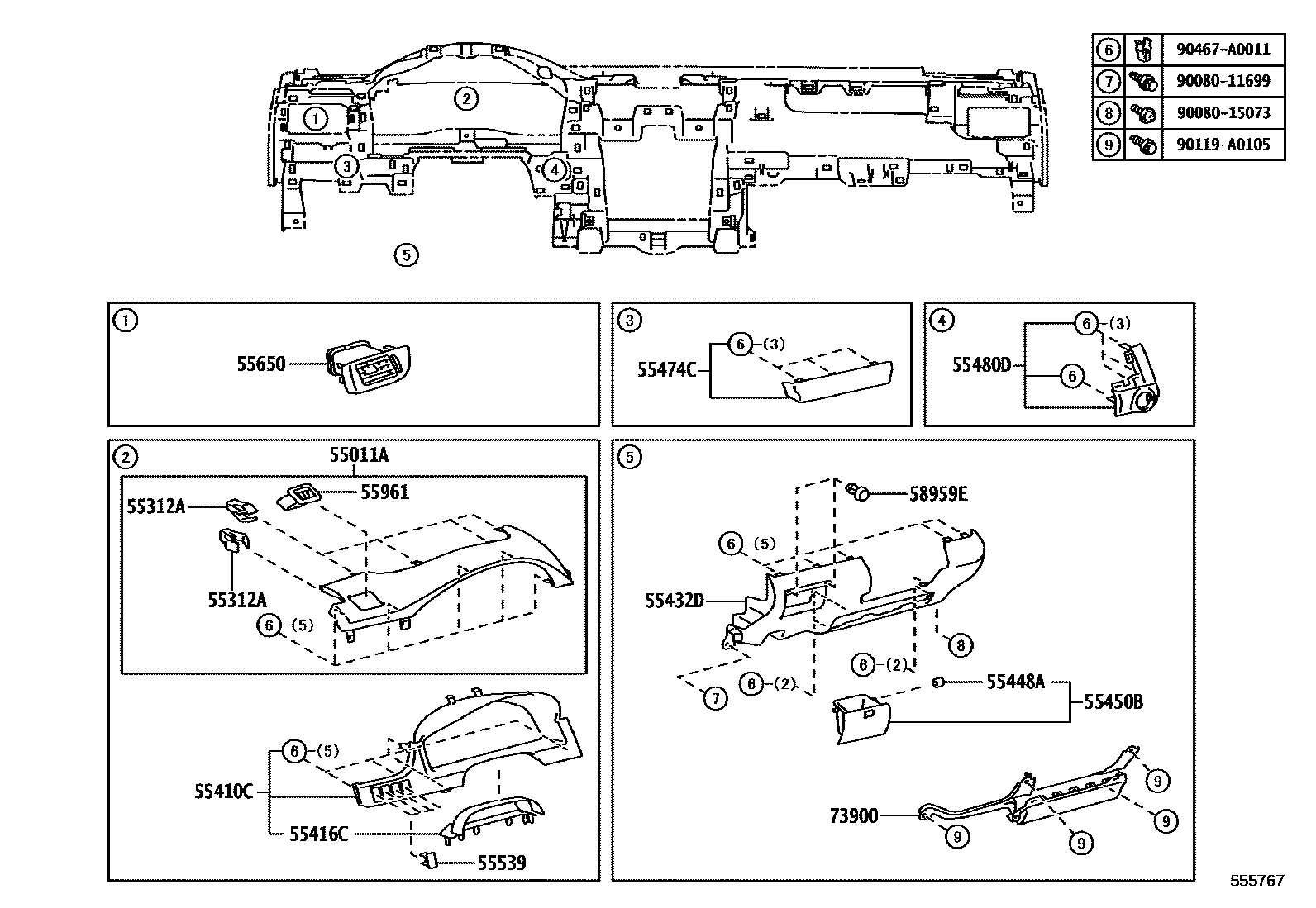

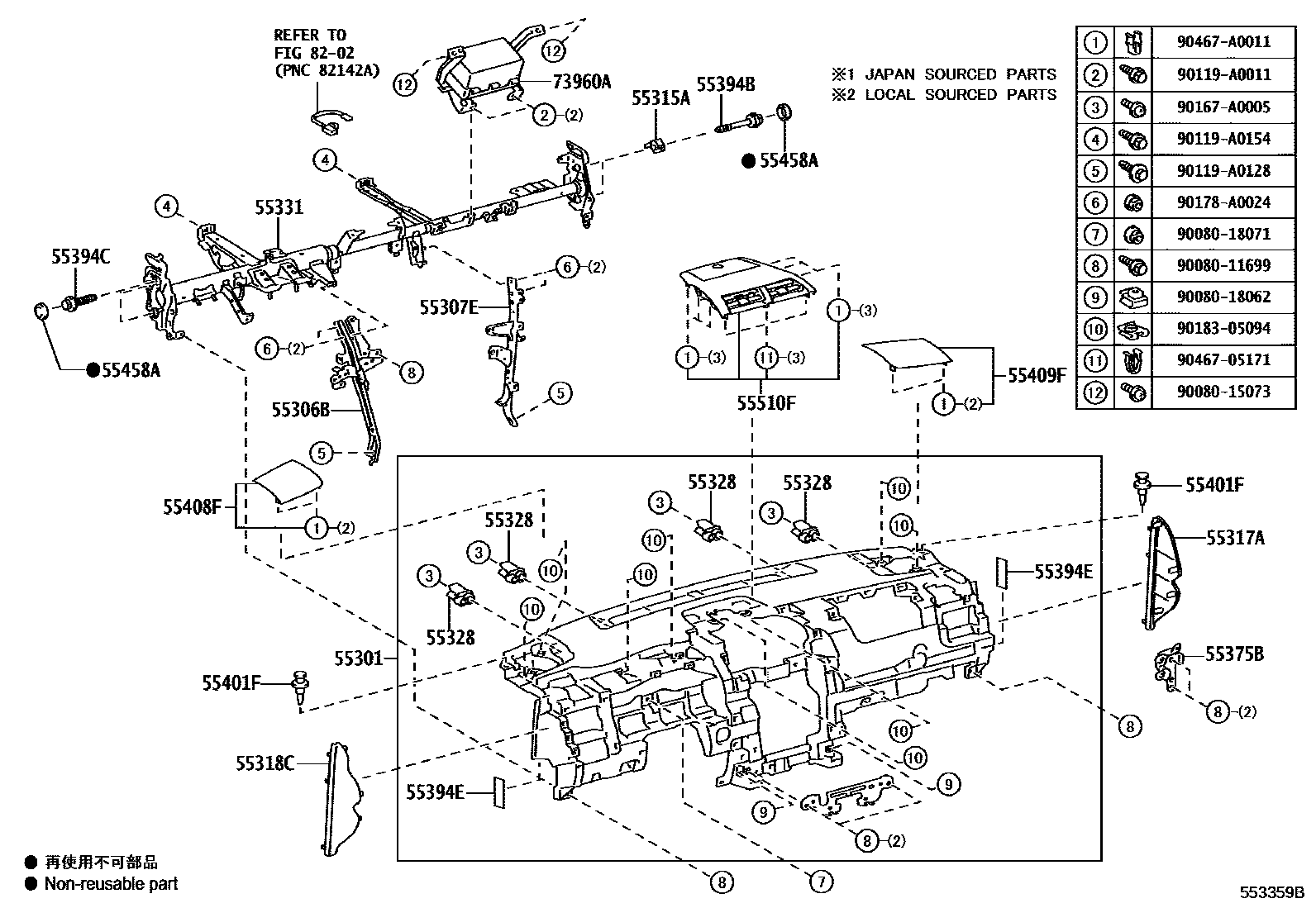

Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-06020 |
| 55306B | Dashboard to cowl bracket sub-assembly | 55306-06070 |
| 55307E | Instrument panel No. 2 bracket sub-assembly | 55307-06060 |
| 55315A | Instrument panel spacer No. 1 | 55315-48160 |
| 55328 | Instrument panel pin 1 | 55328-60090 |
| 55331 | Dashboard reinforcement | 55330-06330 · 55330-06331 |
| 55375B | No. 2 lower instrument panel mounting bracket | 55375-06210 |
| 55394B | Dashboard bolts | 90119-A0306 |
| 55394C | Dashboard bolts | 90119-A0305 |
| 55394E | Dashboard No. 4 lower cushion | 55394-06140 |
| 55401F | Clip (for safety mat) | 52161-02020 |
| 55448A | Instrument panel decorative cushion No. 1 | 55448-08020 |
| 55458A | Dashboard safety pad cover | 55458-22110 |
| 55459D | Instrument panel lower left cover | 55459-06090 |
| 55539N | Spare switch hole cover | 55539-0E010 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06041 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06181 |
