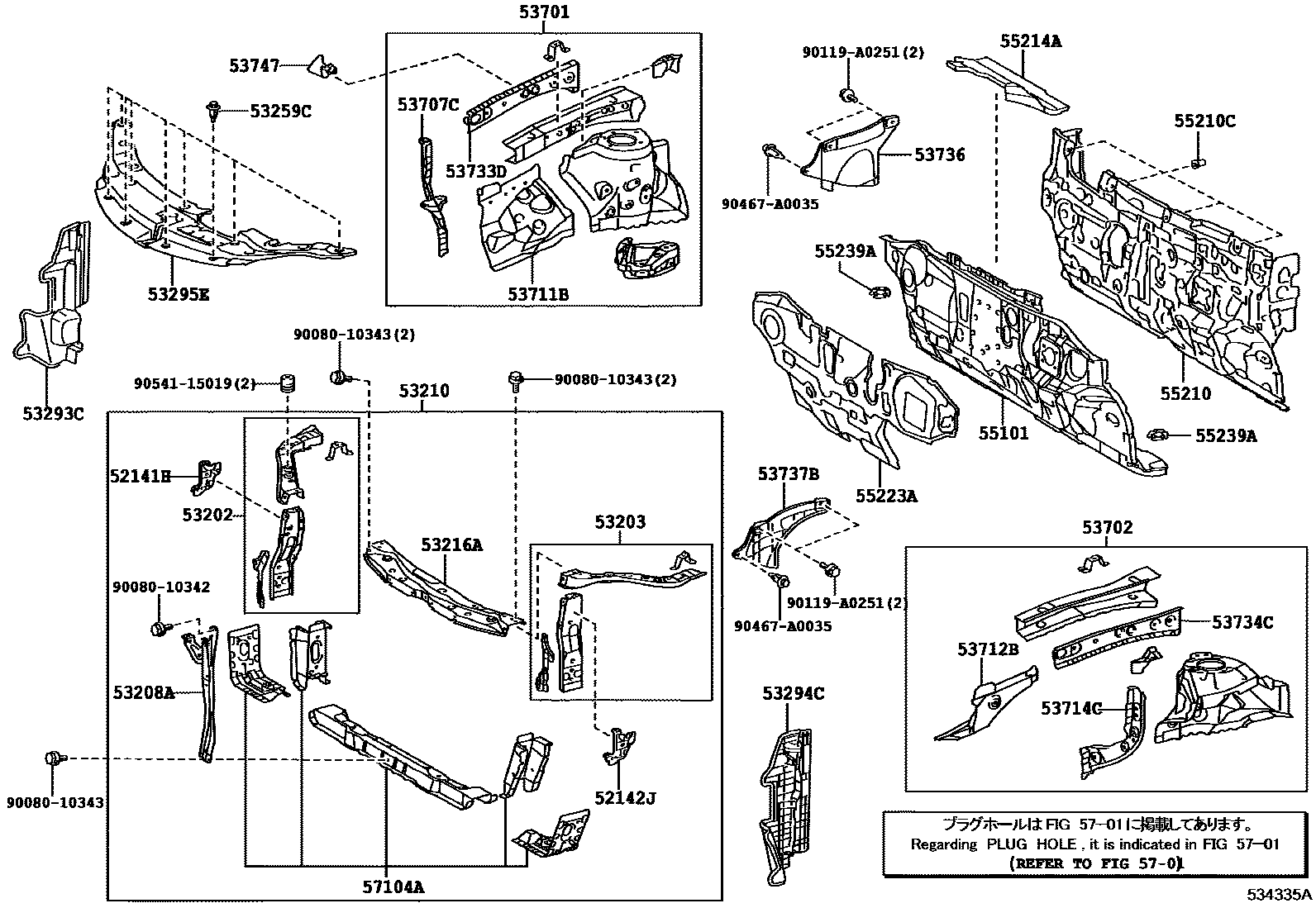

Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304
Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141H | Front bumper right upper arm | 52141-06090 |
| 52142J | Front bumper left upper arm | 52142-06140 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06190 |
| 53203 | Radiator left bracket sub-assembly | 53203-06230 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-06150 |
| 53210 | Radiator bracket assembly | 53210-06150 |
| 53216A | Radiator upper bracket | 53216-06130 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 |
| 53293C | Radiator right baffle | 53293-06340 |
| 53294C | Radiator left baffle | 53294-06340 |
| 53295E | Cold air intake pipe seal | 53295-06130 |
| 53701 | Right front fender fender sub-assembly | 53701-06230 |
| 53702 | Left front fender fender sub-assembly | 53702-06210 |
| 53707C | Right front fender fender front extension sub-assembly | 53707-06020 |
| 53711B | Right front fender front fender | 53711-06120 |
| 53712B | Left front fender front fender | 53712-06080 |
| 53714C | Left front fender fender front extension | 53714-06090 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06090 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06090 |
| 53736 | Right front fender fender seal | 53736-07021 |
| 53737B | Left front fender fender seal | 53737-06040 |
| 53747 | Right air sealing plate | 53747-06050 |
| 55101 | Front apron sub-assembly | 55101-06471 |
| 55210 | Front wall insulation pad assembly | 55210-06241 |
| 55210C | clip | 90467-06197 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-06052 |
| 55223A | Front wall outer heat insulation pad | 55223-06290 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06020 |
| 57104A | Front cross member sub-assembly | 57104-07022 |
