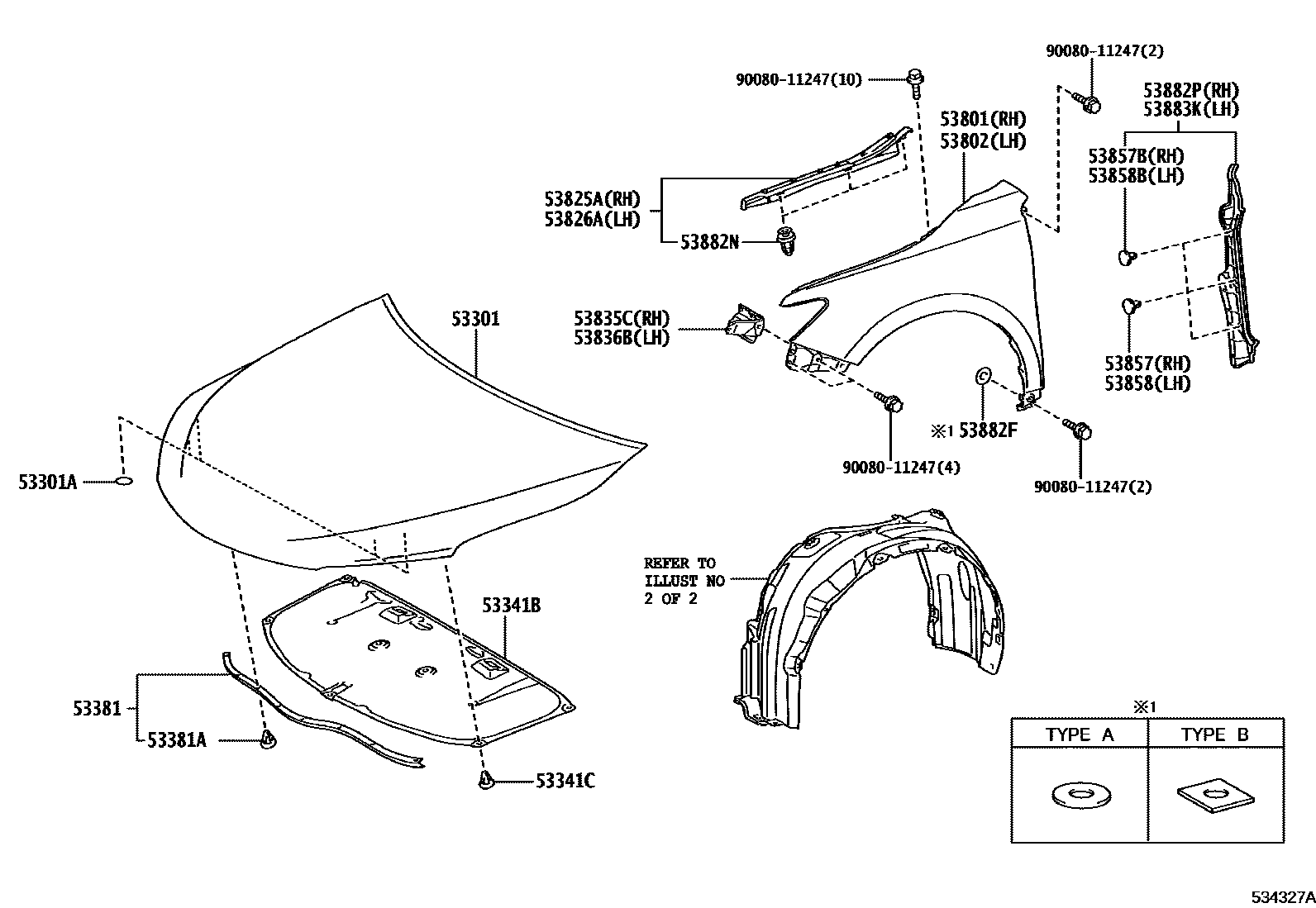

Toyota CAMRY 发动机盖和前翼子板 — Figure 5302
Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-06160 |
| 53301A | Hole plug (for engine cover) | 90950-06124 |
| 53341B | engine cover gasket | 53341-06400 |
| 53341C | Clip (for engine cover gasket) | 90467-A0003 |
| 53381 | Engine cover to radiator bracket seal | 53381-06100 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90080-46010 |
| 53801 | Right front fender sub-assembly | 53811-06200 |
| 53802 | Left front fender sub-assembly | 53812-06210 |
| 53825A | Right front fender protection piece | 53825-06130 |
| 53826A | Protection piece on left front fender | 53826-06130 |
| 53835C | Right front side panel bracket | 53835-06080 |
| 53836B | Left front side panel bracket | 53836-06080 |
| 53857 | Right front fender external panel fixing piece | 53857-47011 |
| 53857B | Right front fender external panel fixing piece | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53875-06210 |
| 53875P | Screw No. 1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-06200 |
| 53879A | Front fender lining fixing parts | 53879-06030 |
| 53882F | front fender seal | 53882-30030 · 53882-33060 |
| 53882N | Clip (for front fender seal) | 90467-A0006 |
| 53882P | Right front fender seal | 53882-06150 |
| 53883K | Left front fender seal | 53883-06140 |
