Toyota CAMRY 前保险杠及附件 — Figure 5201

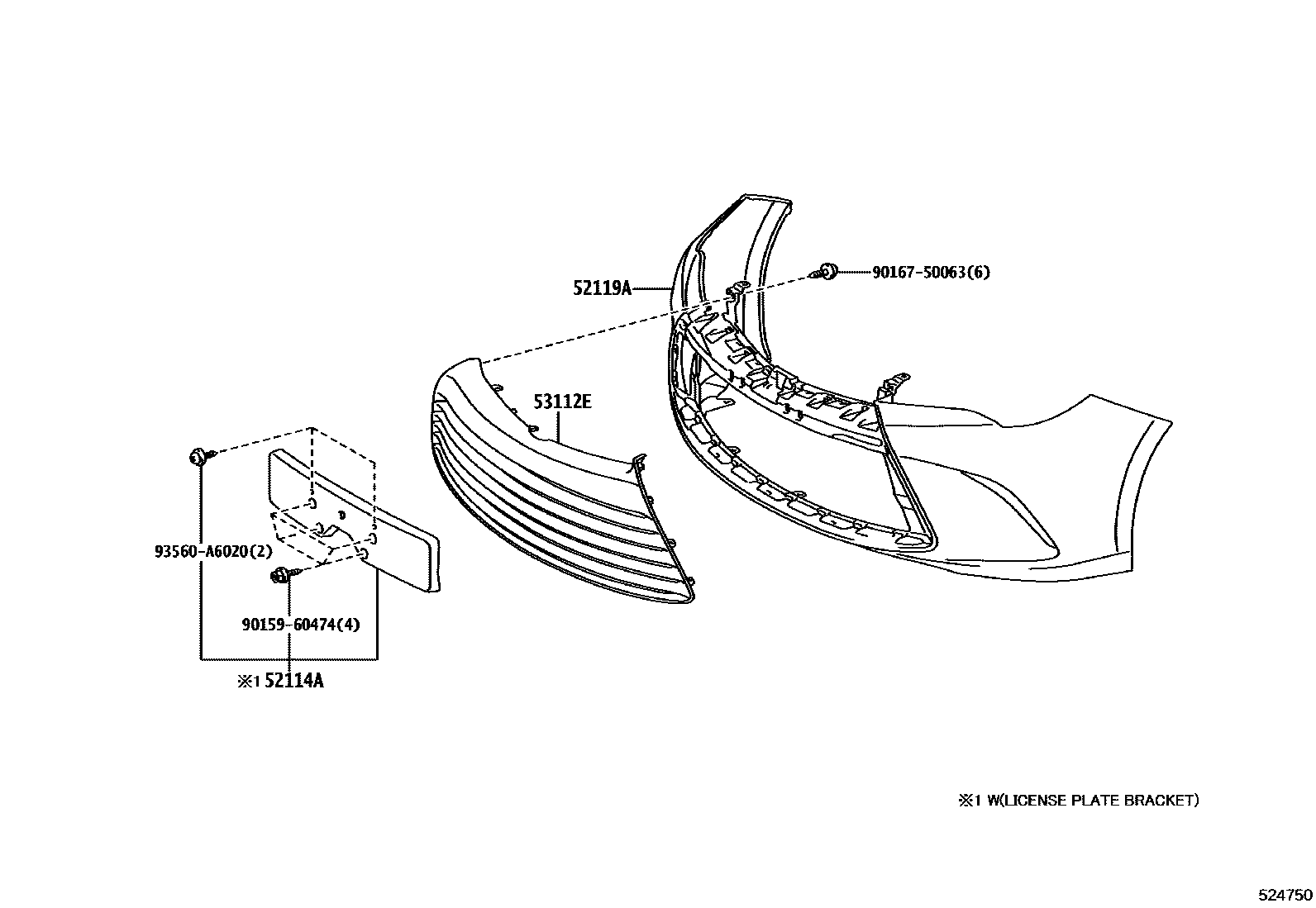

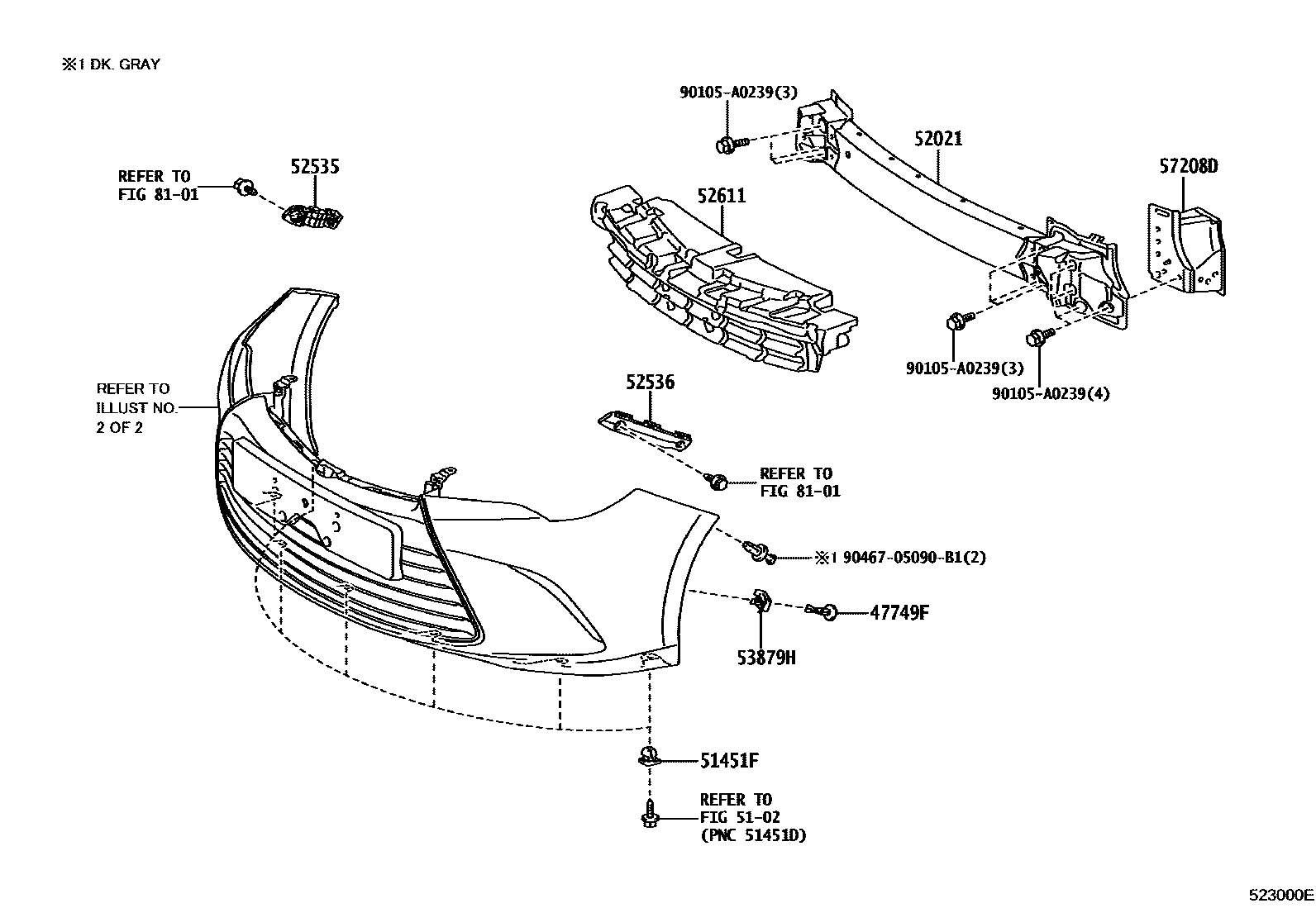

Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-06010 |
| 51451F | Gasket No. 1 | 90189-06193 · 90189-06237 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-06130 |
| 52114A | Front bumper extension mounting bracket | 75101-06060 |
| 52119A | front bumper cover | 52119-07912 |
| 52535 | Front bumper right side fixing bracket | 52535-06190 |
| 52536 | Front bumper left fixed bracket | 52536-06190 |
| 52611 | front bumper energy absorber | 52611-06380 |
| 53112E | No. 1 radiator lower grille | 53112-06280 |
| 53879H | Front fender lining fixing parts | 53879-06100 |
| 57208D | Front bumper bracket No. 2 spacer sub-assembly | 57208-06010 · 57208-06011 |
