Toyota CAMRY 制动配管和卡箍 — Figure 4708

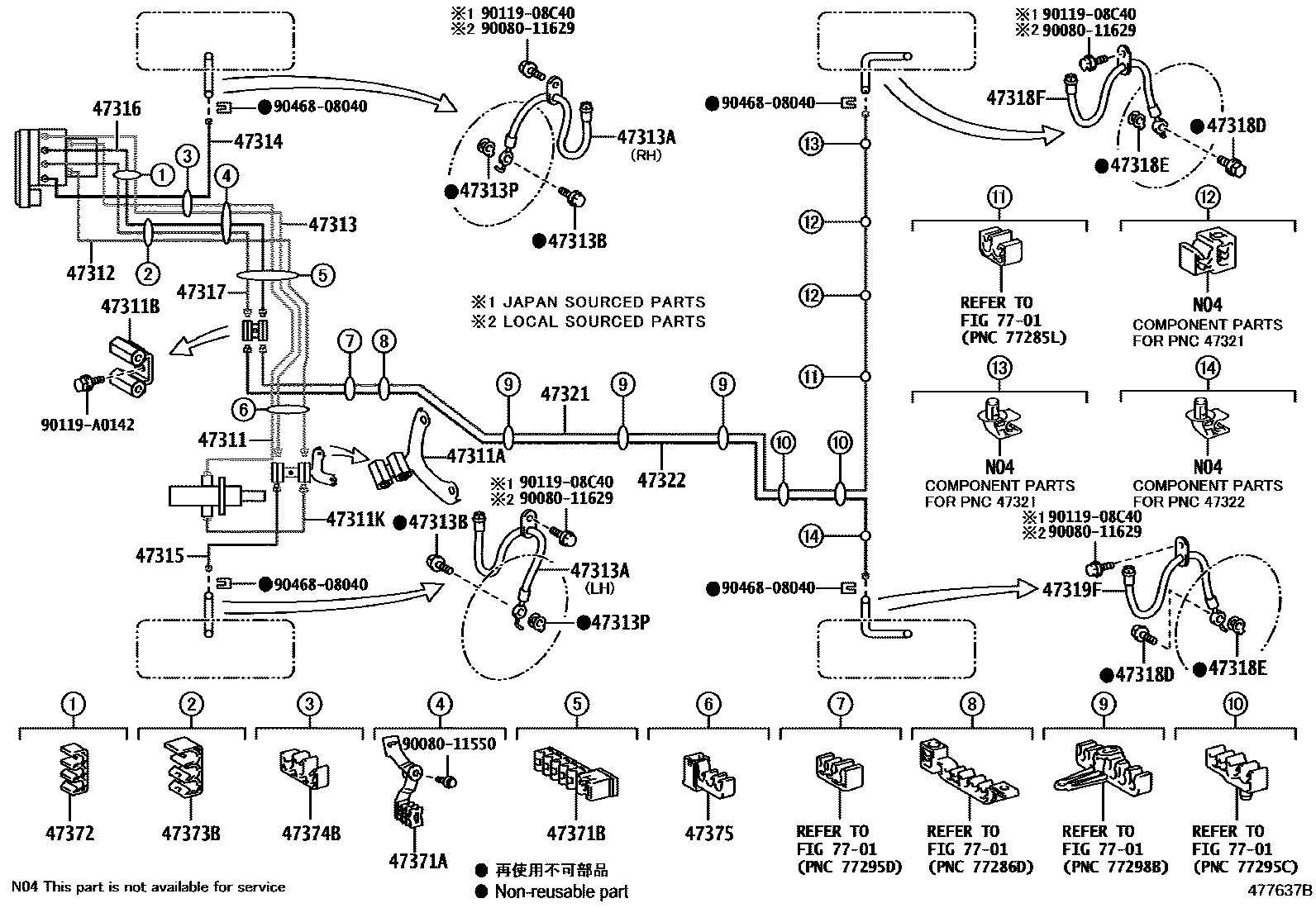

Toyota CAMRY EPC diagram 4708, 制动配管和卡箍, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

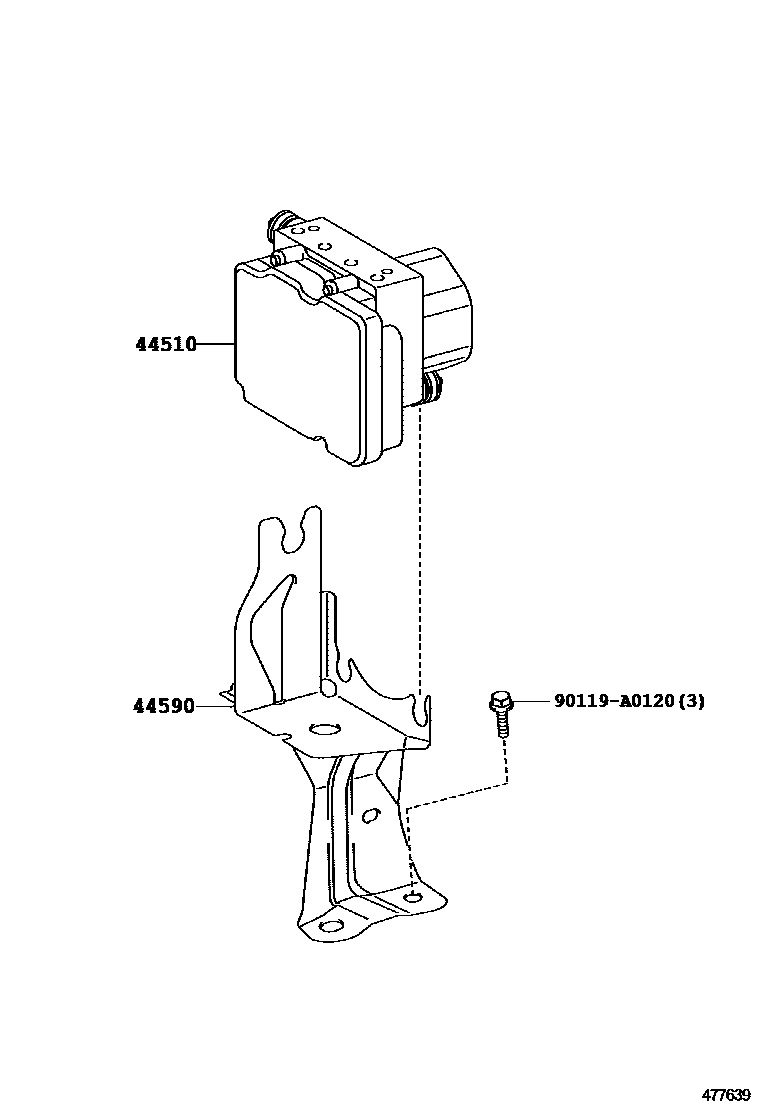

| 44510 | brake actuator assembly | 44050-06240 |
| 44590 | Brake actuator bracket assembly | 44590-06180 |
| 47311 | No. 1 front brake pipe | 47311-06400 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-12065 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-A0004 |
| 47311K | Pipe (brake master cylinder to pipe joint) | 47311-06390 |
| 47312 | No. 2 front brake pipe | 47312-06330 |
| 47313 | No. 3 front brake pipe | 47313-06290 |
| 47313A | No. 1 front flexible hose | 90947-A2030 · 90947-A2031 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 · 90401-A0001 |
| 47313P | Gasket (for front flex hose) | 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-06291 |
| 47315 | No. 5 front brake pipe | 47315-06281 |
| 47316 | No. 6 front brake pipe | 47316-06350 |
| 47317 | No. 7 front brake pipe | 47317-06330 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-A0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-A2032 |
| 47319F | Left rear flexible hose | 90947-A2060 |
| 47321 | No. 1 rear brake pipe | 47321-06151 |
| 47322 | No. 2 rear brake pipe | 47322-06151 |
| 47371A | No. 1 brake pipe clamp | 47371-06050 |
| 47371B | No. 6 brake pipe clamp | 90949-A1019 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 |
| 47373B | No. 3 brake pipe clamp | 90464-A0007 |
| 47374B | No. 4 brake pipe clamp | 90464-A0006 |
| 47375 | No. 5 brake pipe clamp | 90949-A1018 |
