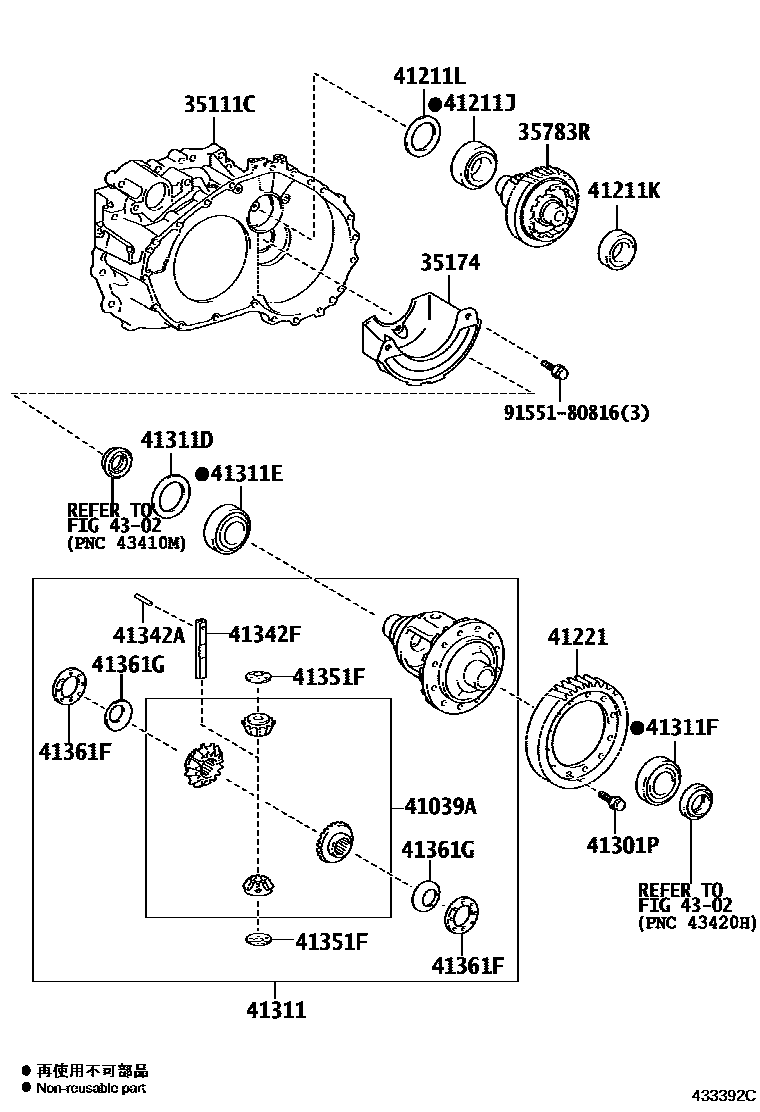

Toyota CAMRY 前桥壳和差速器 — Figure 4301
Toyota CAMRY EPC diagram 4301, 前桥壳和差速器, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35111C | Transmission axle housing | 35105-33022 |
| 35174 | Transmission axle housing oil separator | 35174-73010 |
| 35783R | countershaft driven gear | 35705-33040 |
| 41039A | Differential gear assembly | 41039-28030 |
| 41211J | Right-hand tapered bearing (for differential drive pinion) | 90366-35167 |
| 41211K | Left side roller bearing (for differential drive pinion) | 90366-32034 |
| 41211L | Spacer (for differential drive pinion) | 90564-61022 · 90564-61023 · 90564-61024 · 90564-61025 · 90564-61026 · 90564-61027 · 90564-61028 · 90564-61029 · 90564-61030 · 90564-61031 · 90564-61032 · 90564-61033 · 90564-61034 · 90564-61035 · 90564-61036 · 90564-61037 · 90564-61038 · 90564-61039 · 90564-61040 · 90564-61041 · 90564-61042 · 90564-61043 · 90564-61044 · 90564-61045 · 90564-61046 · 90564-61047 · 90564-61048 · 90564-61049 · 90564-61050 · 90564-61051 · 90564-61052 · 90564-61053 · 90564-61054 · 90564-61055 · 90564-61056 · 90564-61057 · 90564-61058 · 90564-61059 · 90564-61060 · 90564-61061 · 90564-61062 |
| 41221 | Front differential ring gear | 41221-33190 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-33101 |
| 41311D | Front gasket (for front differential case) | 90564-69001 · 90564-69002 · 90564-69003 · 90564-69004 · 90564-69005 · 90564-69006 · 90564-69007 · 90564-69008 · 90564-69009 · 90564-69010 · 90564-69011 · 90564-69012 · 90564-69013 · 90564-69014 · 90564-69015 · 90564-69016 · 90564-69017 · 90564-69020 · 90564-69021 · 90564-69022 · 90564-69023 · 90564-69024 · 90564-69025 · 90564-69026 · 90564-69027 · 90564-69028 · 90564-69029 · 90564-69030 · 90564-69031 · 90564-69032 · 90564-69033 · 90564-69034 · 90564-69035 · 90564-69036 · 90564-69037 · 90564-69038 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-50118 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-55071 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-33061 |
| 41351F | Front differential planetary gear thrust washer | 41351-73010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-33300 · 41361-33310 · 41361-33320 · 41361-33330 · 41361-73010 · 41361-73020 · 41361-73030 · 41361-73050 |
| 41361G | Conical spring washer (for center differential side gears) | 90208-40003 |
