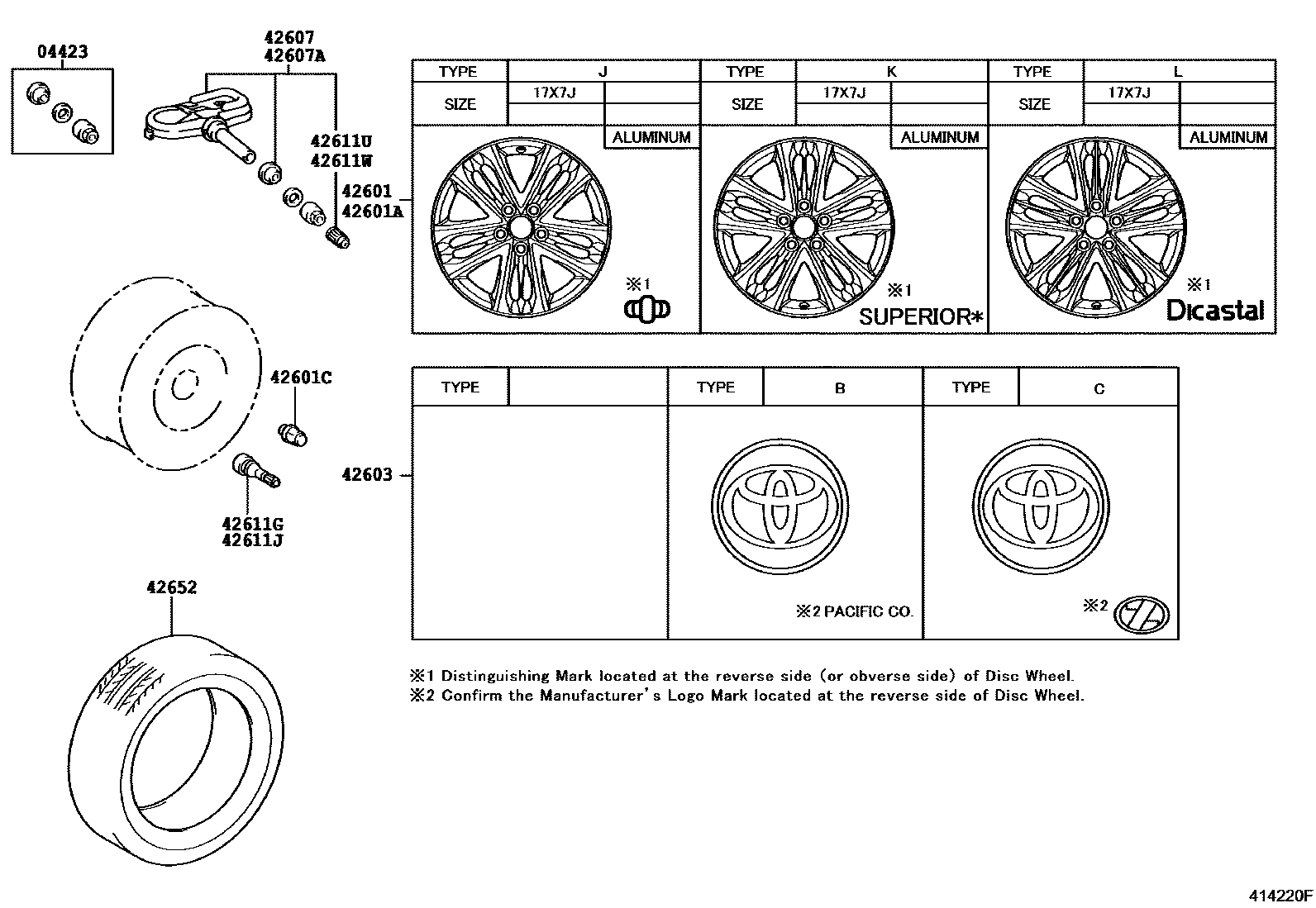

Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0E010 |
| 42601 | spoke wheel | 42611-06B30 · 42611-06C60 · 42611-06C70 |
| 42601A | Spoke wheel (for spare tire) | 42611-06B30 · 42611-06C60 · 42611-06C70 |
| 42601C | Hub nut (for axle) | 90084-94001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-06150 · 42603-06160 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02021 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-02021 |
| 42611G | Valve (for tubeless tires) | 90080-45006 |
| 42611J | Valve (for tubeless spare tire) | 90080-45006 |
| 42611U | tire valve cover | 90942-A5002 |
| 42611W | Tire valve cap (for spare tire) | 90942-A5002 |
| 42652 | tires | 42652-AA050 |
