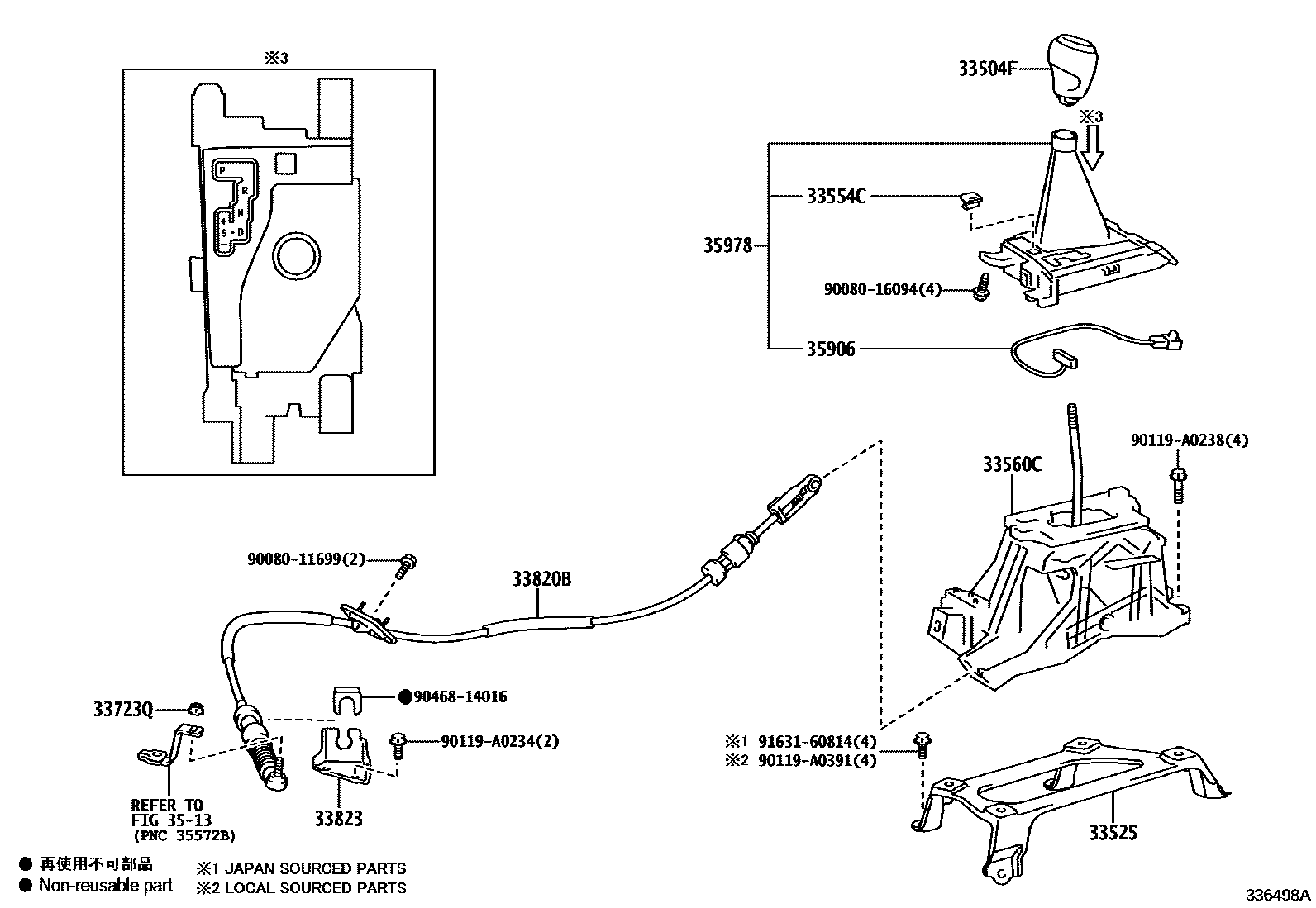

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33504F | Shift lever handle sub-assembly | 33542-06280 |
| 33525 | shift lever bracket | 58123-06010 |
| 33554C | Shift lock release button cover | 33554-06070 |
| 33560C | Lower shift lever assembly | 33560-06320 · 33560-06321 |
| 33723Q | Nut (for connecting rod swivel joint) | 90080-17229 |
| 33820B | Transmission control cable assembly | 33820-06490 |
| 33823 | No. 1 transmission control cable bracket | 33823-06010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06230 |
