Toyota CAMRY Alternator — Figure 1903

Toyota CAMRY EPC diagram 1903, Alternator, with 1 images and 14 PNC and OE references.

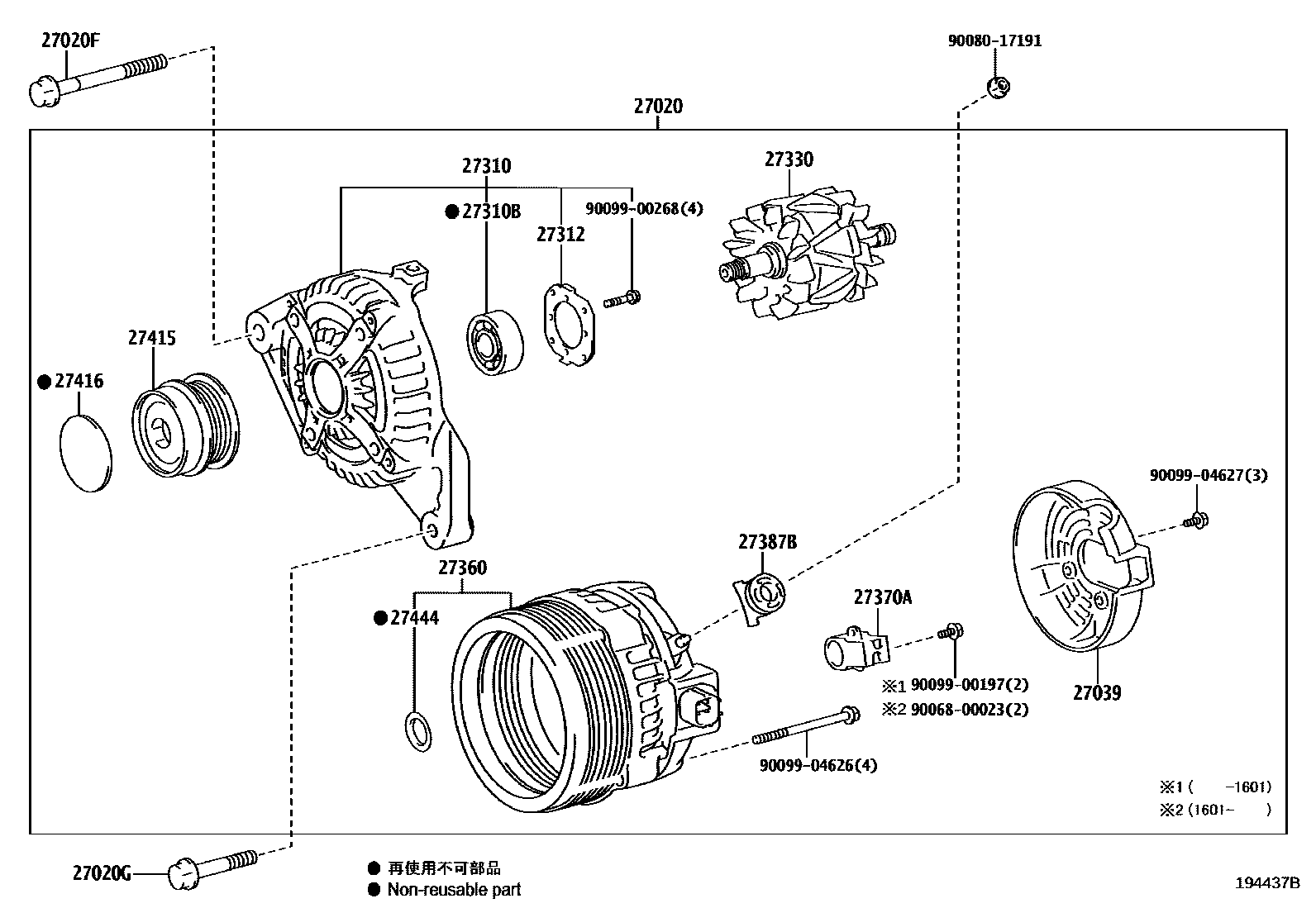

Toyota CAMRY Alternator EPC diagram — 194437B
Alternator — 194437B (201504 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-0V170
27020FBolt No. 1 (for generator)90105-A0230
27020GBolt No. 2 (for generator)90105-A0166
27039Alternator Rear End Cover27039-0C170 · 27039-47330
27310Alternator Drive End Frame Assembly27310-0V160 · 27310-36160
27310BBearing (for Alternator Drive End Frame)90068-10033 · 90099-10223
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-0C170 · 27330-47330
27360Alternator Stator Coil Assembly27360-0V200 · 27360-36161
27370AAlternator Brush Holder Assembly27370-0V160 · 27370-31220
27387BGenerator terminal insulation pad27387-20130
27415PULLEY, ALTERNATOR W/CLUTCH27415-0W021
27416Generator pulley cover27416-0W050
27444Generator bearing cap seals27444-0C170 · 27444-21190
