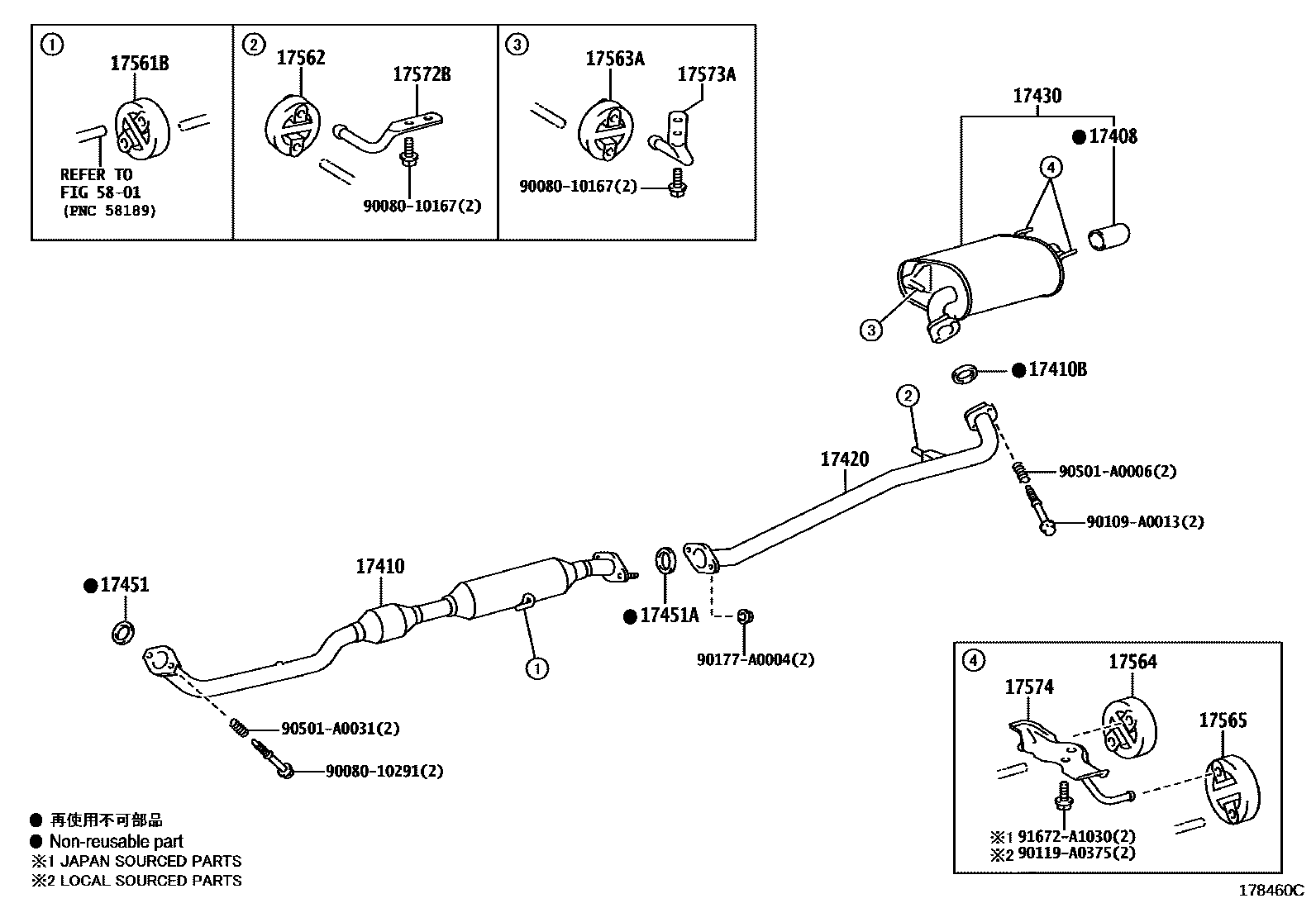

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-0V010 |
| 17410 | Front exhaust pipe assembly | 17410-0V220 |
| 17410B | Exhaust pipe gasket | 17451-0V040 |
| 17420 | Central exhaust pipe assembly | 17420-0V090 |
| 17430 | Exhaust tailpipe assembly | 17430-0V041 |
| 17451 | Exhaust pipe gasket | 17451-0V020 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06078 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-0P051 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-0P031 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0P041 |
| 17564 | No. 4 exhaust pipe lifting lug | 17565-0P031 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P051 |
| 17572B | No. 2 exhaust pipe bracket | 17573-0V010 |
| 17573A | No. 3 exhaust pipe bracket | 17576-0V010 |
| 17574 | No. 4 exhaust pipe bracket | 17574-0V011 |
