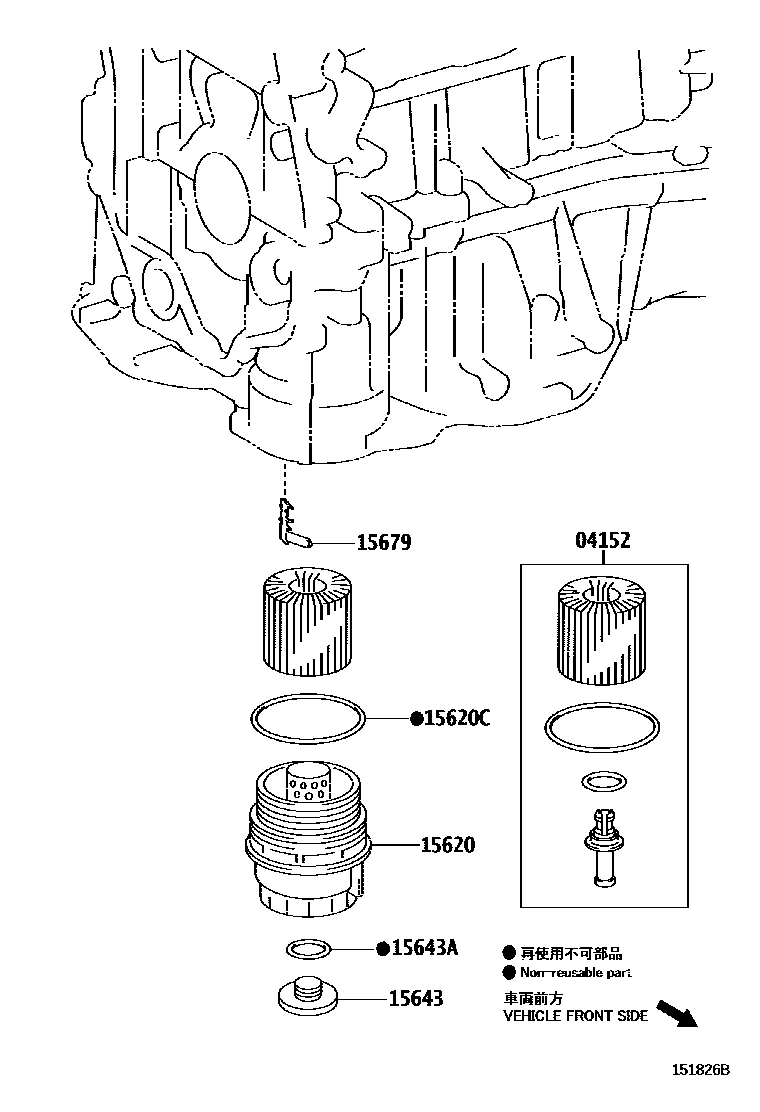

Toyota CAMRY Oil Filter — Figure 1502
Toyota CAMRY EPC diagram 1502, Oil Filter, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04152 | Oil Filter Element Kit | 04152-31090 |
| 15620 | Oil filter cover assembly | 15620-0V010 · 15620-36020 |
| 15620C | Gasket (for oil filter cover) | 90301-79006 |
| 15643 | Oil filter drain plug | 15643-31050 |
| 15643A | O-ring (for oil filter drain plug) | 96723-35028 |
| 15679 | Oil filter bracket clip | 15679-37011 |
