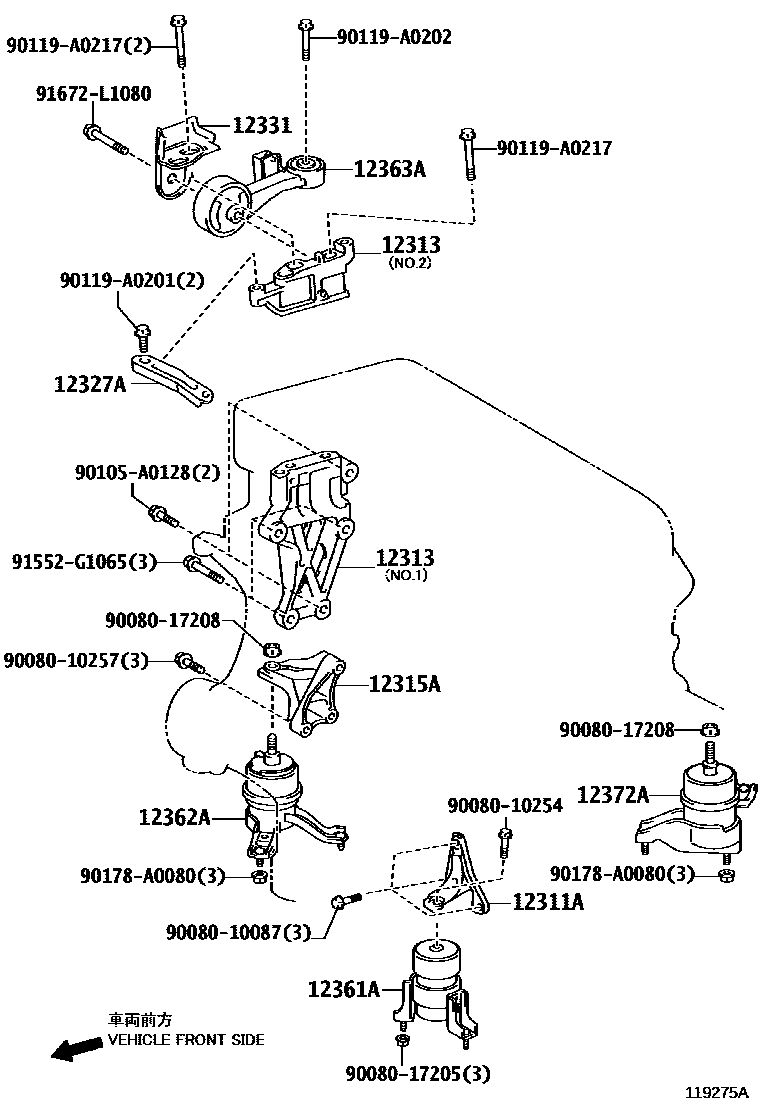

Toyota CAMRY Engine Mounting — Figure 1107
Toyota CAMRY EPC diagram 1107, Engine Mounting, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0V170 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0V040 · 12313-0V110 · 12313-36010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12319-0V020 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0V050 |
| 12331 | Engine No. 3 right side mounting bracket | 12331-0V030 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0V060 |
| 12362A | Engine left front mounting vibration isolation pad | 12362-0V060 |
| 12363A | Engine movement control lever | 12363-0V070 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0V020 |
