Toyota CAMRY Cylinder Block — Figure 1105

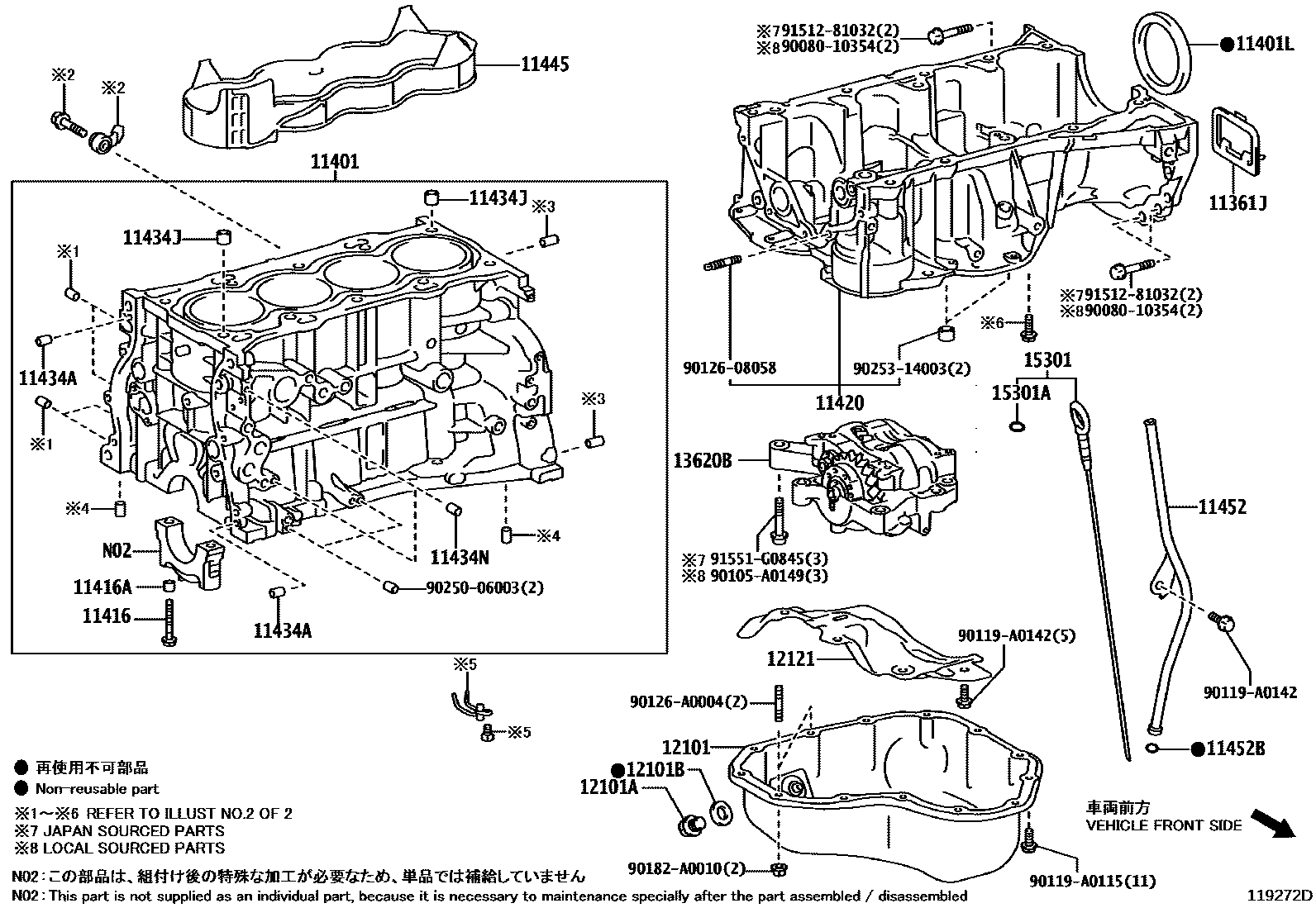

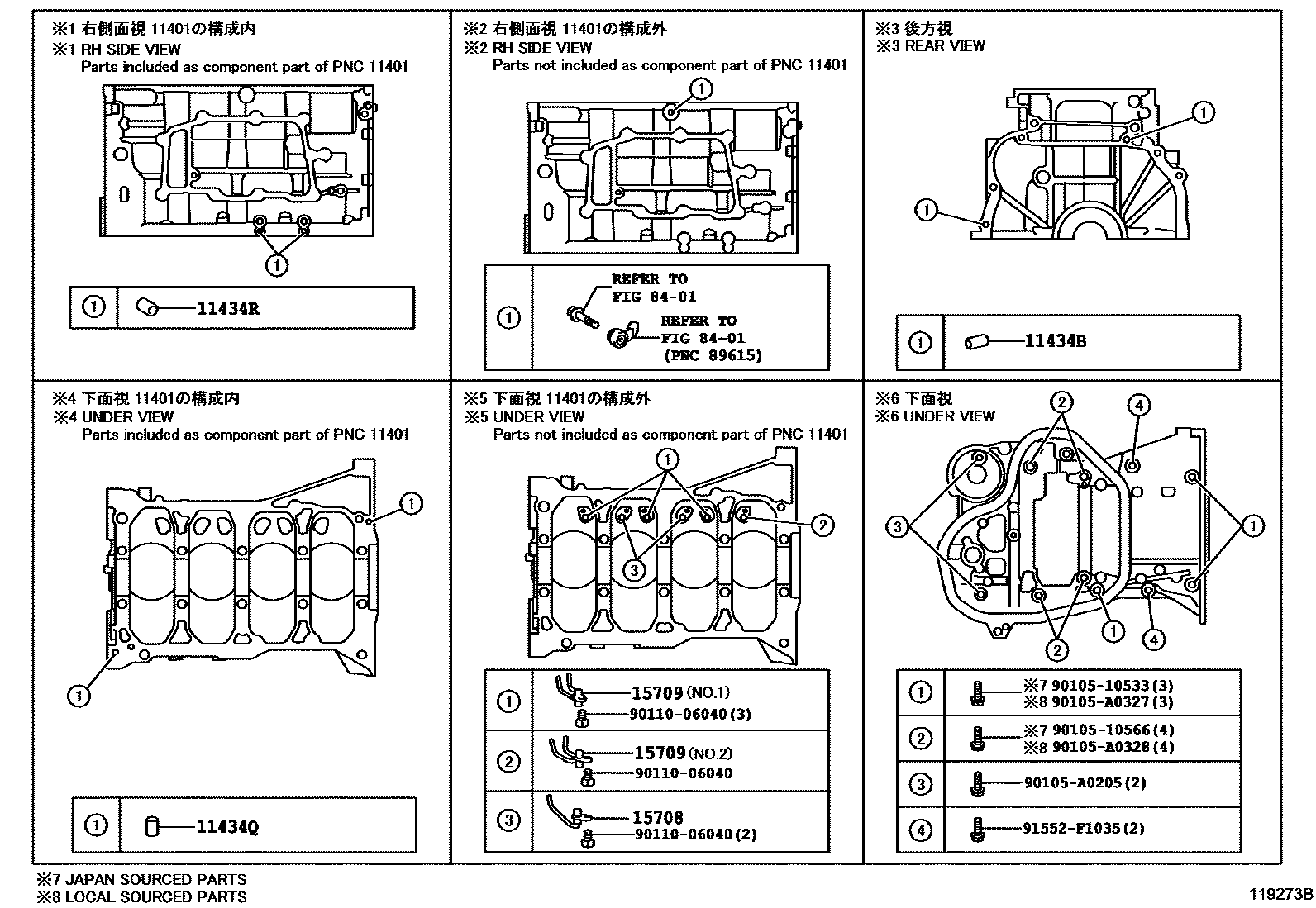

Toyota CAMRY EPC diagram 1105, Cylinder Block, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0H020 · 11361-28010 |
| 11401 | Cylinder block sub-assembly | 11410-09396 · 11410-39126 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-A0020 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-A2008 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | 90253-13017 |
| 11420 | Reinforce crankcase assembly | 11420-0V010 · 11420-36020 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06003 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-15001 |
| 11434N | Direct sales (for water inlet housing) | 90250-06003 |
| 11434Q | Direct sales (for crankcase) | 90250-06003 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11445 | Cylinder block water jacket spacer | 11445-0V010 |
| 11452 | Engine oil level gauge guide | 11452-0V010 |
| 11452B | O-ring (for oil level gauge guide) | 96741-19010 |
| 12101 | Oil pan sub-assembly | 12101-0V010 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12121 | No. 1 oil pan baffle | 12121-0V010 |
| 13620B | Engine balancer assembly | 13620-0V021 · 13620-36020 |
| 15301 | Engine oil level scoring assembly | 15301-0V020 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-36010 |
| 15709 | No. 2 oil nozzle sub-assembly | 15709-36010 · 15709-36020 |
