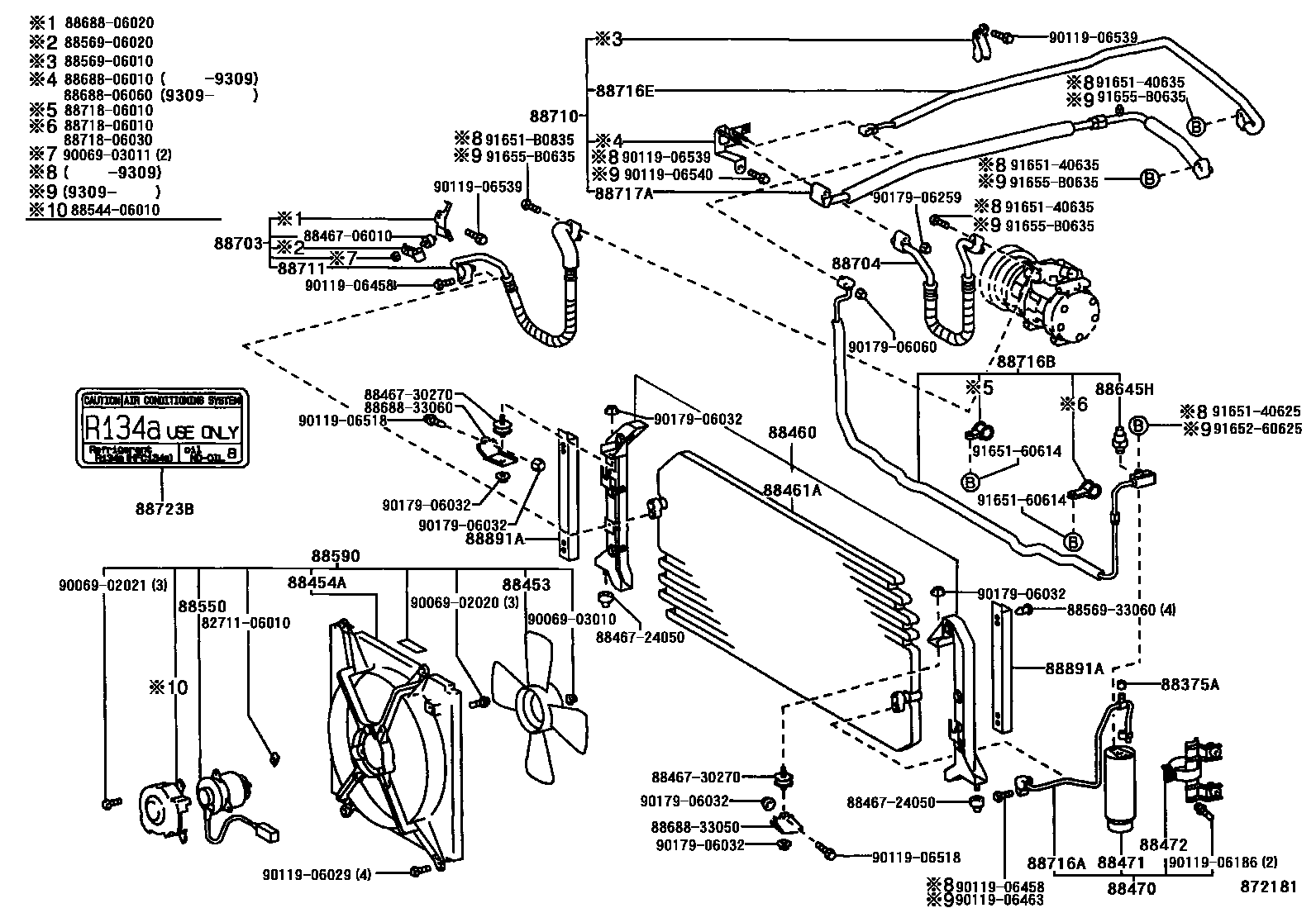

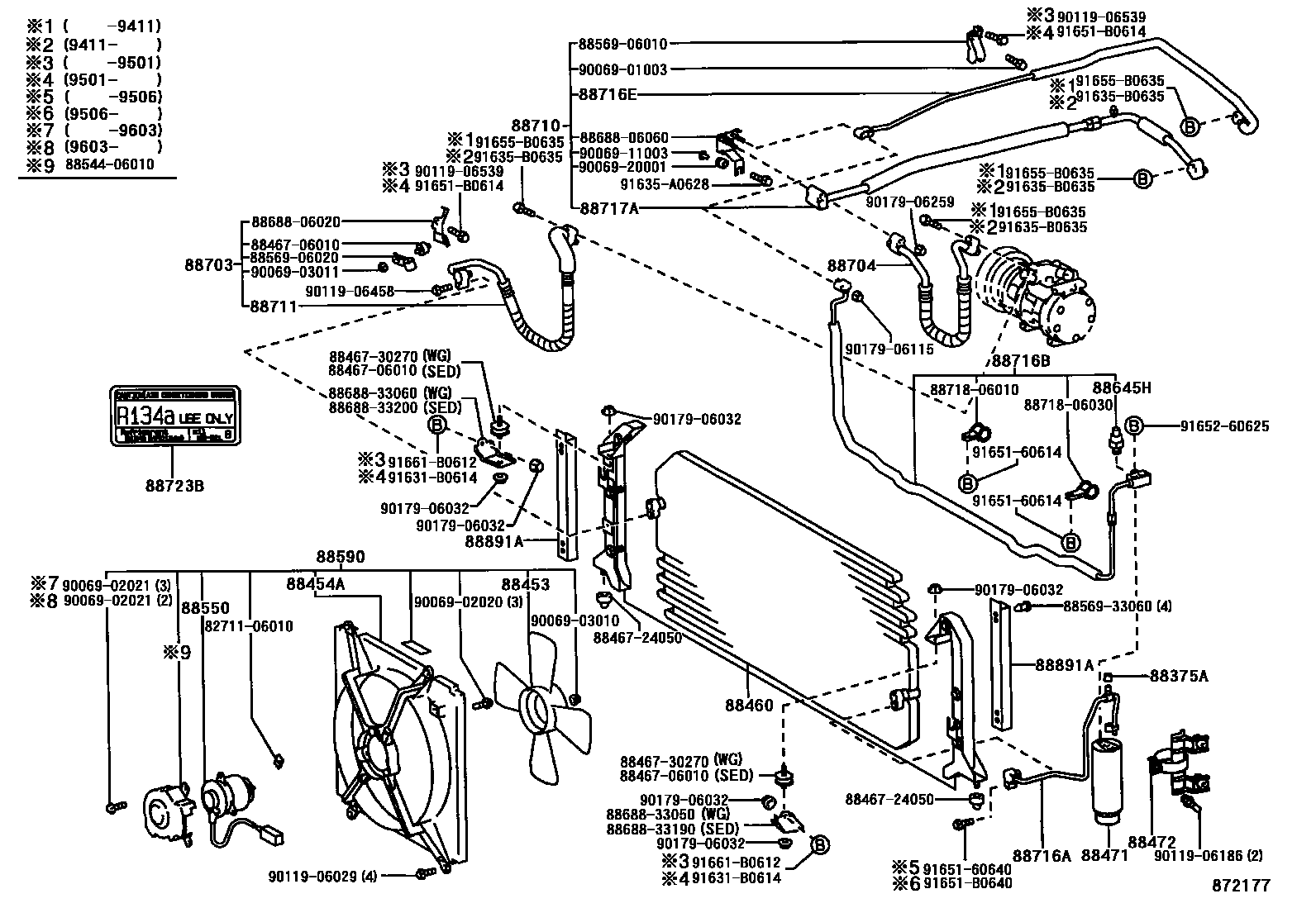

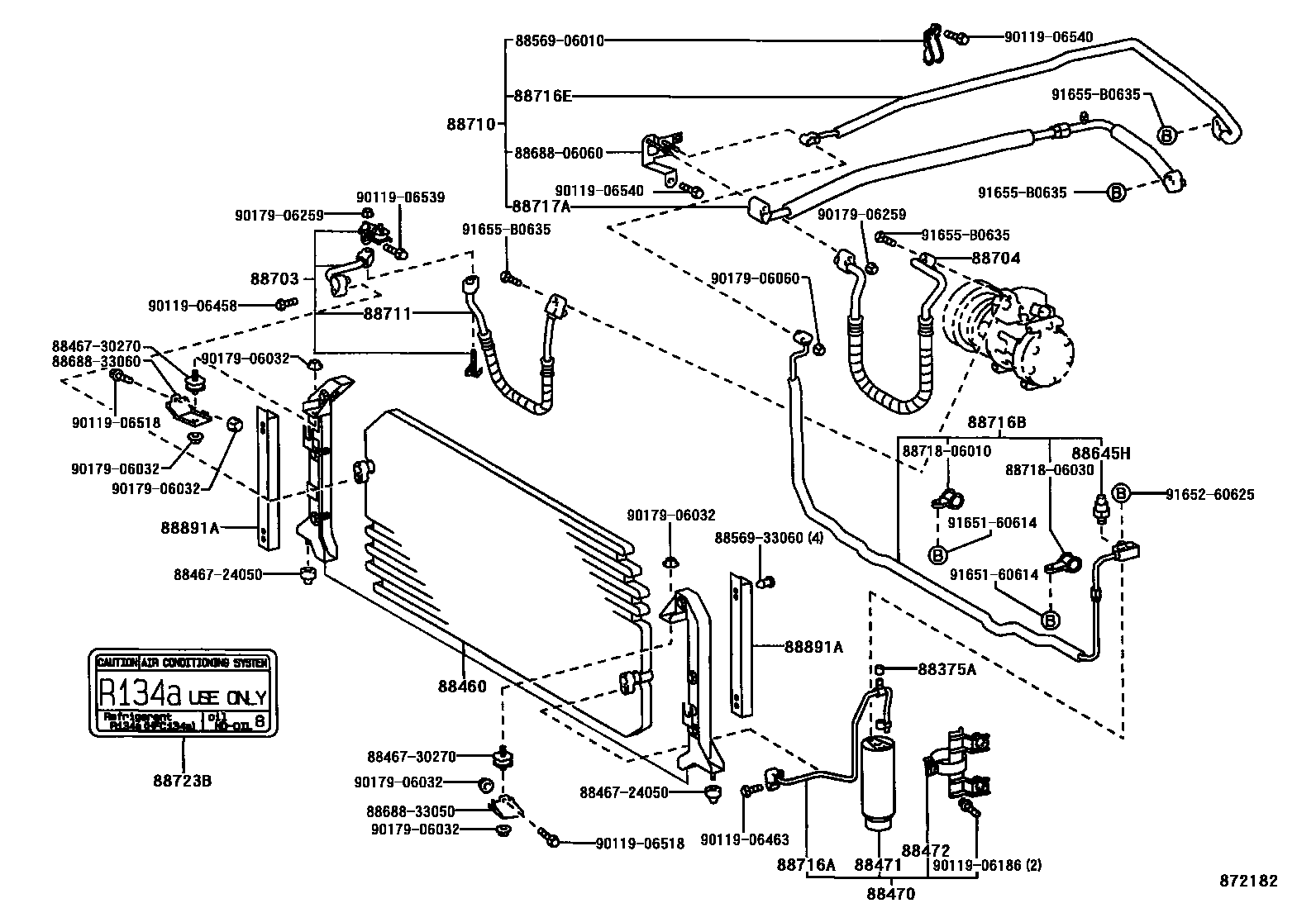

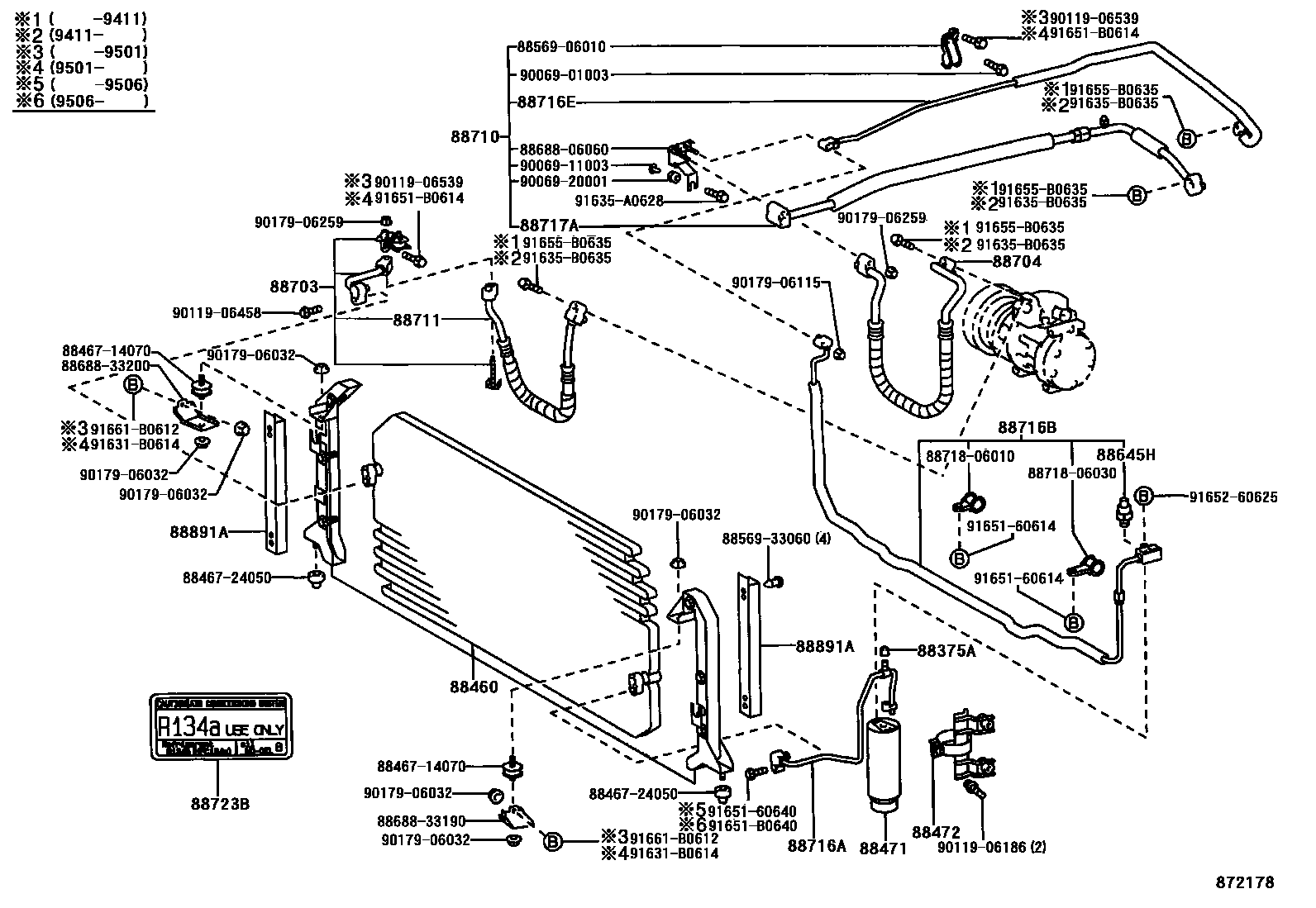

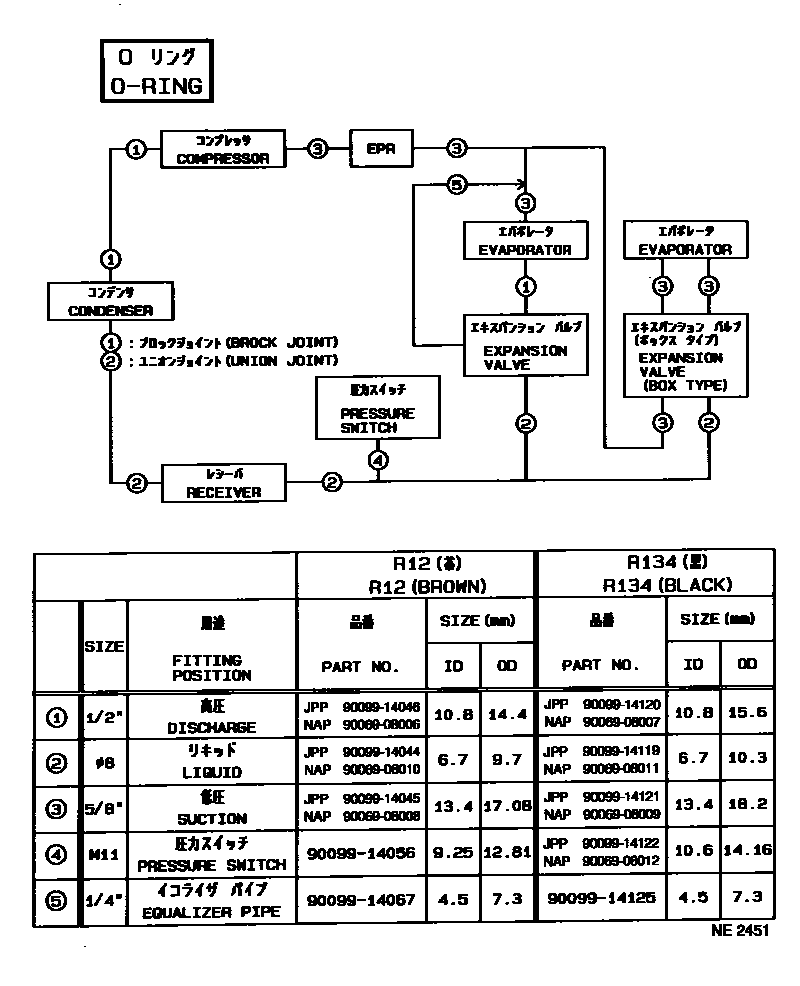

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-02020 · 88375-20010 |
| 88453 | Cooling fan (for condenser) | 88453-06010 |
| 88454A | fan cover | 88454-06010 |
| 88460 | Air conditioning condenser assembly | 88460-06010 · 88460-06040 · 88460-33040 |
| 88461A | Air conditioning condenser core | 88461-06010 |
| 88470 | Cooler reservoir and dryer assembly | 88470-06010 · 88470-06020 |
| 88471 | Air conditioning fluid storage tank | 88471-06010 · 88471-06020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-06010 · 88473-06020 · 88473-33040 |
| 88550 | Blower motor assembly (for condenser) | 88550-06010 |
| 88590 | Blower assembly with hood | 88590-06010 · 88590-06020 |
| 88645H | No. 1 pressure switch | 88645-06010 · 88645-06020 |
| 88703 | Discharge hose sub-assembly | 88703-06011 · 88703-06030 · 88703-06050 |
| 88704 | Oil suction hose sub-assembly | 88704-06011 · 88704-06030 · 88704-06050 |
| 88710 | Air conditioning pipe assembly | 88710-06020 · 88710-06030 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06010 · 88711-06030 · 88711-06060 · 88711-06061 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-06030 · 88716-06040 · 88716-07020 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-06010 · 88716-06060 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-06020 · 88716-06050 |
| 88717A | Cooler refrigerant suction pipe A | 88717-06010 · 88717-06020 |
| 88723B | Cooler maintenance warning label | 88723-14010 |
| 88891A | Seal A (for cooler) | 88578-33010 |
