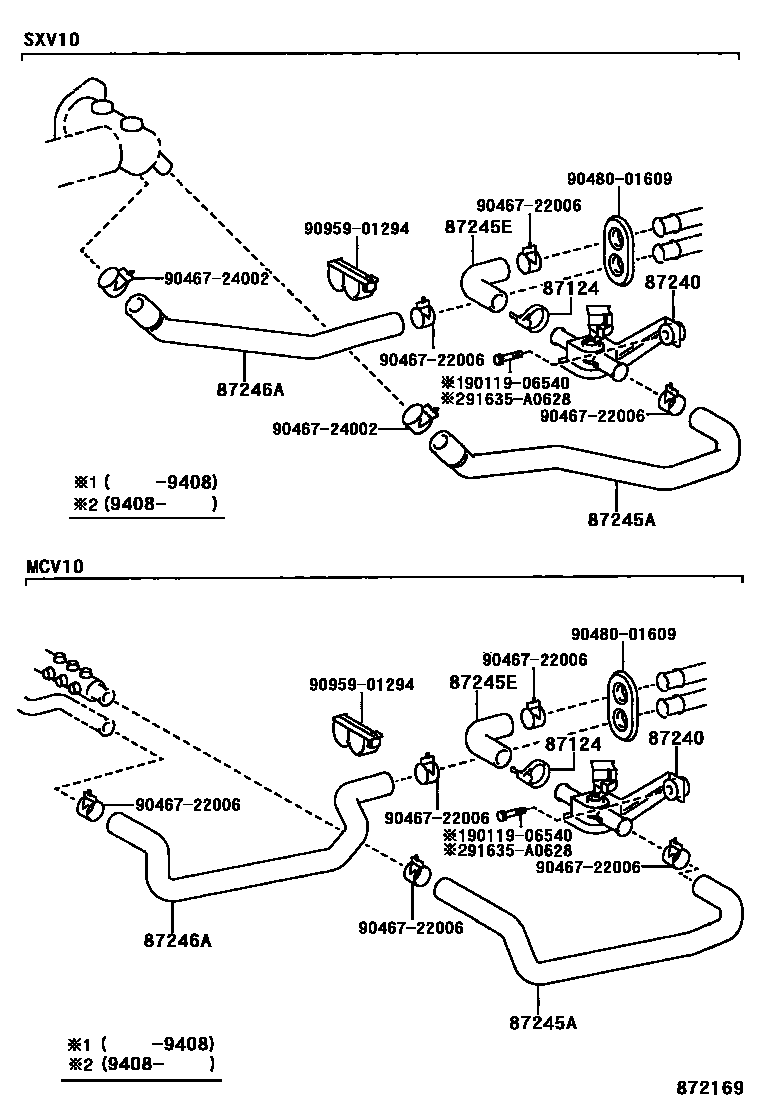

Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716
Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124 | heater clip | 87124-28030 · 90467-22004 · 90467-22006 |
| 87240 | Heater water valve assembly | 87240-06010 |
| 87245A | Heater water inlet hose A | 87245-06030 · 87245-06060 |
| 87245E | Heater water inlet hose E | 87245-06050 |
| 87246A | Heater outlet hose A | 87245-06040 · 87245-06070 |
