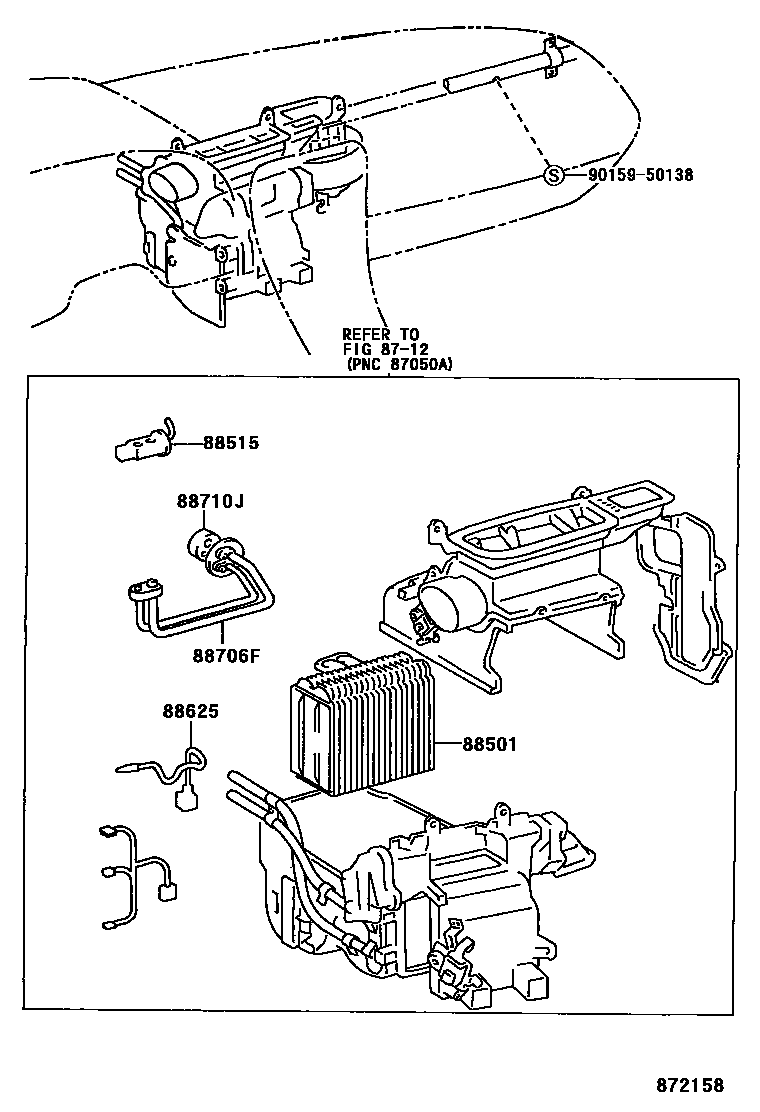

Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06010 · 88501-06020 · 88501-06021 |
| 88515 | Cooler expansion valve | 88515-06020 · 88515-06030 |
| 88625 | Cooler No. 1 Thermistor | 88625-06010 |
| 88706F | Liquid pipe F sub-assembly | 88716-33140 |
| 88710J | air conditioning connector tube | 88710-33090 |
