Toyota CAMRY 扬声器 — Figure 8602

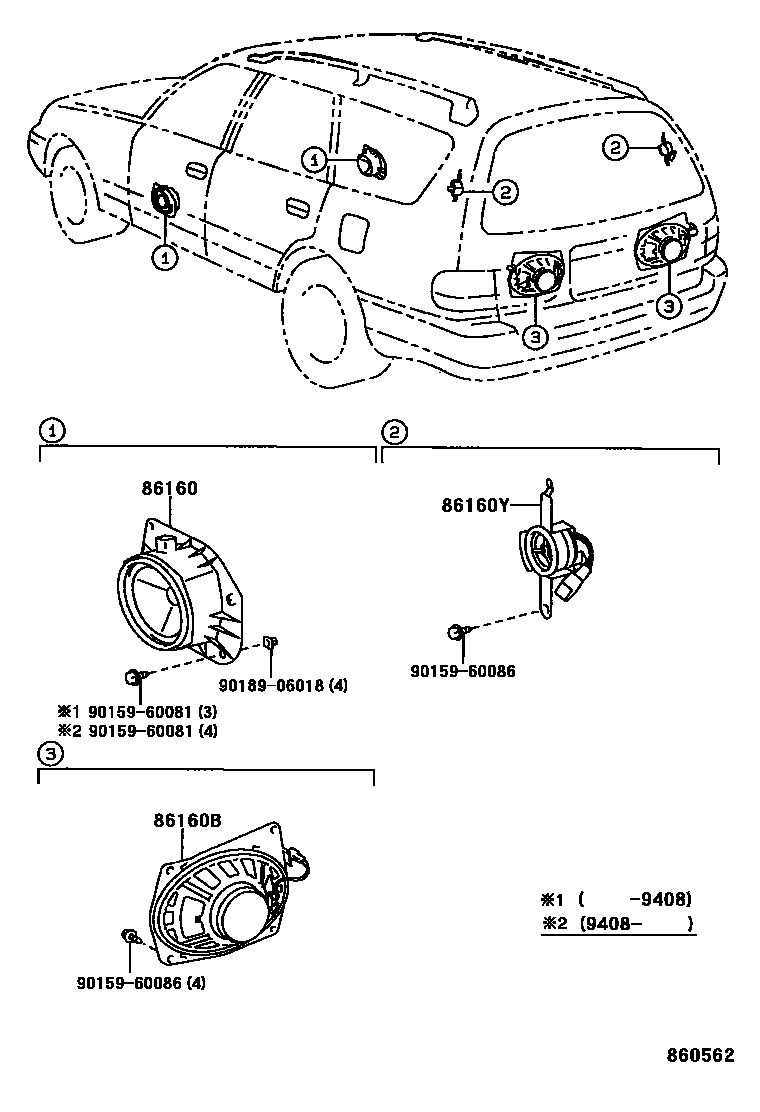

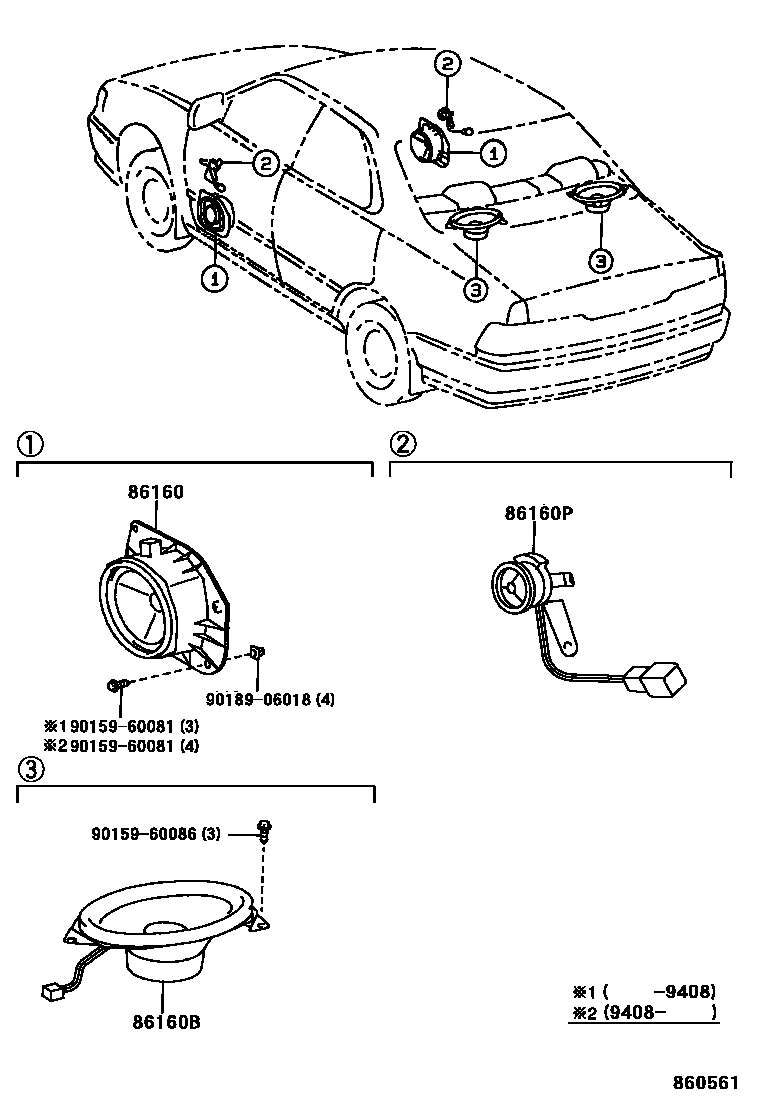

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-06010 · 86160-06020 · 86160-06070 · 86160-06080 |
| 86160B | Rear speaker assembly | 86160-06091 · 86160-06101 · 86160-06110 · 86160-06120 |
| 86160P | No. 2 front speaker assembly | 86160-06050 · 86160-06060 |
| 86160Y | No. 2 rear speaker assembly | 86160-06130 · 86160-06140 |
