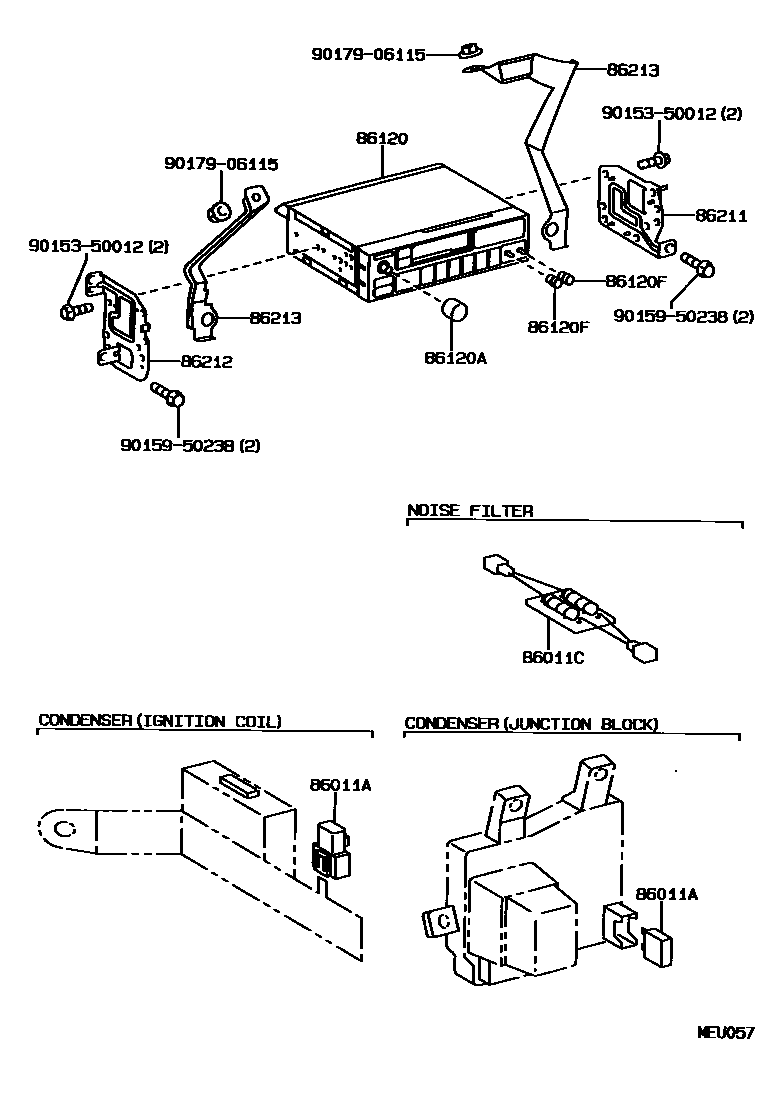

Toyota CAMRY 收音机、放大器和冷凝器 — Figure 8601
Toyota CAMRY EPC diagram 8601, 收音机、放大器和冷凝器, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04066 · 90980-04083 |
| 86011C | Noise filter | 90980-05190 · 90980-05223 |
| 86120 | Radio assembly | 86120-17310 · 86120-2A180 · 86120-2A190 |
| 86120A | Radio switch knob | 86128-17310 |
| 86120F | Radio auxiliary volume knob | 86128-17330 |
| 86211 | No. 1 radio bracket | 86211-06010 |
| 86212 | No. 2 radio bracket | 86212-06010 |
| 86213 | No. 3 radio bracket | 86213-33010 · 86213-33020 · 86213-33021 |
